Cisco Catalyst C9300L-24P-4X-E Catalyst 9300L 24-Port PoE+ 4X10G Uplinks Network Essentials Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9300L-24P-4X-E
-
24 × Gigabit PoE+ Ports (740 W Budget) – Powers access points, IP phones, and cameras with up to 30 W per port for flexible edge-device deployment.
-
4 × 10 Gbps SFP+ Uplink Ports – High‑speed fiber uplinks ensure seamless aggregation and low‑latency connectivity to distribution or core layers.
-
Network Essentials License – Includes core Layer 2 features (VLANs, STP, EtherChannel), Basic Security (DHCP Snooping, Dynamic ARP Inspection), and QoS for reliable, segmented traffic flows.
-
Energy‑Efficient Design – Smart fan control, front‑to‑back airflow, and modular power supplies optimize cooling and reduce OPEX while maintaining enterprise‑grade reliability.
-
Case Material Plastic
PRODUCT OVERVIEW

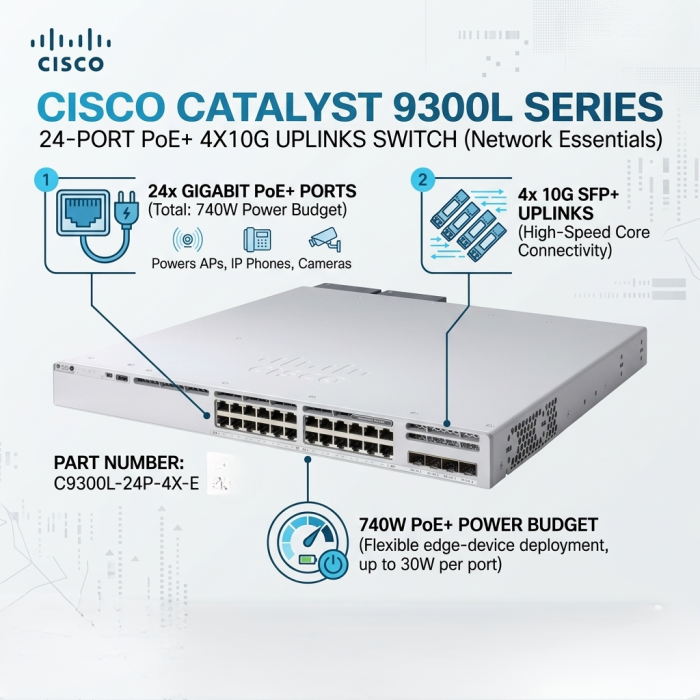

Cisco Catalyst C9300L-24P-4X-E Catalyst 9300L 24-Port PoE+ 4X10G Uplinks Network Essentials Switch
The Cisco Catalyst C9300L-24P-4X-E is an enterprise-class Layer 3 managed switch designed to deliver secure, high-performance, and scalable networking for modern business environments. Equipped with 24 Gigabit Ethernet PoE+ ports and 4 fixed 10G SFP+ uplink ports, it provides reliable wired connectivity while powering IP phones, wireless access points, IP cameras, and other PoE-enabled devices. With the Cisco Network Essentials license, this switch offers essential Layer 2 and Layer 3 networking capabilities, making it an ideal solution for enterprise campuses, branch offices, healthcare, education, retail, and government organizations.
Powered by Cisco IOS XE and the Cisco UADP ASIC 2.0 architecture, the C9300L-24P-4X-E delivers advanced security, automation, and simplified network management. It supports enterprise features such as VLANs, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 802.1X authentication, IPv4/IPv6 routing, DHCP Snooping, Dynamic ARP Inspection, and Software-Defined Access (SD-Access), ensuring secure and optimized network performance for mission-critical applications.
The switch features 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, supplying up to 30W of power per port to connected devices. Its 4 fixed 1G/10G SFP+ uplink ports provide high-speed fiber connectivity for aggregation and backbone connections, reducing network bottlenecks and improving overall throughput. With a 448 Gbps switching capacity and 333.33 Mpps forwarding rate, the switch delivers exceptional performance for high-density enterprise deployments.
For improved resiliency and simplified administration, the Cisco Catalyst C9300L-24P-4X-E supports Cisco StackWise-320 technology, enabling multiple switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth. Combined with 8 GB DRAM and 16 GB Flash memory, the switch offers excellent scalability and supports future network expansion without compromising performance.
The Cisco Catalyst C9300L-24P-4X-E is an ideal choice for organizations seeking a secure, reliable, and future-ready access switch. Its combination of enterprise-grade PoE+, high-speed 10G uplinks, advanced Layer 3 capabilities, and Cisco IOS XE makes it suitable for digital transformation initiatives, cloud applications, unified communications, and high-performance enterprise networking.
Key Features
-
24 × Gigabit Ethernet PoE+ RJ-45 ports
-
4 × Fixed 1G/10G SFP+ uplink ports
-
Cisco Network Essentials software license
-
Cisco IOS XE operating system
-
Cisco UADP ASIC 2.0 architecture
-
Advanced Layer 2 and Layer 3 switching
-
448 Gbps switching capacity
-
333.33 Mpps forwarding rate
-
Cisco StackWise-320 stacking support
-
Up to 30W PoE+ output per port
-
8 GB DRAM and 16 GB Flash memory
-
Advanced security with VLAN, QoS, ACL, IEEE 802.1X, DHCP Snooping, and IPv4/IPv6 routing
-
Ideal for enterprise campuses, branch offices, healthcare, education, retail, and government deployments
| Product Name | Cisco Catalyst C9300L-24P-4X-E Catalyst 9300L 24-Port PoE+ 4X10G Uplinks Network Essentials Switch |
|---|---|
| Weight | 4.350000 |
| Switching Capacity | 448 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 24 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 4 × 1G/10G SFP+ Fixed Uplink Ports |
| Ethernet | 24 × Gigabit Ethernet PoE+ Ports (Up to 30W per port) |
| I/O Port | 24 × RJ-45 Gigabit PoE+ Ports, 4 × 1G/10G SFP+ Uplink Ports, 1 × RJ-45 Console Port, 1 × USB Type-C Console Port, 1 × USB 3.0 Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | x86 Quad-Core Processor |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IPv4/IPv6, Layer 2 & Layer 3 Switching |
| Dimensions | 4.4 × 44.5 × 28.8 cm |
| Operating Temperature | 0°C to 45°C |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
