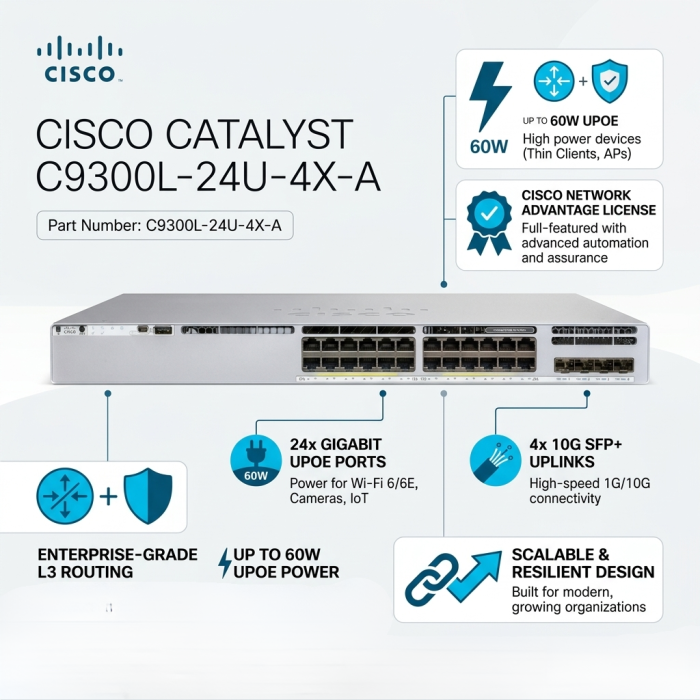

Cisco Catalyst C9300L-24U-4X-A 24-Port Gigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage

PRODUCT OVERVIEW

Cisco Catalyst C9300L-24U-4X-A 24-Port UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage

The Cisco Catalyst C9300L-24U-4X-A is an enterprise-grade Layer 3 managed switch built to provide secure, scalable, and high-performance networking for modern organizations. Equipped with 24 Gigabit Ethernet Universal Power over Ethernet (UPOE) ports and 4 fixed 1G/10G SFP+ uplink ports, it delivers reliable wired connectivity while supplying up to 60W of power per port for high-powered network devices such as Wi-Fi 6/6E access points, IP surveillance cameras, VoIP phones, digital signage, thin clients, and IoT devices. With the Cisco Network Advantage license, the switch offers advanced Layer 3 routing, automation, and enterprise-class security for mission-critical business environments.

Powered by Cisco IOS XE and Cisco's UADP ASIC 2.0 architecture, the C9300L-24U-4X-A provides intelligent automation, simplified management, and comprehensive security. It supports advanced networking features including OSPF, EIGRP, BGP, VLANs, Quality of Service (QoS), Access Control Lists (ACLs), MACsec encryption, IEEE 802.1X authentication, Flexible NetFlow, IPv4/IPv6 routing, and Software-Defined Access (SD-Access), enabling organizations to deploy secure and highly available enterprise networks.

The switch features 24 × 10/100/1000 Mbps Gigabit UPOE ports, each capable of delivering up to 60W of power to connected devices, eliminating the need for separate power supplies. Its 4 fixed 1G/10G SFP+ uplink ports provide high-speed fiber connectivity to aggregation and core network layers, ensuring low latency and maximum throughput for bandwidth-intensive applications. With a 448 Gbps switching capacity and 333.33 Mpps forwarding rate, the switch is optimized for high-density enterprise deployments and demanding workloads.

For enhanced resiliency and simplified administration, the Cisco Catalyst C9300L-24U-4X-A supports Cisco StackWise-320 technology, allowing multiple switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth. Equipped with 8 GB DRAM and 16 GB Flash memory, it delivers the scalability and performance needed for expanding enterprise infrastructures while reducing operational complexity.

The Cisco Catalyst C9300L-24U-4X-A is an ideal networking solution for enterprise campuses, healthcare facilities, educational institutions, hospitality, retail, manufacturing, government organizations, and branch offices. Combining Universal PoE, advanced Layer 3 networking, enterprise-class security, and high-speed 10G fiber uplinks, it provides a future-ready platform for digital transformation, cloud applications, unified communications, and next-generation enterprise networking.

Key Features

• 24 × Gigabit Ethernet Universal PoE (UPOE) ports

• Up to 60W power delivery per port

• 4 × Fixed 1G/10G SFP+ fiber uplink ports

• Cisco Network Advantage software license

• Cisco IOS XE operating system

• Cisco UADP ASIC 2.0 architecture

• Advanced Layer 2 and Layer 3 switching and routing

• 448 Gbps switching capacity

• 333.33 Mpps forwarding rate

• Cisco StackWise-320 stacking support

• 8 GB DRAM and 16 GB Flash memory

• Enterprise security with MACsec, ACLs, IEEE 802.1X, QoS, Flexible NetFlow, and IPv4/IPv6 routing

• Ideal for enterprise campuses, branch offices, Wi-Fi 6/6E deployments, IP surveillance, digital signage, healthcare, education, retail, and government networks

Technical Specifications

• Model: C9300L-24U-4X-A

• Ethernet Ports: 24 × Gigabit Ethernet UPOE

• Uplink Ports: 4 × Fixed 1G/10G SFP+

• Power over Ethernet: Cisco Universal PoE (Up to 60W per port)

• Operating System: Cisco IOS XE

• License: Cisco Network Advantage

• CPU: Cisco UADP ASIC 2.0

• Memory: 8 GB DRAM

• Flash Memory: 16 GB

• Switching Capacity: 448 Gbps

• Forwarding Rate: 333.33 Mpps

• Stacking: Cisco StackWise-320

• Power Supply: 715W AC

• Weight: 4.35 kg (9.59 lb)
