Cisco Catalyst C9300L-24UXG-4X-A 24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-24UXG-4X-A
-
24-port Layer 3 managed switch with 8 Multigigabit and 16 Gigabit UPOE RJ-45 ports.
-
4 fixed 1G/10G SFP+ uplink ports for high-speed fiber connectivity.
-
Cisco IOS XE with Network Advantage for advanced routing and security.
-
592 Gbps switching capacity, 440.47 Mpps forwarding rate, and StackWise-320 support.
.
PRODUCT OVERVIEW

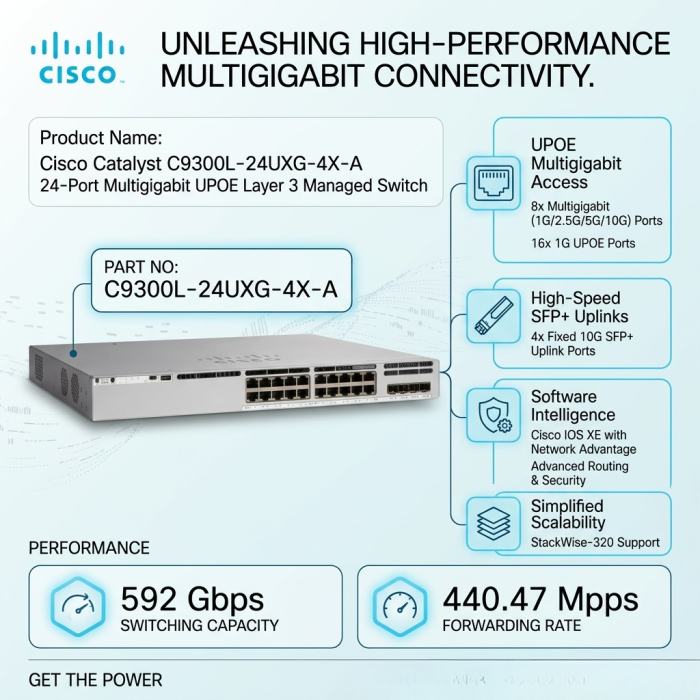

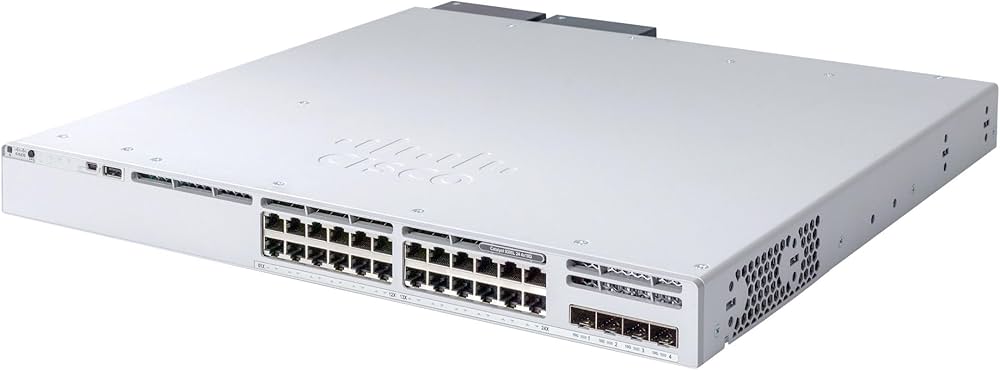

Cisco Catalyst C9300L-24UXG-4X-A
24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks & Network Advantage
The Cisco Catalyst C9300L-24UXG-4X-A is a next-generation enterprise access switch engineered for organizations that demand high-speed connectivity, intelligent automation, and enterprise-class security. Featuring 24 Universal Power over Ethernet (UPOE) ports, including 8 Multigigabit (100M/1G/2.5G/5G/10G) ports and 16 Gigabit Ethernet ports, it delivers exceptional performance for Wi-Fi 6/6E/7 deployments, IP surveillance, VoIP, digital signage, and mission-critical business applications.
Enterprise Performance
Powered by Cisco IOS XE and the advanced Cisco UADP ASIC 2.0 architecture, the switch delivers an impressive 592 Gbps switching capacity with a forwarding rate of 440.47 Mpps. Four fixed 10G SFP+ uplinks ensure high-speed backbone connectivity, while each UPOE port supplies up to 60W of power to connected devices using a single Ethernet cable.
Built for Enterprise Growth
Supporting Cisco StackWise-320 technology with up to 320 Gbps stacking bandwidth, the C9300L-24UXG-4X-A allows multiple switches to operate as a single logical unit for simplified management and increased resiliency. Equipped with 8 GB DRAM, 16 GB Flash, and an integrated 1100W AC power supply, it is designed to handle today's workloads while remaining ready for future expansion.
Next-generation wireless
Designed for organizations deploying next-generation wireless networks and high-bandwidth applications, the Cisco Catalyst C9300L-24UXG-4X-A delivers multigigabit performance, Universal PoE, enterprise security, and advanced routing in a scalable and future-ready platform suitable for education, healthcare, government, manufacturing, hospitality, and corporate campuses.
| Product Name | Cisco Catalyst C9300L-24UXG-4X-A 24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage |
|---|---|
| Weight | 4.350000 |
| Switching Capacity | 592 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 24 Ports (8 × Multigigabit 100M/1G/2.5G/5G/10G + 16 × 10M/100M/1G UPOE RJ-45), 4 × 1G/10G SFP+ Fixed Uplink Ports |
| Ethernet | 24 × UPOE RJ-45 Ports (Up to 60W per Port) |
| I/O Port | 24 × RJ-45 UPOE Ports, 4 × 1G/10G SFP+ Uplink Ports, 1 × RJ-45 Console Port, 1 × USB Type-C Console Port, 1 × USB 3.0 Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco Unified Access Data Plane (UADP) ASIC 2.0 |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz (Multigigabit), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, Cisco UPOE, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IPv4/IPv6, Layer 2 & Layer 3 Switching |
| Dimensions | 4.4 × 44.5 × 28.8 cm |
| Power Supply | 1100W AC Power Supply |
| Operating Temperature | 0°C to 45°C |
| Max. Power Consumption | 1100W |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
