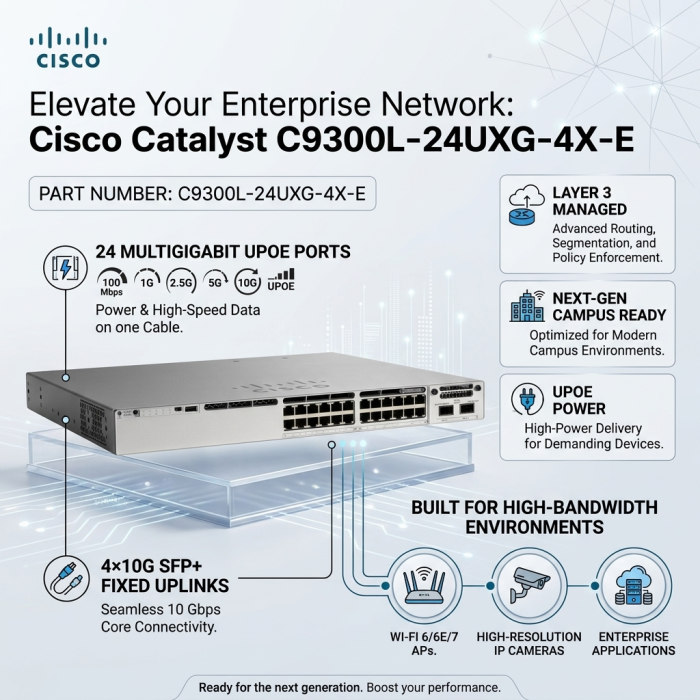

Cisco Catalyst C9300L-24UXG-4X-E 24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Essentials
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-24UXG-4X-E
The Cisco Catalyst C9300L-24UXG-4X-E is a high-performance enterprise Layer 3 managed switch engineered for next-generation campus networks. It features 24 Multigigabit UPOE ports supporting speeds from 100 Mbps to 10 Gbps and 4 fixed 1G/10G SFP+ uplink ports, making it ideal for high-bandwidth environments using Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 access points, high-resolution IP cameras, and bandwidth-intensive enterprise applications.
PRODUCT OVERVIEW
Cisco Catalyst C9300L-24UXG-4X-E 24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Essentials
The Cisco Catalyst C9300L-24UXG-4X-E is a high-performance enterprise Layer 3 managed switch engineered for next-generation campus networks. It features 24 Multigigabit UPOE ports supporting speeds from 100 Mbps to 10 Gbps and 4 fixed 1G/10G SFP+ uplink ports, making it ideal for high-bandwidth environments using Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 access points, high-resolution IP cameras, and bandwidth-intensive enterprise applications.
Powered by Cisco IOS XE with the Network Essentials license, the switch provides enterprise-class Layer 2 switching and essential Layer 3 routing, combined with advanced security, automation, and simplified management. Built on the Cisco UADP ASIC 2.0 architecture, it delivers 688 Gbps switching capacity and 511.90 Mpps forwarding performance, ensuring reliable, low-latency operation in demanding network environments.
Each of the 24 Multigigabit RJ-45 ports supports Cisco Universal Power over Ethernet (UPOE) with up to 60W per port, allowing a single Ethernet cable to provide both data connectivity and power to compatible devices. The 4 fixed 10G SFP+ uplink ports enable high-speed fiber connections to aggregation and core switches for seamless enterprise deployment.
The switch supports Cisco StackWise-320 technology, allowing multiple compatible switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth. Equipped with 8 GB DRAM and 16 GB Flash memory, it offers outstanding scalability, resiliency, and simplified network administration.
Designed for enterprise campuses, education, healthcare, retail, hospitality, manufacturing, and government organizations, the Cisco Catalyst C9300L-24UXG-4X-E delivers secure Multigigabit connectivity, Universal PoE, advanced Cisco IOS XE capabilities, and high-speed 10G fiber uplinks, making it an ideal foundation for future-ready enterprise networks.
| Product Name | Cisco Catalyst C9300L-24UXG-4X-E 24-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Essentials |
|---|---|
| Weight | 4.350000 |
| Switching Capacity | 688 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 24 × Multigigabit (100M/1G/2.5G/5G/10G) UPOE RJ-45 Ports, 4 × 1G/10G SFP+ Fixed Uplink Ports |
| Ethernet | 24 × Multigigabit UPOE Ports (Up to 60W per port) |
| I/O Port | 24 × RJ-45 Multigigabit UPOE Ports, 4 × 1G/10G SFP+ Uplink Ports, 1 × RJ-45 Console Port, 1 × USB Type-C Console Port, 1 × USB 3.0 Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco Unified Access Data Plane (UADP) ASIC 2.0 |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz (Multigigabit), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, Cisco UPOE, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IPv4/IPv6, Layer 2 & Layer 3 Switching |
| Dimensions | 4.4 × 44.5 × 28.8 cm |
| Power Supply | 1100W AC Power Supply |
| Operating Temperature | 0°C to 45°C |
| Max. Power Consumption | 1100W |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
