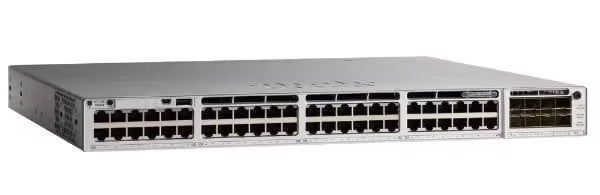

Cisco Catalyst C9300L-48T-4X-A 48-Port Business Network Switch with 10G SFP+ Fiber Uplinks, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-48T-4X-A
-
48-port Layer 3 managed switch with 48 Gigabit RJ-45 Ethernet ports.
-
4 fixed 1G/10G SFP+ uplink ports for high-speed fiber connectivity.
-
Cisco IOS XE with Network Advantage for advanced routing, security, and automation.
-
256 Gbps switching capacity, 190.47 Mpps forwarding rate, and Cisco StackWise-320 support.
PRODUCT OVERVIEW
Enterprise-Grade Performance, Scalability & Security
The Cisco Catalyst C9300L-48T-4X-A is a next-generation enterprise Layer 3 managed switch engineered to deliver exceptional performance, advanced security, and intelligent network management. Designed as part of the Cisco Catalyst 9300L Series, it features 48 Gigabit Ethernet RJ-45 ports and 4 fixed 1G/10G SFP+ uplink ports, providing reliable wired access and high-speed fiber connectivity for enterprise campuses, branch offices, and mission-critical applications.
High-Speed Enterprise Performance
Powered by Cisco IOS XE with the Network Advantage license, the switch delivers advanced Layer 3 routing, intelligent automation, and enterprise-grade security. Built on the Cisco UADP ASIC 2.0 architecture, it offers 256 Gbps switching capacity and 190.47 Mpps forwarding performance for fast, reliable connectivity across demanding business networks.
Built for Enterprise Growth
With Cisco StackWise-320 technology, up to 320 Gbps stacking bandwidth, 8 GB DRAM, and 16 GB Flash memory, the switch provides excellent scalability, simplified management, and high availability. Support for Cisco DNA Center, CLI, Web UI, SNMP, NETCONF, and RESTCONF enables complete network visibility and centralized administration.
Enterprise-Class Security
Advanced security features including IEEE 802.1X authentication, MACsec-128 encryption, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Secure Boot, and Trustworthy Systems help protect your network from unauthorized access while ensuring secure and reliable business operations.
Ideal Applications
Enterprise Campuses • Corporate Offices • Education • Healthcare • Government • Retail • Hospitality • Manufacturing • Cloud Networking • High-Speed Gigabit Access • Branch Office Deployments
```
| Product Name | Cisco Catalyst C9300L-48T-4X-A 48-Port Business Network Switch with 10G SFP+ Fiber Uplinks, Network Advantage |
|---|---|
| Weight | 4.350000 |
| CPU | Cisco UADP ASIC 2.0 |
| Switching Capacity | 256 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 48 × 10/100/1000 Gigabit RJ-45 Ports, 4 × 1G/10G SFP+ Fixed Uplink Ports |
| Ethernet | 48 × Gigabit Ethernet Ports |
| I/O Port | 48 × RJ-45 Ethernet Ports, 4 × 1G/10G SFP+ Uplink Ports, 1 × RJ-45 Console Port, 1 × USB Type-C Console Port, 1 × USB 3.0 Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IPv4, IPv6, Layer 2 & Layer 3 Switching |
| Dimensions | 4.4 × 44.5 × 40.9 cm |
| Power Supply | 350W AC Power Supply |
| Operating Temperature | 0°C to 45°C |
| Max. Power Consumption | 350W |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
