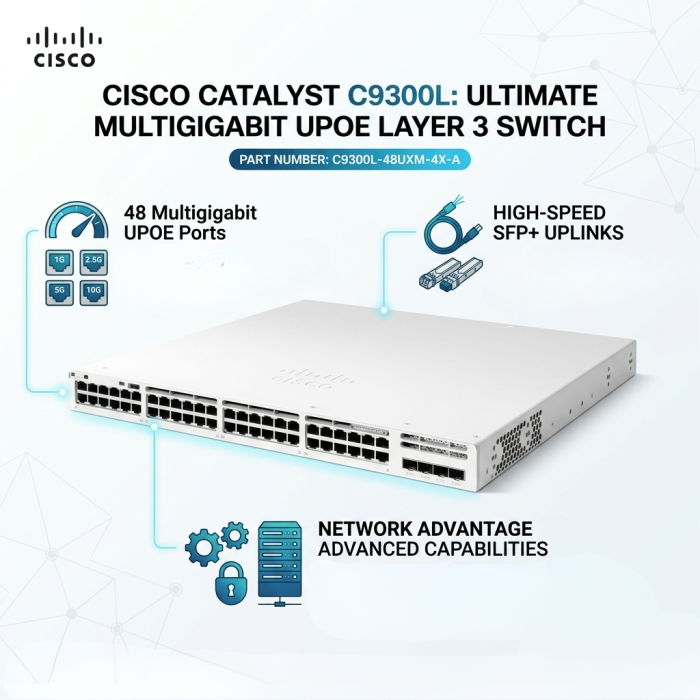

Cisco Catalyst C9300L-48UXM-4X-A 48-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-48UXM-4X-A
-
48-port Multigigabit UPOE switch with 36 standard Multigigabit ports and 12 ports supporting speeds up to 10G.
-
4 fixed 1G/10G SFP+ uplinks for high-speed fiber connectivity.
-
Cisco IOS XE with Network Advantage for advanced Layer 3 routing, automation, and security.
-
UPOE support up to 60W per port with Cisco StackWise-320 for scalable enterprise deployments.
PRODUCT OVERVIEW
High-Performance Multigigabit UPOE Networking
The Cisco Catalyst C9300L-48UXM-4X-A is a high-performance enterprise Layer 3 managed switch designed for organizations that require flexible Multigigabit connectivity, high-power UPOE, advanced routing, and secure network management. It features 48 Multigigabit UPOE Ethernet ports, including 36 ports supporting 100M/1G/2.5G and 12 Multigigabit ports supporting up to 10G. This combination makes the switch well suited for high-speed wireless access points, IP telephony, surveillance systems, digital signage, IoT devices, and other demanding network endpoints.
The switch also provides 4 fixed 1G/10G SFP+ uplink ports for high-speed fiber connectivity to aggregation and core network infrastructure. By combining Multigigabit access with 10G uplinks, the C9300L-48UXM-4X-A helps organizations support bandwidth-intensive applications while maintaining an efficient and scalable enterprise network architecture.
Advanced Enterprise Performance
Powered by Cisco IOS XE and equipped with the Network Advantage license, the C9300L-48UXM-4X-A provides advanced Layer 3 routing, network segmentation, automation, and enterprise security capabilities. Its powerful switching architecture delivers high-speed packet processing for cloud applications, video conferencing, unified communications, wireless networking, and other business-critical workloads.
Built for High-Power Multigigabit Deployments
With UPOE support of up to 60W per port, the switch can deliver both network connectivity and high-power delivery through a single Ethernet connection. This makes it an excellent platform for next-generation wireless access points, smart building equipment, high-performance IP phones, PTZ cameras, IoT devices, and digital signage. Multigigabit connectivity also allows compatible devices to operate at higher speeds without requiring a complete replacement of existing network cabling.
Scalable & Resilient Network Architecture
The Cisco Catalyst C9300L-48UXM-4X-A supports Cisco StackWise-320 technology, allowing compatible switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth. This provides simplified administration, improved resiliency, and greater scalability for growing enterprise infrastructures. The platform is designed to support organizations as their network requirements expand and new high-bandwidth devices are introduced.
Enterprise-Class Security
Security is integrated throughout the platform with technologies including IEEE 802.1X authentication, MACsec encryption, Access Control Lists (ACLs), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and Secure Boot. These capabilities help protect network resources, control device access, reduce security risks, and maintain reliable communications across enterprise environments.
Future-Ready Enterprise Networking
Combining Multigigabit Ethernet, UPOE, 10G SFP+ uplinks, advanced Layer 3 capabilities, intelligent management, and enterprise security, the Cisco Catalyst C9300L-48UXM-4X-A provides a future-ready foundation for modern digital infrastructure. It is ideal for enterprise campuses, Wi-Fi 6/6E deployments, smart buildings, healthcare facilities, education, retail, hospitality, manufacturing, corporate offices, IoT networks, surveillance, and high-density wireless environments.
Ideal Applications
Enterprise Campuses • Wi-Fi 6/6E Networks • High-Speed Wireless Access Points • IP Telephony • PTZ CCTV Cameras • Smart Buildings • IoT Networks • Digital Signage • Healthcare • Education • Retail • Hospitality • Manufacturing • Corporate Networks
| Product Name | Cisco Catalyst C9300L-48UXM-4X-A 48-Port Multigigabit UPOE Layer 3 Managed Switch with 4×10G SFP+ Uplinks, Network Advantage |
|---|---|
| Weight | 4.350000 |
| Switching Capacity | 256 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 36 × 100M/1G/2.5G + 12 × 100M/1G/2.5G/5G/10G Multigigabit UPOE |
| Ethernet | Multigigabit Ethernet UPOE |
| I/O Port | 48 × RJ-45 Multigigabit UPOE, 4 × 1G/10G SFP+ Uplinks, Console, USB-C Console, USB 3.0, Management |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP ASIC 2.0 |
| Network/Network Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3bt, 802.1Q, 802.1X, IPv4/IPv6 |
| Dimensions | 4.4 × 44.5 × 40.9 cm |
| Operating Temperature | 0°C to 45°C |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
