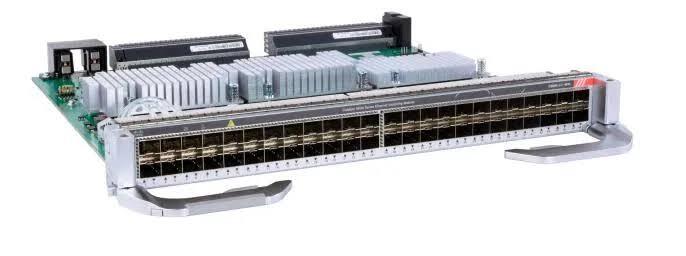

Cisco Catalyst C9600-LC-48YL 48-Port 50G/25G/10G/1G SFP56 Fiber Line Card

Product Overview

The Cisco Catalyst C9600-LC-48YL is a high-density fiber line card designed for Cisco Catalyst 9600 Series modular switches. It provides 48 high-speed SFP-based interfaces for enterprise campus core, distribution and aggregation networks.

The C9600-LC-48YL supports multiple Ethernet speeds, providing flexible connectivity for evolving enterprise infrastructures. When paired with the C9600-SUP-1, the line card supports up to 48 nonblocking 25G/10G/1G ports. When paired with the C9600X-SUP-2, it supports up to 48 nonblocking 50G/25G/10G ports.

This flexibility makes the C9600-LC-48YL suitable for high-bandwidth upstream and downstream connections where high port density and SFP-based fiber connectivity are required.

Key Features

High-Density SFP Fiber Connectivity

The C9600-LC-48YL is designed specifically for environments requiring high port density and fiber-based connectivity. Its SFP56/SFP28/SFP+ interface architecture enables organizations to deploy high-speed Ethernet connections while maintaining flexibility for different network speeds and optical requirements.

With the C9600X-SUP-2, the line card can provide 50G, 25G and 10G connectivity across its supported ports. With the C9600-SUP-1, it provides 25G, 10G and 1G connectivity.

Supervisor Engine Compatibility

Cisco Catalyst C9606R Compatibility

The C9600-LC-48YL is designed for the Cisco Catalyst C9606R modular chassis. Cisco specifies installation in chassis slots 1, 2, 5 and 6.

The modular architecture allows organizations to combine different Catalyst 9600 line cards and Supervisor Engines according to their network requirements.

Enterprise Networking Applications

Security and Network Capabilities

The C9600-LC-48YL is part of the Cisco Catalyst 9600 enterprise switching platform and operates with Cisco IOS XE through the compatible Supervisor Engine. The line card uses the platform's high-performance ASIC architecture for enterprise networking, switching and security capabilities.

Cisco documentation identifies AES-256/MACsec-256 capability on the applicable ASIC architecture; however, Cisco specifically notes that the C9600-LC-48YL does not support MACsec when paired with C9600X-SUP-2.
