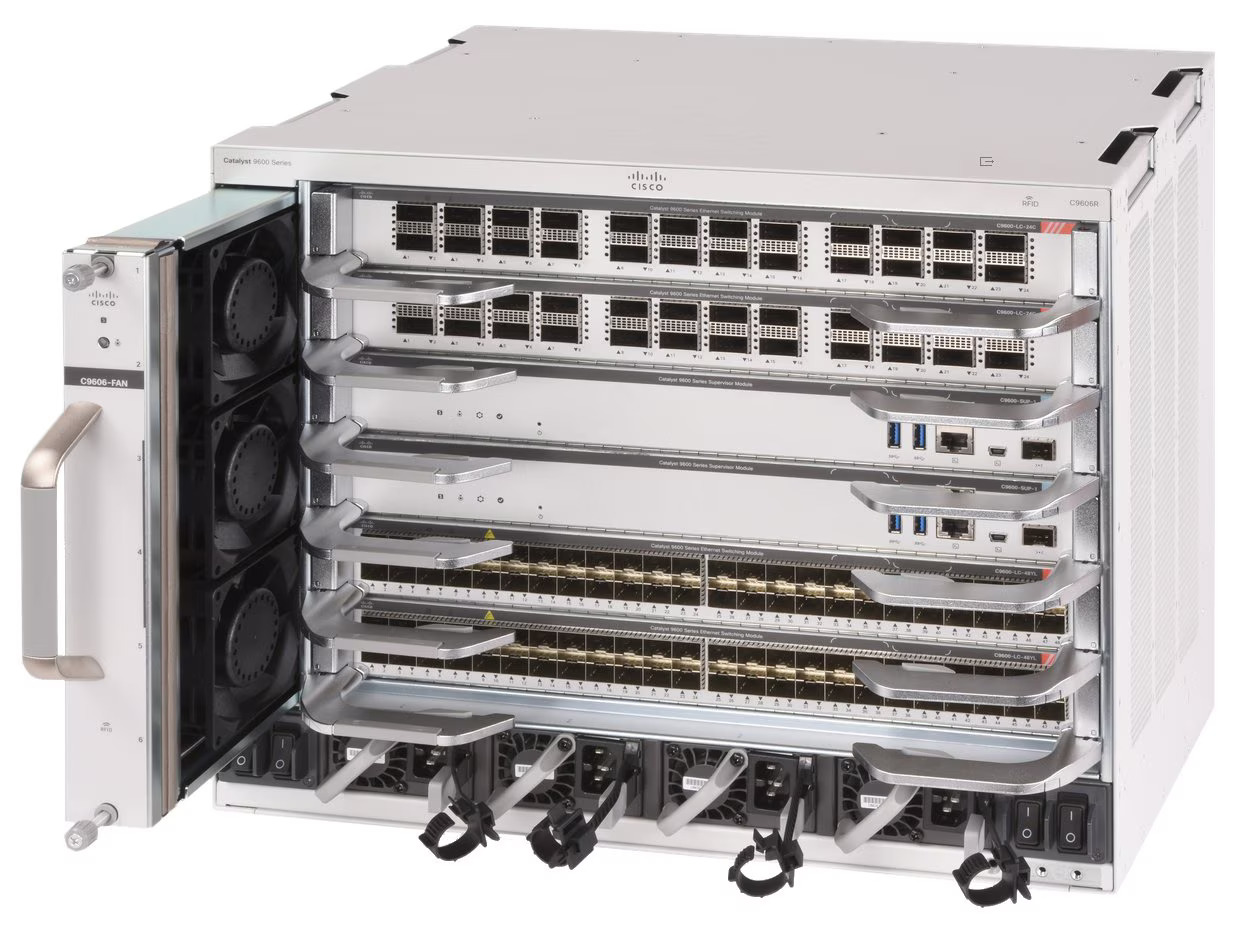

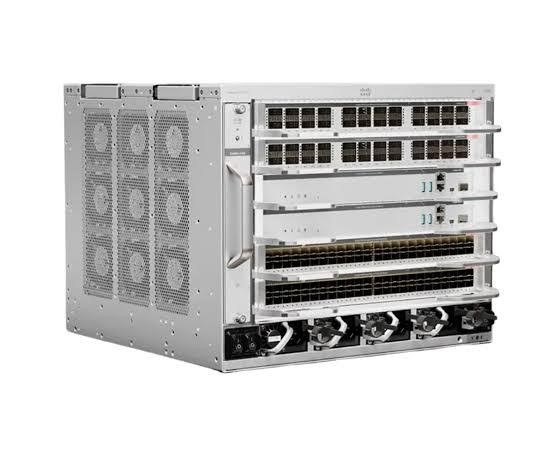

Cisco Catalyst C9606R 6-Slot Modular Enterprise Core Switch Chassis

High-Performance Modular Architecture for Enterprise Core and Distribution Networks

Cisco Catalyst C9606R Overview

The Cisco Catalyst C9606R is a high-performance modular switching chassis designed for enterprise campus core and large-scale distribution deployments. As part of the Cisco Catalyst 9600 Series, it provides a resilient and scalable platform that can be configured with different supervisor engines, network line cards, power supplies, and optics according to network requirements.

The chassis features six total slots, including four slots for modular line cards and two dedicated supervisor engine slots. This architecture allows organizations to build high-density network infrastructure supporting a wide range of Ethernet speeds, depending on the installed supervisor and line cards.

With support for up to 25.6 Tbps wired switching capacity and up to 6.4 Tbps bandwidth per slot when configured with supported high-performance supervisor technology, the C9606R provides a powerful foundation for modern enterprise networks requiring high availability, scalability, security, and advanced routing capabilities.

Key Features

Flexible Modular Architecture

The C9606R provides a modular design that allows network administrators to select components based on performance, port density, and network architecture requirements.

Supervisor Engine Options

The C9606R supports compatible Cisco Catalyst 9600 supervisor engines, allowing organizations to select the required performance level and feature set for their network deployment.

• Cisco C9600-SUP-1 Supervisor Engine support
• Cisco C9600X-SUP-2 Supervisor Engine support
• Redundant supervisor configuration support
• Stateful Switchover for improved availability
• High-speed switching fabric connectivity
• Supervisor-dependent performance and interface support

High-Performance Enterprise Switching

Scalable Network Connectivity

The C9606R chassis does not include fixed Ethernet ports. Network interfaces are provided through separately installed modular line cards. Supported connectivity depends on the selected line cards and supervisor engine.

• 1 Gigabit Ethernet
• 10 Gigabit Ethernet
• 25 Gigabit Ethernet
• 40 Gigabit Ethernet
• 50 Gigabit Ethernet
• 100 Gigabit Ethernet
• 200 Gigabit Ethernet with supported configurations
• 400 Gigabit Ethernet with supported configurations

Cisco IOS XE Operating System

The Cisco Catalyst C9606R operates with Cisco IOS XE, providing a modern enterprise networking platform for switching, routing, security, automation, telemetry, and programmability.

• Advanced Layer 2 and Layer 3 networking
• IPv4 and IPv6 routing
• BGP, OSPF, EIGRP, and IS-IS support
• Model-driven programmability
• NETCONF and RESTCONF
• YANG data models
• Streaming telemetry
• Automation and orchestration support
• Cisco Catalyst Center integration
• Zero-Touch Provisioning capabilities

Enterprise Security

The Catalyst 9600 platform is designed for secure enterprise infrastructure deployments. Security capabilities depend on the installed supervisor engine, line cards, software licensing, and configuration.

• MACsec encryption support on compatible hardware
• Advanced Access Control Lists
• Control Plane Policing
• Secure Boot
• Image signing
• Hardware-based trust architecture
• Network segmentation
• Identity-based access policies

High Availability and Resiliency

The C9606R is designed for mission-critical enterprise infrastructure where continuous network operation is essential. Its modular architecture supports redundant components and advanced software resiliency features.

Redundant Power and Cooling

The C9606R provides four modular power supply bays, allowing organizations to configure the chassis for power redundancy and the requirements of installed line cards and supervisor modules.

• 4 modular power supply bays
• Supports compatible AC power supply modules
• Supports compatible DC power supply modules
• Redundant power configurations
• Field-replaceable power modules
• Field-replaceable fan tray
• Designed for continuous enterprise operation

Ideal Applications

Cisco Catalyst C9606R

A scalable and resilient 6-slot modular chassis designed for enterprise campus core and distribution networks. With four line-card slots, redundant supervisor capability, modular power and cooling, Cisco IOS XE, and high-performance switching architecture, the C9606R provides a flexible foundation for mission-critical enterprise infrastructure.
