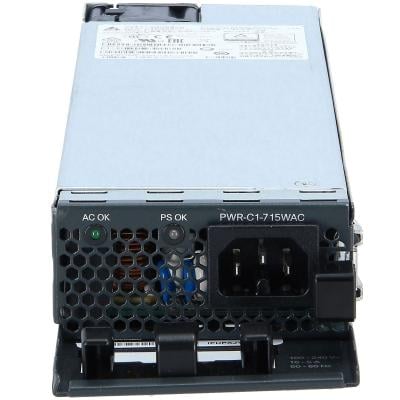

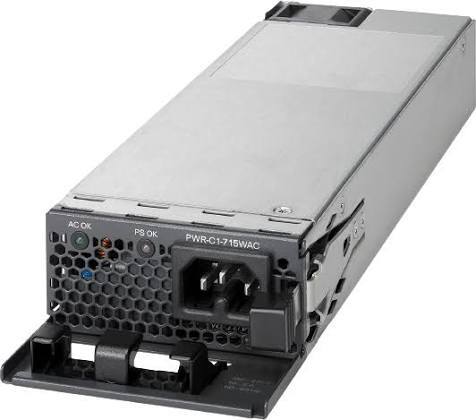

The Cisco PWR-C1-715WAC is a 715W AC power supply module designed for compatible Cisco Catalyst 9300 Series switches. It provides reliable power for enterprise switching environments and supports configurations that require greater power capacity than the standard 350W supply.

The power supply supports a wide 100–240V AC autoranging input at 50–60 Hz and delivers -56V DC at 12.8A. Its 715W capacity makes it suitable for compatible Catalyst 9300 configurations requiring additional system or PoE power. Cisco documentation identifies the PWR-C1-715WAC as a supported 715W AC power supply for the Catalyst 9300 Series.

715W

Power Output

Provides up to 715 watts of rated output power.

100–240V

AC Input

Wide-range autoranging AC input for flexible deployment.

-56V

DC Output

Rated at -56V DC and 12.8A output.

10–5A

Input Current

Cisco-rated input current range for the AC supply.

715W AC Power Delivery

The PWR-C1-715WAC provides up to 715W of power for compatible Catalyst 9300 Series switches. Its higher power capacity makes it suitable for switch configurations requiring additional system power and supported PoE/PoE+ deployments.

Wide-Range AC Input

The module accepts 100–240V AC input at 50–60 Hz, providing flexibility for enterprise installations across different electrical environments.

Power for PoE and Enterprise Deployments

The 715W power supply can be used in compatible Catalyst 9300 configurations where additional power is required. Cisco's power-supply requirements show the PWR-C1-715WAC among the supported power options for PoE and PoE+ configurations, with the exact power requirement depending on the Catalyst 9300 switch model and the number of powered ports.

Power Supply Redundancy

Compatible Catalyst 9300 switches provide two power-supply slots. Organizations can use two supported power supplies for redundancy or additional available power, depending on the switch model and deployment requirements. Cisco also supports mixing compatible power-supply types in supported Catalyst 9300 configurations.

Integrated Cooling

The PWR-C1-715WAC includes an internal fan to help manage operating temperature. Proper airflow and installation should be maintained according to Cisco Catalyst 9300 hardware installation requirements.

Ideal Applications

Enterprise Networks Campus Networks PoE Networks PoE+ Deployments Branch Offices Corporate LAN Access Layer Government Networks

Key Specifications

Model
PWR-C1-715WAC

Product Type
AC Power Supply Module

Maximum Output Power
715W

Input Voltage
100–240V AC

Frequency
50–60 Hz

Input Current
10–5A

Output Rating
-56V DC @ 12.8A

Cooling
Internal Fan

Input Receptacle
IEC 320-C16

Power Cord Rating
15A

Dimensions
1.58 × 3.25 × 12.20 in

Dimensions (Metric)
40.1 × 82.55 × 309.9 mm

Weight
Approx. 1.2 kg

Host Platform
Cisco Catalyst 9300 Series

Reliable 715W Power for Catalyst 9300

The Cisco PWR-C1-715WAC is a high-capacity 715W AC power supply module designed for compatible Catalyst 9300 Series switches. With 100–240V AC input, 715W maximum output, -56V DC at 12.8A, internal fan cooling, and support for compatible redundant power configurations, it provides a dependable power solution for enterprise switching and supported PoE/PoE+ deployments.

More Information
Product Name	Cisco Catalyst PWR-C1-715WAC 715W AC Power Supply Module for Catalyst 9300 Series Switches
Weight	1.200000
CPU	Not Applicable
Memory	Not Applicable
Interface	AC Power Input / Internal DC Output
Ethernet	IEC 320-C16 AC Input
I/O Port	IEC 320-C14 AC Input
Operating System	Cisco IOS XE via Host Switch
Network/Network Standard	Cisco StackWise-480
Operating Channels	4 × Multigigabit Ethernet Channels
Frequency Accuracy	50–60 Hz
Power Supply	715W
Operating Temperature	1.58 × 3.25 × 12.20 in
Manufacturer	Cisco
Color	Silver
Country of Origin	United States
