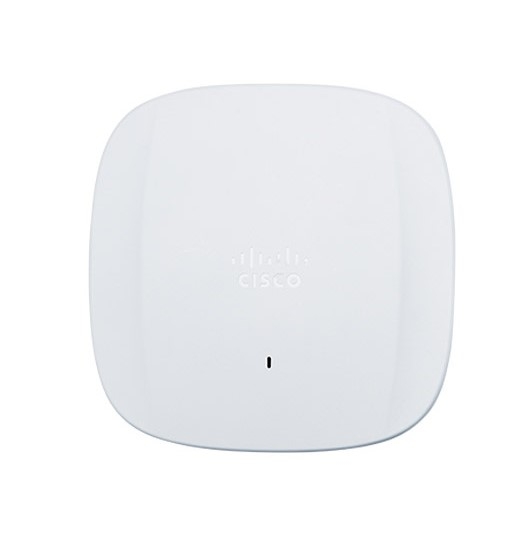

Cisco CW9164I-B Catalyst 9164I Wi-Fi 6E Tri-Band 4x4 Indoor Access Point

Enterprise Wi-Fi 6E Connectivity

The Cisco CW9164I-B is a Catalyst 9164I enterprise-class indoor access point designed to provide high-capacity wireless connectivity across the 2.4 GHz, 5 GHz and 6 GHz frequency bands. Wi-Fi 6E expands the available wireless spectrum, helping compatible devices achieve higher capacity and reduced interference in demanding enterprise environments.

The CW9164I-B combines 2x2 MU-MIMO on 2.4 GHz with 4x4 MU-MIMO on 5 GHz and 6 GHz. Cisco's Catalyst 9164 platform is designed for high-performance deployments and provides an aggregate PHY data rate of up to approximately 7.49 Gbps under supported configurations.

Key Features

Tri-Band Wi-Fi 6E Architecture

The CW9164I-B uses three primary Wi-Fi radios operating across 2.4 GHz, 5 GHz and 6 GHz. The 2.4 GHz radio provides 2x2 spatial streams, while the 5 GHz and 6 GHz radios provide 4x4 spatial streams for increased capacity and performance.

• 2.4 GHz: 2x2 MU-MIMO
• 5 GHz: 4x4 MU-MIMO
• 6 GHz: 4x4 MU-MIMO
• Wireless Technology: Wi-Fi 6E / IEEE 802.11ax
• Security: WPA3 support
• Advanced Wireless: OFDMA, MU-MIMO and beamforming

High-Speed Wired Connectivity

A built-in 100M/1000M/2.5G Multigigabit Ethernet interface provides the wired connection between the access point and the network infrastructure. The 2.5G interface helps provide suitable backhaul capacity for high-throughput Wi-Fi 6E deployments.

The access point also provides an RJ-45 management console and a USB 2.0 Type-A interface. The USB interface supports up to 4.5W under supported power configurations.

Integrated Antennas and Wireless Radios

The CW9164I-B uses integrated internal antennas for indoor wireless deployments. The Catalyst 9164I platform incorporates dedicated antennas for the primary wireless radios together with additional radio capabilities for security, RF management, scanning and IoT functions.

• 2.4 GHz Antenna Gain: 3 dBi
• 5 GHz Antenna Gain: 5 dBi
• 6 GHz Antenna Gain: 4 dBi
• Bluetooth: Bluetooth Low Energy
• Scanning: Dedicated security/RF scanning radio
• Antenna Type: Integrated internal omnidirectional

Power and Installation

The CW9164I-B supports enterprise Power over Ethernet options including 802.3at PoE+ and 802.3bt Cisco UPOE. DC power is also supported for installations requiring an external DC power source.

• 802.3bt UPOE: Full radio configuration with 2.5G Ethernet and USB
• 802.3at PoE+: Enterprise wireless operation with Multigigabit Ethernet
• DC Power: 54V input
• Maximum Power: Up to 30W
• USB Power: Up to 4.5W

Enterprise Applications

• Enterprise offices and corporate campuses
• High-density wireless networks
• Education and university environments
• Healthcare facilities
• Hotels and hospitality deployments
• Retail and commercial buildings
• IoT-enabled enterprise networks
• Wi-Fi 6E collaboration environments

United States Regulatory Domain

Why Choose Cisco CW9164I-B?

The Cisco Catalyst CW9164I-B combines Wi-Fi 6E tri-band connectivity, high-capacity MU-MIMO, 2.5G Multigigabit Ethernet, integrated antennas and enterprise-grade wireless management in a compact indoor access point. With 4x4 radios on 5 GHz and 6 GHz, support for the 6 GHz spectrum, Cisco IOS XE and Catalyst 9800 Series Wireless Controllers, it is designed for demanding enterprise wireless deployments.
