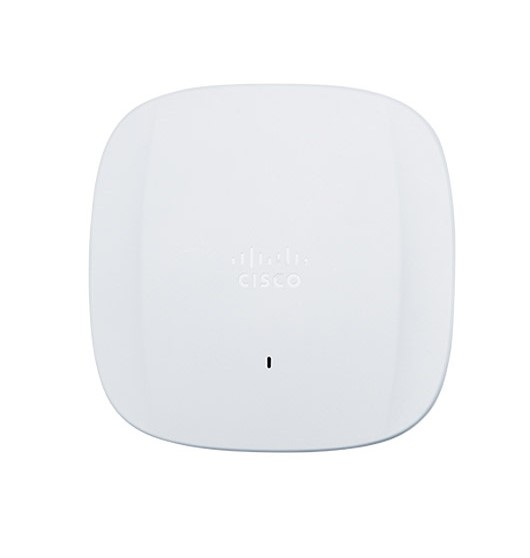

Cisco CW9164I-E Catalyst 9164I Wi-Fi 6E Tri-Band 4x4 Indoor Access Point

Enterprise Wi-Fi 6E Connectivity

The Cisco CW9164I-E is a Cisco Catalyst 9164I enterprise indoor access point designed to deliver high-capacity, reliable wireless connectivity for modern business environments. It supports the 2.4 GHz, 5 GHz and 6 GHz bands, providing the additional spectrum and capacity enabled by Wi-Fi 6E.

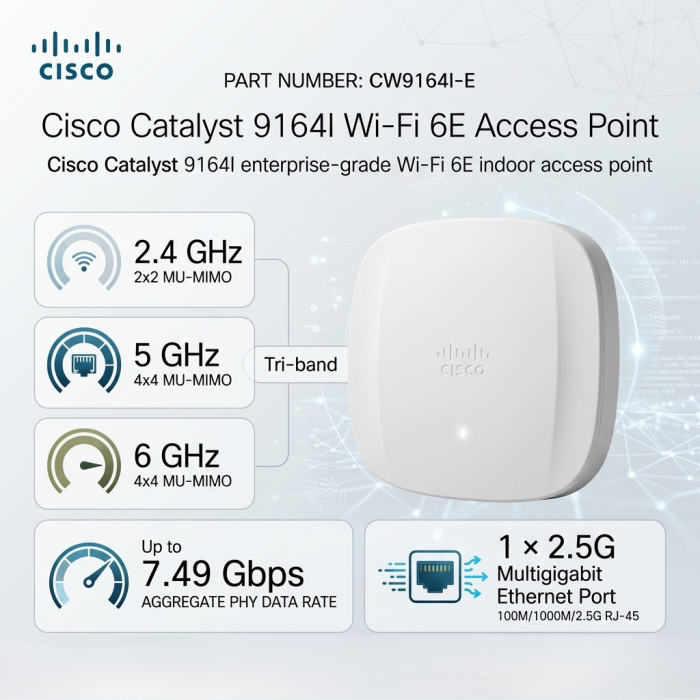

The access point combines 2x2 MU-MIMO on 2.4 GHz with 4x4 MU-MIMO on 5 GHz and 6 GHz. Cisco specifies aggregate PHY data rates of up to 7.49 Gbps, making the CW9164I suitable for high-density enterprise wireless deployments.

Key Features

Tri-Band Wi-Fi 6E Architecture

The CW9164I-E is engineered around three primary wireless bands. The 2.4 GHz radio uses 2x2 spatial streams, while the 5 GHz and 6 GHz radios provide 4x4 spatial streams. Wi-Fi 6E expands wireless capacity by making the 6 GHz spectrum available to compatible devices.

• 2.4 GHz: 2x2 MU-MIMO
• 5 GHz: 4x4 MU-MIMO
• 6 GHz: 4x4 MU-MIMO
• 6 GHz Channel Width: Up to 160 MHz
• Maximum PHY Rate: Up to 7.49 Gbps
• Security: WPA3 support
• Wireless Technologies: OFDMA, MU-MIMO, BSS Coloring and TWT

High-Speed Wired Connectivity

A built-in 100M/1000M/2.5G Multigigabit Ethernet RJ-45 interface provides the wired network connection to the access point. The 2.5G interface helps provide sufficient backhaul capacity for high-throughput Wi-Fi 6E deployments.

The CW9164I-E also includes an RJ-45 management console port and a USB 2.0 interface capable of providing up to 4.5W under the supported power configuration.

Integrated Antenna and Wireless Radios

The access point uses integrated internal antennas designed for indoor enterprise deployments. Cisco specifies peak antenna gains of 3 dBi at 2.4 GHz, 5 dBi at 5 GHz and 4 dBi at 6 GHz.

In addition to the primary Wi-Fi radios, the platform includes Bluetooth Low Energy and dedicated radio capabilities for security, RF management and scanning functions.

Power and Installation

The CW9164I-E supports enterprise PoE and Cisco UPOE deployment options. With 802.3bt Cisco UPOE or DC power, the access point can operate its full radio configuration and 2.5G Ethernet interface.

• 802.3bt UPOE: 2x2 / 4x4 / 4x4 radios, 2.5G Ethernet and USB
• 802.3at PoE+: 2x2 / 4x4 / 4x4 radios and 2.5G Ethernet
• 802.3af PoE: Configuration staging only
• DC Power: 54V input
• Maximum Power: Up to 30W

Enterprise Applications

• Enterprise offices and corporate campuses
• High-density wireless environments
• Education and university networks
• Healthcare facilities
• Hotels and hospitality environments
• Retail and commercial buildings
• IoT-enabled enterprise networks
• Wi-Fi 6E-enabled collaboration environments

European Regulatory Domain

Why Choose Cisco CW9164I-E?

The Cisco Catalyst CW9164I-E combines Wi-Fi 6E tri-band connectivity, high-capacity MU-MIMO, 2.5G Multigigabit Ethernet and enterprise-grade management in a compact indoor access point. Its support for the 6 GHz spectrum, 4x4 radios on 5 GHz and 6 GHz, WPA3 security, Cisco IOS XE and Catalyst 9800 controllers makes it suitable for demanding enterprise wireless deployments.
