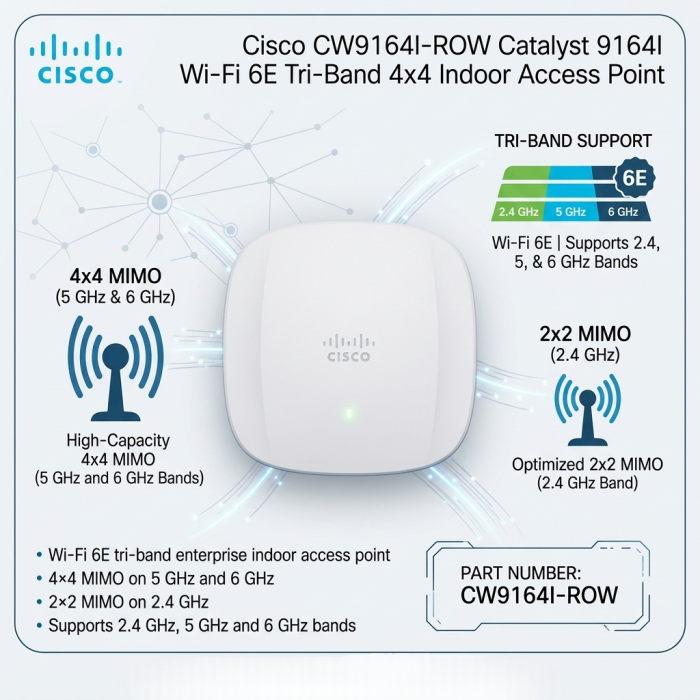

Cisco CW9164I-ROW Catalyst 9164I Wi-Fi 6E Tri-Band 4x4 Indoor Access Point

The Cisco Catalyst 9164I provides tri-band wireless connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands. Wi-Fi 6E extends the capabilities of Wi-Fi 6 by providing compatible client devices with access to additional spectrum in the 6 GHz band.

The CW9164I-ROW is designed for enterprise environments that require high wireless capacity and efficient connectivity for multiple users, devices, and applications. Its higher-performance radio architecture supports modern Wi-Fi 6E deployments in offices, campuses, education, healthcare, hospitality, and commercial environments.

• Wi-Fi 6E tri-band indoor access point
• 2.4 GHz, 5 GHz, and 6 GHz wireless connectivity
• 4x4 MIMO on 5 GHz and 6 GHz radios
• 2x2 MIMO on 2.4 GHz radio
• Up to 7.49 Gbps PHY data rate
• 1 × 100M/1000M/2.5G Multigigabit Ethernet port
• Integrated internal omnidirectional antennas
• Dedicated wireless scanning capabilities
• Integrated Bluetooth Low Energy support
• USB 2.0 Type-A interface
• OFDMA and MU-MIMO support
• PoE+, UPOE, and DC power support
• Cisco IOS XE wireless architecture
• Regulatory Domain ROW

The CW9164I-ROW includes a 100M/1000M/2.5G Multigigabit RJ-45 Ethernet interface for high-speed wired connectivity between the access point and the network infrastructure.

The Cisco CW9164I-ROW is designed with a higher-performance radio configuration than entry-level Wi-Fi 6E access points. It provides 4x4 MIMO on the 5 GHz and 6 GHz radios and 2x2 MIMO on the 2.4 GHz radio, supporting efficient wireless communication for modern client devices.

The access point supports advanced Wi-Fi 6E technologies including OFDMA and MU-MIMO, helping improve spectrum efficiency and wireless capacity in environments with multiple connected clients.

The Cisco CW9164I-ROW supports 802.3at PoE+ and 802.3bt UPOE power options, providing the power required for its high-performance wireless configuration. DC power is also supported for suitable deployments.

With its integrated antenna design and compact indoor form factor, the CW9164I-ROW is suitable for ceiling and other indoor enterprise installations where reliable Wi-Fi 6E connectivity is required.

The Cisco CW9164I-ROW combines Wi-Fi 6E tri-band connectivity, high-performance MIMO radios, 6 GHz support, 2.5G Multigigabit Ethernet, integrated omnidirectional antennas, BLE, USB 2.0, and flexible PoE/UPOE power options in a professional enterprise indoor access point.

Its 4x4 radio architecture on the 5 GHz and 6 GHz bands provides a high-capacity platform for modern wireless deployments, while the 2.5G Ethernet interface helps provide sufficient wired backhaul for high-performance Wi-Fi traffic.
