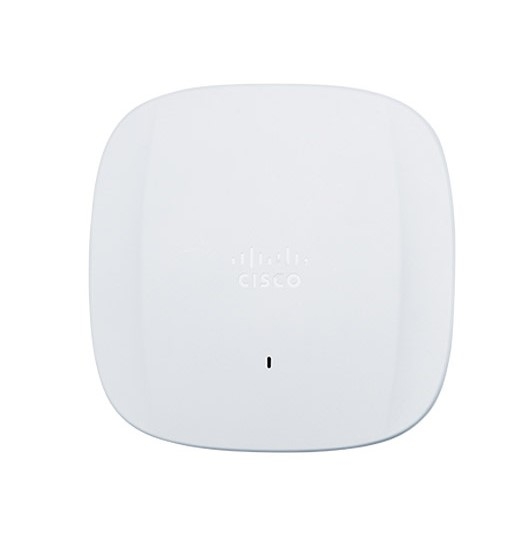

Cisco CW9166I-ROW Catalyst 9166I Wi-Fi 6E Tri-Band 4x4 Indoor Access Point

Enterprise Wi-Fi 6E Connectivity

The Cisco CW9166I-ROW is a high-performance Catalyst 9166I indoor access point designed for demanding enterprise wireless environments. It supports the 2.4 GHz, 5 GHz and 6 GHz frequency bands and provides three 4x4 radios with four spatial streams.

With Wi-Fi 6E technology, the CW9166I-ROW provides access to the 6 GHz spectrum for compatible devices, helping increase available wireless capacity and reduce congestion. Cisco specifies an aggregate PHY data rate of up to 7.78 Gbps under supported channel configurations.

Key Features

Tri-Band 4x4 Wi-Fi 6E Architecture

The CW9166I-ROW uses three high-capacity primary radios. Each radio supports four spatial streams, providing 4x4 MIMO operation across the 2.4 GHz, 5 GHz and 6 GHz bands.

• 2.4 GHz: 4x4 MIMO
• 5 GHz: 4x4 MIMO
• 6 GHz: 4x4 MIMO
• 6 GHz Channel Width: Up to 160 MHz
• 5 GHz Channel Width: Up to 80+80 MHz
• 2.4 GHz Channel Width: Up to 20 MHz
• Maximum PHY Rate: Up to 7.78 Gbps
• Wireless Technologies: OFDMA, MU-MIMO, TWT, BSS Coloring and beamforming
• Security: WPA3 support

5G Multigigabit Ethernet

A built-in 100M/1000M/2.5G/5G Multigigabit Ethernet RJ-45 interface provides high-speed wired connectivity between the access point and the network infrastructure. The 5G Ethernet interface is designed to support the high throughput generated by Wi-Fi 6E clients.

The access point also provides an RJ-45 management console port and a USB 2.0 Type-A interface capable of up to 4.5W under supported power configurations.

Integrated Antennas and XOR Technology

The CW9166I-ROW features integrated internal omnidirectional antennas designed for indoor enterprise deployments. The Catalyst 9166I platform includes dedicated radio paths for 2.4 GHz, 5 GHz and 6 GHz operation together with an XOR radio that provides flexible 5 GHz and 6 GHz deployment options.

• 2.4 GHz Antenna Gain: 3 dBi
• 5 GHz Antenna Gain: 5 dBi
• 5 GHz XOR Antenna Gain: 5 dBi
• 6 GHz Antenna Gain: 4 dBi
• Antenna Type: Integrated internal omnidirectional
• Bluetooth: Bluetooth Low Energy

Cisco's XOR functionality allows the wireless radios to be configured for dual 5 GHz operation or for 5 GHz plus 6 GHz operation, depending on the deployment configuration and applicable regulatory requirements.

IoT and Environmental Capabilities

Beyond high-performance Wi-Fi, the Catalyst 9166I platform integrates additional capabilities for enterprise IoT and infrastructure monitoring. This helps organizations build wireless networks that can support connected devices, monitoring and location-aware enterprise applications.

• Bluetooth Low Energy
• Integrated IoT radio capabilities
• Environmental sensing capabilities
• RF monitoring and scanning functionality
• Security monitoring capabilities

Power and Installation

The CW9166I-ROW supports enterprise Power over Ethernet deployments using 802.3at PoE+ and 802.3bt Cisco UPOE. It can also operate from a 54V DC power source.

• 802.3bt UPOE: 4x4 / 4x4 / 4x4 radios, 5G Ethernet and USB
• 802.3at PoE+: 4x4 / 4x4 / 4x4 radios and 5G Ethernet
• 802.3af PoE: Configuration staging only; radios off
• DC Power: 54V
• Maximum PoE Power: 30.5W
• USB Power: Up to 4.5W

Enterprise Applications

• Enterprise offices and corporate campuses
• High-density Wi-Fi 6E deployments
• Universities and educational institutions
• Healthcare facilities
• Hotels and hospitality environments
• Retail and commercial buildings
• IoT-enabled enterprise networks
• Large-scale corporate wireless networks
• High-bandwidth collaboration environments

ROW Regulatory Domain

Cisco's compliance documentation lists CW9166I-ROW for multiple countries and notes that regulatory approvals can change as additional countries are added to the ROW domain.

Why Choose Cisco CW9166I-ROW?

The Cisco Catalyst CW9166I-ROW combines Wi-Fi 6E tri-band connectivity, three 4x4 radios, XOR technology, 5G Multigigabit Ethernet, integrated omnidirectional antennas and enterprise wireless management in a high-capacity indoor access point. Its support for 2.4 GHz, 5 GHz and 6 GHz operation, together with Cisco IOS XE and Catalyst 9800 Wireless Controller compatibility, makes it suitable for demanding enterprise wireless infrastructures.
