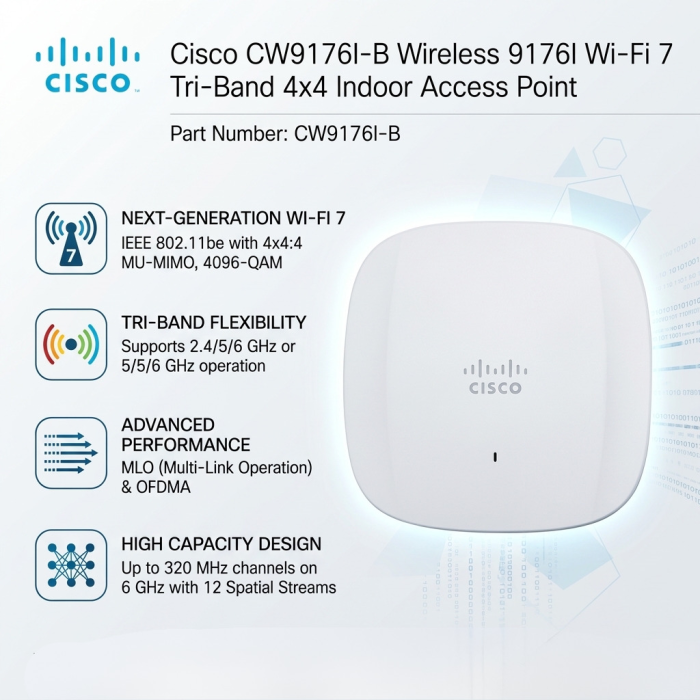

Cisco CW9176I-B Wireless 9176I Wi-Fi 7 Tri-Band 4x4 Indoor Access Point
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The CW9176I-B
-
Wi-Fi 7: IEEE 802.11be with 4x4:4 MU-MIMO, 4096-QAM, MLO, OFDMA and up to 320 MHz channels on 6 GHz.
-
Tri-Band Radio: Supports either 2.4/5/6 GHz or 5/5/6 GHz operation with 12 spatial streams.
-
Up to 18 Gbps PHY: Supports up to 18 Gbps in standard tri-band configuration and up to 23 Gbps in 5/5/6 GHz configuration.
-
10G Multigigabit Ethernet: 1 × 100M/1000M/2.5G/5G/10G RJ-45 Multigigabit port.
-
Advanced Location & IoT: Integrated GNSS/GPS, UWB, dedicated IoT radio, BLE 5.3, accelerometer and USB 2.0.
Cisco CW9176I-B Wireless 9176I Wi-Fi 7 Tri-Band 4x4 Indoor Access Point
High-performance enterprise Wi-Fi 7 access point with tri-band 2.4 GHz, 5 GHz and 6 GHz connectivity, 4x4:4 MU-MIMO, 12 spatial streams, 10G Multigigabit Ethernet, integrated GNSS/GPS, UWB, Bluetooth Low Energy and advanced Cisco wireless management capabilities.
Next-Generation Wi-Fi 7 Enterprise Connectivity
The Cisco CW9176I is a high-performance indoor enterprise access point designed for demanding wireless environments requiring high capacity, low latency and advanced radio flexibility. It is part of Cisco's Wireless 9176 Series and uses Wi-Fi 7 technology to support modern high-density enterprise deployments.
The access point provides three client-serving radios with 4x4:4 configuration on each radio and supports up to 12 spatial streams. Cisco's Flexible Radio Assignment allows the CW9176I to operate in either a 2.4 GHz / 5 GHz / 6 GHz configuration or a 5 GHz / 5 GHz / 6 GHz configuration depending on deployment requirements.
Key Features
Advanced Wi-Fi 7 Performance
The CW9176I is engineered for high-density wireless environments where large numbers of connected clients require reliable throughput and efficient spectrum utilization. Wi-Fi 7 capabilities such as 4096-QAM, Multi-Link Operation (MLO), OFDMA, MU-MIMO and preamble puncturing improve wireless efficiency and performance.
- IEEE 802.11be / Wi-Fi 7 support
- 4x4:4 MU-MIMO on client-serving radios
- Up to 12 spatial streams
- Up to 320 MHz channel width on supported 6 GHz deployments
- 4096-QAM modulation
- Multi-Link Operation (MLO)
- OFDMA uplink and downlink
- Downlink and uplink MU-MIMO capabilities
- Flexible 2.4/5/6 GHz or 5/5/6 GHz radio configuration
10G Multigigabit Ethernet
A high-speed 100M/1000M/2.5G/5G/10G Multigigabit RJ-45 Ethernet port provides the wired backhaul required for high-throughput Wi-Fi 7 deployments. This enables organizations to connect the access point to modern Multigigabit switching infrastructure without requiring a fiber uplink at the AP.
Integrated Location, IoT and Smart-Space Capabilities
The CW9176I combines enterprise Wi-Fi with integrated location and IoT technologies. Built-in GNSS/GPS and UWB capabilities support location-aware use cases, while Bluetooth Low Energy and IoT functionality enable smart-building and asset-tracking applications.
- Integrated GNSS/GPS
- Integrated UWB
- Bluetooth Low Energy
- Dedicated IoT radio capabilities
- Dedicated scanning functionality for wireless security and RF optimization
- USB 2.0 interface for supported accessories and applications
Flexible Radio Assignment
Cisco's Flexible Radio Assignment architecture allows the CW9176I to adapt its client-serving radios according to the wireless environment and traffic requirements. The AP can operate in standard 2.4 GHz / 5 GHz / 6 GHz mode or use 5 GHz / 5 GHz / 6 GHz mode for environments requiring additional 5 GHz capacity.
Enterprise Wireless Management
The CW9176I supports Cisco's unified Wi-Fi 7 architecture and can be deployed with Cisco Catalyst wireless infrastructure or Cisco Meraki cloud management, providing flexibility for organizations operating on-premises, cloud-managed or hybrid wireless environments.
- Cisco Catalyst 9800 Series Wireless Controller support
- Cisco IOS XE software support
- Cisco Meraki Dashboard deployment support
- Centralized enterprise wireless management
- Advanced monitoring and wireless assurance capabilities
Power and Installation
The Cisco CW9176I supports modern Power over Ethernet infrastructure, including IEEE 802.3at PoE+ and IEEE 802.3bt UPOE. Power consumption depends on the operating radio configuration, Ethernet speed, USB usage and traffic conditions.
| Power Source | Supported Configuration |
|---|---|
| 802.3bt UPOE | Supports full high-performance radio operation and 10G Ethernet capability. |
| 802.3at PoE+ | Supported with appropriate power-aware radio and feature configuration. |
Enterprise Applications
The CW9176I is suitable for enterprise campuses, offices, educational institutions, healthcare facilities, retail environments, hospitality venues and other high-density indoor locations where reliable Wi-Fi 7 connectivity and advanced wireless services are required.
Global Use Product Design
The product reference CW9176I-B may be retained on a reseller or customer-facing product page when it is the supplied commercial reference, while the official Cisco hardware PID should remain identified as CW9176I.
Why Choose Cisco CW9176I?
The Cisco Wireless 9176I combines Wi-Fi 7 performance, 10G Multigigabit Ethernet, flexible tri-band radio architecture, integrated location technologies and enterprise management into a single indoor access point. Its flexible 2.4/5/6 GHz and 5/5/6 GHz operating modes make it suitable for both conventional tri-band deployments and environments requiring additional 5 GHz capacity.
- Next-generation Wi-Fi 7 enterprise wireless performance
- 4x4:4 client-serving radios with 12 spatial streams
- Up to 18 Gbps aggregate PHY capability
- Up to 23 Gbps PHY capability in 5/5/6 GHz configuration
- 10G Multigigabit Ethernet backhaul
- Integrated GNSS/GPS and UWB
- Bluetooth Low Energy and IoT capabilities
- Flexible Cisco Catalyst and Meraki deployment options
- Designed for high-density enterprise indoor environments
| Product Name | Cisco CW9176I-B Wireless 9176I Wi-Fi 7 Tri-Band 4x4 Indoor Access Point |
|---|---|
| Weight | 1.400000 |
| Interface | Wi-Fi 7 / 10G Multigigabit Ethernet |
| Ethernet | 100M/1000M/2.5G/5G/10G Multigigabit Ethernet |
| I/O Port | 1 × RJ-45 Multigigabit + RJ-45 Console + USB 2.0 |
| Operating System | Cisco IOS XE |
| Network/Network Standard | IEEE 802.11be / Wi-Fi 7 |
| Operating Channels | 2.4 / 5 / 6 GHz |
| Operating Frequency | 2.4 / 5 / 6 GHz |
| Dimensions | 24.13 × 24.13 × 5.69 cm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
