Next-Generation Wi-Fi 7 Connectivity

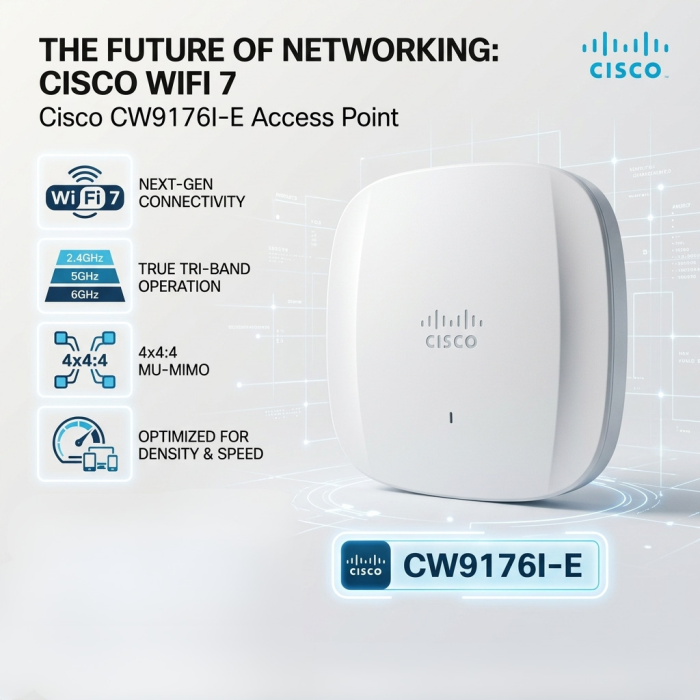

The Cisco Wireless CW9176I-E is designed to deliver high-capacity wireless connectivity using the latest IEEE 802.11be / Wi-Fi 7 technology. It operates across the 2.4 GHz, 5 GHz and 6 GHz frequency bands and provides the capacity required for modern enterprise networks.

The access point supports 4x4:4 MU-MIMO on its primary client-serving radios and provides up to 12 spatial streams. Depending on the selected radio configuration, the platform can provide up to 18 Gbps PHY data rate in standard 2.4/5/6 GHz operation and up to 23 Gbps PHY data rate in 5/5/6 GHz operation.

Key Features

Advanced Wi-Fi 7 Architecture

Wi-Fi 7 introduces technologies designed to increase throughput, improve spectrum efficiency and provide better wireless performance in high-density environments. The CW9176I-E supports Multi-Link Operation (MLO), allowing compatible Wi-Fi 7 clients to use multiple wireless links more efficiently.

The access point also supports 4096-QAM, OFDMA, beamforming, preamble puncturing and wider channel widths. The 6 GHz radio supports channels up to 320 MHz, while compatible 5 GHz configurations support channels up to 160 MHz.

Flexible Radio Configuration

The Cisco CW9176I provides flexible radio configuration for different enterprise deployment requirements. It can operate in a standard 2.4/5/6 GHz configuration or a 5/5/6 GHz configuration when additional 5 GHz capacity is required.

10G Multigigabit Ethernet

The integrated 100M/1000M/2.5G/5G/10G Multigigabit RJ-45 Ethernet port provides high-speed wired connectivity between the access point and the network infrastructure.

When powered using 802.3bt Cisco UPOE, the access point can support its highest-performance configuration, including 10G Ethernet connectivity. With 802.3at PoE+, the available Ethernet speed and radio configuration are reduced according to the available power.

Integrated GNSS, UWB & IoT Capabilities

The CW9176I-E incorporates advanced location and IoT technologies directly into the access point. Integrated GNSS/GPS capabilities support location-aware deployments, while Ultra-Wideband (UWB) provides additional capabilities for precision location and asset-tracking applications.

An integrated IoT radio, Bluetooth Low Energy and dedicated scanning capabilities allow the access point to support wireless monitoring, IoT devices, asset tracking and RF analytics without requiring separate infrastructure for every application.

Bluetooth Low Energy

Integrated Bluetooth Low Energy connectivity supports compatible Bluetooth devices, beacons and location-aware applications. The platform is designed to support evolving wireless requirements through Cisco software capabilities.

Power & Installation

The Cisco CW9176I-E supports multiple Power over Ethernet configurations. This allows administrators to select the appropriate power source according to the required radio, USB and Ethernet capabilities.

European Deployment

The CW9176I platform uses Cisco's Global Use architecture. For European deployments, the applicable country configuration determines the permitted frequency bands, channels, transmit power and other regulatory parameters.

Customers deploying the CW9176I-E in Europe should verify the specific country's wireless regulations and Cisco's applicable country-code documentation before installation and operation.

Enterprise Applications

• High-density enterprise Wi-Fi 7 networks
• Corporate offices and headquarters
• Universities and educational campuses
• Healthcare and medical facilities
• Conference rooms and collaboration environments
• Large public venues and high-density locations
• IoT-enabled enterprise deployments
• Asset tracking and location-aware applications
• High-bandwidth video and collaboration applications
• Next-generation Wi-Fi 7 infrastructure

Enterprise Wireless Management

The CW9176I operates with Cisco IOS XE and supports Cisco Catalyst 9800 Series wireless controllers. Cisco also provides cloud-managed deployment capabilities through Cisco Meraki Dashboard, giving organizations flexible options for centralized wireless management and monitoring.

Why Choose Cisco CW9176I-E?

The Cisco Wireless CW9176I-E combines next-generation Wi-Fi 7, tri-band 4x4 MIMO, up to 12 spatial streams, 10G Multigigabit Ethernet, advanced location technologies and integrated IoT capabilities in a single enterprise indoor access point.

With support for 4096-QAM, Multi-Link Operation, 320 MHz channels, UWB, GNSS/GPS and high-speed Ethernet, the CW9176I platform is designed for organizations preparing their wireless infrastructure for next-generation clients and bandwidth-intensive enterprise applications.
