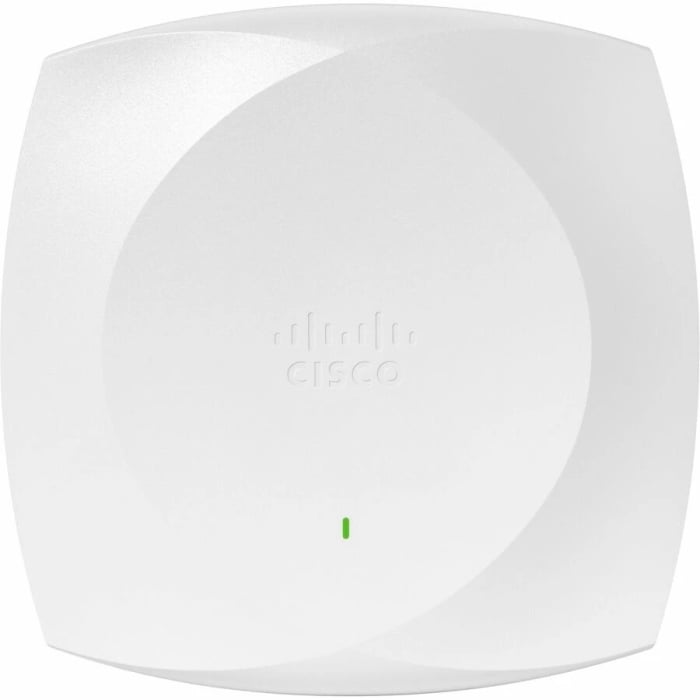

Cisco CW9178I-B Wireless 9178I Wi-Fi 7 Tri-Radio 4x4 Indoor Access Point

Next-Generation Wi-Fi 7 Enterprise Connectivity

The Cisco CW9178I-B is built on the Cisco Wireless 9178I platform and delivers advanced IEEE 802.11be Wi-Fi 7 wireless connectivity for demanding enterprise networks. It combines high-capacity wireless radios with high-speed wired uplinks to support large numbers of connected devices, bandwidth-intensive applications and modern digital environments.

The platform supports a flexible tri-radio 2.4/5/6 GHz architecture and can also operate in quad-radio 2.4/5/5/6 GHz mode. In quad-radio mode, two independent 5 GHz radios can serve different portions of the 5 GHz spectrum, providing additional capacity for high-density deployments.

Cisco specifies up to 24 Gbps PHY data rate in quad-radio operation, while tri-radio configurations can provide up to 18 Gbps or up to 23 Gbps depending on the selected radio arrangement.

Key Features

Advanced Wi-Fi 7 Technologies

Flexible Tri-Radio and Quad-Radio Architecture

The CW9178I platform provides four client-serving radio slots. In the default tri-radio configuration, the access point operates across 2.4 GHz, 5 GHz and 6 GHz. The 5 GHz radio covers the supported 5 GHz spectrum as a full-band radio.

In quad-radio mode, the platform operates as 2.4/5/5/6 GHz, with two 5 GHz radios serving different portions of the 5 GHz spectrum. This architecture can provide additional capacity in high-density environments such as campuses, conference facilities, stadium-related areas, large offices and public venues.

High-Speed Dual 10G Multigigabit Ethernet

The Cisco CW9178I-B provides two 10G Multigigabit Ethernet RJ-45 ports to handle the high traffic generated by modern Wi-Fi 7 networks. Each port supports multiple Ethernet speeds, allowing the access point to connect to a wide range of Cisco and third-party switching infrastructures.

Integrated GNSS, UWB, IoT and Bluetooth

The CW9178I platform integrates multiple technologies designed for modern enterprise wireless and location-aware deployments. Built-in GNSS/GPS, Ultra-Wideband (UWB), Bluetooth Low Energy and IoT capabilities enable organizations to support location services, asset tracking, indoor navigation and connected-device applications.

Cisco's platform also includes a dedicated IoT radio and advanced RF scanning functionality. These capabilities can be used with Cisco wireless management and location services to improve network visibility and support enterprise IoT deployments.

Cisco CleanAir Pro and RF Intelligence

The Cisco Wireless 9178I platform incorporates advanced RF visibility through Cisco CleanAir Pro and an AI/ML-driven scanning radio. The dedicated scanning architecture helps identify RF conditions, interference and wireless environment changes without relying solely on client-serving radios.

This makes the platform suitable for demanding wireless environments where reliable RF visibility and proactive wireless optimization are important.

Enterprise Wireless Management

The Cisco CW9178I platform supports Cisco Catalyst wireless management through Cisco Catalyst 9800 Series Wireless Controllers. Cisco specifies support for IOS XE 17.15.2 and later.

The platform also supports Cisco Meraki cloud-based deployment, allowing organizations to use the same unified hardware platform across different Cisco wireless management architectures.

Global Use Architecture

Unlike earlier Cisco wireless access point families that used separate regulatory-domain suffixes, the CW9178I is designed as a Global Use unified product. Cisco states that the single product ID can be deployed worldwide where the product is certified for use, without purchasing a country-specific hardware SKU.

Country-specific regulatory requirements are determined during deployment using Cisco's Global Use architecture. This simplifies ordering, deployment, lifecycle management and hardware standardization for organizations operating across multiple regions.

Power and Installation

The CW9178I supports enterprise Power over Ethernet deployment. Under 802.3bt Cisco UPOE, the access point can operate its full radio capabilities with dual 10G Ethernet and USB power. Cisco also supports 802.3at PoE+ for reduced-power configurations.

Enterprise Applications

Why Choose Cisco CW9178I-B?

The Cisco CW9178I-B provides a scalable Wi-Fi 7 platform for organizations requiring high wireless capacity, high-speed wired uplinks and advanced enterprise networking capabilities. Its 4x4:4 radios, flexible tri-radio and quad-radio operation, dual 10G Ethernet and advanced Wi-Fi 7 features make it suitable for demanding wireless environments.

Integrated GNSS/GPS, UWB, BLE and IoT capabilities further extend the platform beyond conventional wireless access, supporting location, asset-tracking and connected-device applications. Cisco's Global Use architecture also allows the same unified hardware PID to be deployed across supported regions without purchasing separate regulatory-domain hardware SKUs.
