Next-Generation Wi-Fi 7 for High-Density Environments

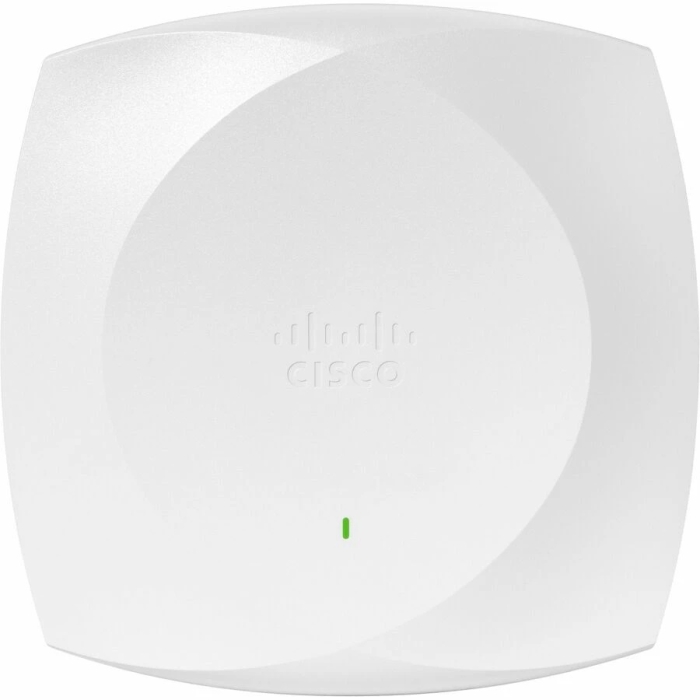

The Cisco CW9179F-B is a high-performance Wi-Fi 7 access point designed for demanding wireless environments where high capacity, coverage flexibility and reliable connectivity are essential. Based on the Cisco Wireless 9179F platform, it combines advanced IEEE 802.11be technology with a high-density radio architecture and configurable antenna beam patterns.

The access point supports tri-band operation across the 2.4 GHz, 5 GHz and 6 GHz spectrum and can deliver up to 24 Gbps aggregate PHY rate in supported quad-radio configurations. It also supports up to 23 Gbps in selected 5/5/6 GHz configurations, making it suitable for bandwidth-intensive applications and large numbers of concurrent wireless clients.

Key Features

Advanced Wi-Fi 7 Performance

Cisco CW9179F-B supports the latest Wi-Fi 7 technologies to improve wireless capacity, spectrum utilization and client performance. The platform supports 4096-QAM, Multi-Link Operation (MLO), preamble puncturing, OFDMA, Target Wake Time (TWT), BSS coloring and Maximum Ratio Combining (MRC).

• IEEE 802.11be / Wi-Fi 7
• 2.4 GHz, 5 GHz and 6 GHz tri-band operation
• 4x4 MU-MIMO architecture
• Four spatial streams per serving radio
• 4096-QAM modulation
• Multi-Link Operation (MLO)
• OFDMA uplink and downlink
• Preamble puncturing
• Target Wake Time (TWT)
• BSS coloring and MRC
• WPA3 security support

Flexible Tri-Radio and Quad-Radio Operation

The Wireless 9179F platform provides flexible radio configurations for different capacity and deployment requirements. It supports 2.4 GHz, 5 GHz and 6 GHz operation, with additional radio flexibility on the 5 GHz band.

Configurable Antenna Beam Patterns

A major feature of the Cisco CW9179F-B is its software-configurable antenna architecture. The access point can adapt its RF coverage pattern to suit different physical environments and deployment layouts.

Dual 10G Multigigabit Ethernet

The Cisco CW9179F-B includes two Multigigabit Ethernet RJ-45 ports supporting 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps Ethernet speeds. This provides the wired capacity required to support high-performance Wi-Fi 7 deployments.

The dual Ethernet architecture can also support power-redundant and link-redundant uplink configurations. For 10 Gbps operation, appropriate Cat6 or Cat6A cabling is required, while Cat5e cabling can support speeds up to 5 Gbps under supported conditions.

Integrated GNSS, UWB, BLE and IoT

The CW9179F-B integrates additional wireless and location technologies to support modern enterprise and venue requirements. Integrated GNSS/GPS assists with location-aware deployments, while Bluetooth Low Energy (BLE), IoT functionality and dedicated scanning capabilities provide additional connectivity and monitoring options.

• Integrated GNSS/GPS
• Bluetooth Low Energy
• IoT support
• Dedicated scanning radio
• Advanced RF monitoring capabilities
• Support for location-aware enterprise deployments

Indoor and Outdoor Deployment Flexibility

The Cisco Wireless 9179F platform is designed for high-density indoor and outdoor deployment scenarios. Its ruggedized form factor and configurable antenna architecture make it suitable for demanding environments such as stadiums, arenas, airports, convention centers, transportation facilities and other large public venues.

For outdoor 6 GHz operation, the applicable CW-ACC-9179-B-00 environment pack is required. Deployment should follow the applicable Cisco installation, regulatory and environmental requirements for the intended location.

Enterprise Wireless Management

The Cisco CW9179F-B operates with Cisco IOS XE and can be managed through Cisco enterprise wireless infrastructure. It supports Cisco Catalyst 9800 physical and virtual wireless controllers and applicable Cisco Catalyst 9000 Embedded Wireless Controller deployments in SDA environments.

This enables centralized configuration, policy enforcement, security management, RF optimization and operational visibility across enterprise wireless networks.

Power and Installation

The access point supports multiple power options to accommodate different deployment requirements. Cisco UPOE provides the highest available power budget and enables the full supported radio and interface configuration.

Ideal Applications

Global Use Product Architecture

Important: Cisco's current documentation identifies the official hardware part number as CW9179F. The CW9179F-B reference can be used as a product listing or regional/reference identifier, but it should not be interpreted as a separate Cisco hardware PID. The CW9179F uses a Global Use product architecture, with applicable regulatory configuration determined according to the deployment country or region.

Why Choose Cisco CW9179F-B?

The Cisco CW9179F-B provides a high-capacity wireless platform for organizations deploying Wi-Fi 7 in challenging, high-density environments. With up to 24 Gbps PHY capability, dual 10G Multigigabit Ethernet, configurable RF beam patterns, advanced Wi-Fi 7 features and integrated GNSS, BLE and IoT capabilities, it is designed to support the connectivity demands of modern large-scale wireless deployments.

Its combination of flexible radio operation, high-speed wired connectivity, enterprise management and indoor/outdoor deployment capability makes the Wireless 9179F platform suitable for large public venues and other environments where wireless capacity and coverage flexibility are critical.
