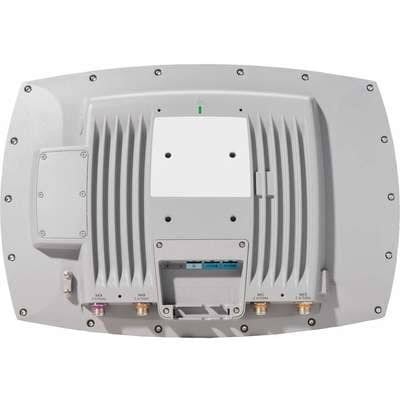

Cisco CW9179F-E Wireless 9179F Wi-Fi 7 24Gbps 4x4 High-Density Indoor/Outdoor Access Point

High-Performance Wi-Fi 7 for Large Public Venues

The Cisco Wireless 9179F platform is engineered for environments where high client density, wireless capacity, and reliable coverage are essential. Based on IEEE 802.11be Wi-Fi 7 technology, the access point supports advanced wireless features including 4096-QAM, Multi-Link Operation (MLO), OFDMA, preamble puncturing, Target Wake Time (TWT), BSS Coloring, and Maximal Ratio Combining (MRC).

The CW9179F supports tri-radio and quad-radio configurations. In quad-radio mode, the platform can provide up to 24 Gbps PHY data rate, while tri-radio configurations can provide up to 18 Gbps or up to 23 Gbps depending on the selected radio configuration.

Advanced Wi-Fi 7 Architecture

The CW9179F provides a high-density wireless architecture with 4x4 uplink/downlink MU-MIMO and four spatial streams on the 5 GHz radios. The 2.4 GHz and 6 GHz radios also support 4x4 uplink/downlink MU-MIMO with four spatial streams.

The platform supports 20, 40, 80, 160, and 320 MHz channel widths on 6 GHz, 20, 40, 80, and 160 MHz channels on 5 GHz, and 20 MHz channels on 2.4 GHz. These capabilities allow the access point to provide high wireless throughput across supported bands.

Wi-Fi 7 Technologies

• IEEE 802.11be / Wi-Fi 7
• 4x4 + 4x4 MU-MIMO on 5 GHz
• 4x4 MU-MIMO on 2.4 GHz and 6 GHz
• Up to 24 Gbps PHY in quad-radio configuration
• Up to 18 Gbps PHY in 2.4/5/6 GHz tri-radio configuration
• Up to 23 Gbps PHY in 5/5/6 GHz tri-radio configuration
• 4096-QAM
• Multi-Link Operation (MLO)
• Uplink and downlink OFDMA
• Preamble puncturing
• Target Wake Time (TWT)
• BSS Coloring
• Maximal Ratio Combining (MRC)
• WPA3 security support

Software-Configurable Beam Patterns

The CW9179F uses an integrated antenna and access point design with software- configurable beam patterns. This allows wireless coverage to be adapted to the physical layout of a large venue without requiring a different access point for every coverage orientation.

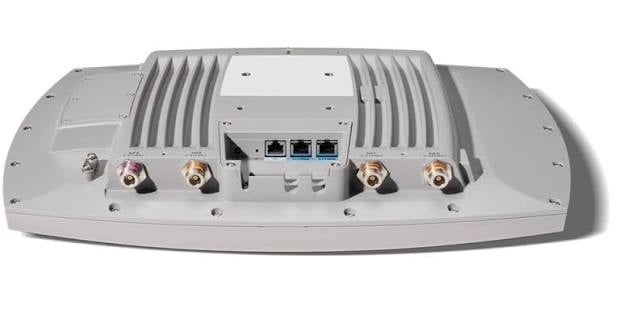

Cisco documents three selectable beam patterns: Wide, Narrow (Boresight), and Front-and-Back. In Wide mode, the 5 GHz beams are steered 15 degrees away from each other. Front-and-Back mode redirects the 2.4 GHz and 5 GHz Low radios to the N-Type connectors and requires external antennas for those radios.

Dual 10G Multigigabit Ethernet

The Cisco CW9179F includes two high-speed Multigigabit RJ-45 Ethernet interfaces. Each interface supports 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps Ethernet, providing the wired uplink capacity required for high-throughput Wi-Fi 7 networks.

In the maximum UPOE configuration, the access point can operate with two 10G Ethernet links while maintaining its full quad-radio wireless configuration. This provides a high-capacity wired foundation for demanding enterprise wireless deployments.

Integrated GNSS, Bluetooth and IoT

The CW9179F combines high-performance Wi-Fi with additional wireless and location capabilities. Integrated GNSS/GPS can assist Cisco's Global Use deployment process in determining the country of operation when connected to a Catalyst 9800 controller.

• Integrated GNSS/GPS
• Bluetooth Low Energy
• Integrated IoT capabilities
• Dedicated wireless scanning radio
• Integrated directional antenna architecture
• External antenna connectors for supported configurations

Indoor and Outdoor Deployment

The Wireless 9179F is designed as a convertible indoor/outdoor platform for large public venues. Its integrated access point and antenna design provides flexible coverage options while its rugged physical design supports demanding installation environments.

Cisco IOS XE and Enterprise Management

The CW9179F operates with Cisco IOS XE software and supports enterprise wireless management through Cisco Catalyst wireless infrastructure. Cisco lists Catalyst 9800 physical and virtual wireless controllers as supported controllers, as well as Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode.

• Cisco IOS XE Software Release 17.18.1 or later
• Cisco Catalyst 9800 Series Wireless Controllers
• Cisco Catalyst 9000 Embedded Wireless Controller in SDA mode
• Enterprise wireless security and management
• WPA3 support

Power and Installation

The CW9179F supports Cisco UPOE and PoE+ for flexible enterprise installation. Cisco 802.3af PoE can be used for staging with all radios disabled. A Cisco CW-INJ-8 Power Injector is also supported where an injector-based installation is required.

Ideal Applications

The Cisco CW9179F is designed for environments where high client density and high-capacity wireless connectivity are critical. Its combination of Wi-Fi 7, dual 10G Ethernet, configurable beam coverage, GNSS/GPS, IoT, BLE, and enterprise management makes it suitable for large-scale wireless infrastructure.

Global Use and European Deployment

Cisco identifies the CW9179F as a Global Use access point with a single hardware PID. Cisco's Global Use architecture separates the hardware PID from geographic regulatory configuration, allowing the same hardware platform to be deployed across supported regions while applying the appropriate country-specific RF configuration.
