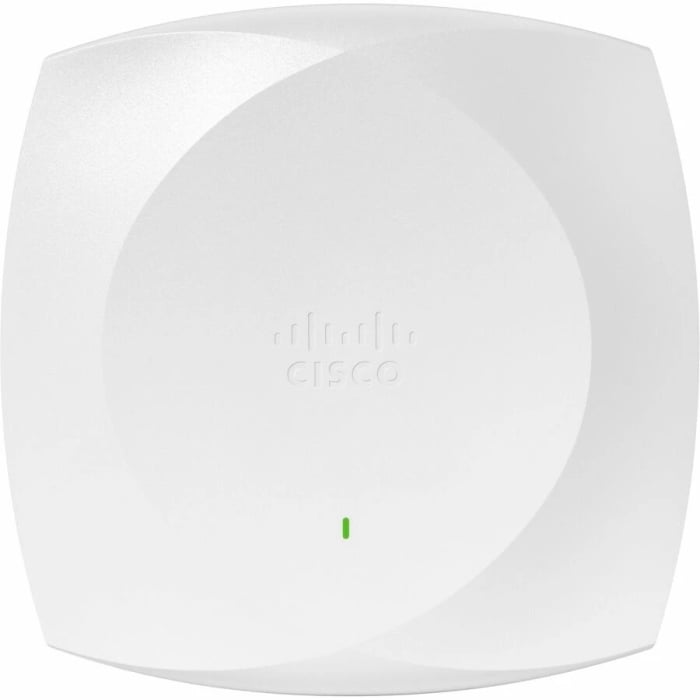

Cisco CW9179F-ROW Wireless 9179F Wi-Fi 7 4x4 High-Density Indoor/Outdoor Access Point

Next-Generation Wi-Fi 7 for High-Density Environments

The Cisco Wireless 9179F is engineered to provide reliable, high-capacity wireless connectivity where large numbers of users and devices need simultaneous access. Built around IEEE 802.11be Wi-Fi 7 technology, the access point supports advanced features including 4096-QAM, Multi-Link Operation (MLO), OFDMA, preamble puncturing, Target Wake Time (TWT), BSS Coloring, and Multi-Radio Coordination.

The platform supports a flexible tri-radio or quad-radio architecture. In its maximum quad-radio configuration, the CW9179F can deliver up to 24 Gbps aggregate PHY rate, making it suitable for demanding high-density wireless environments.

Advanced Wi-Fi 7 Wireless Architecture

The CW9179F uses a high-capacity multi-radio architecture designed to efficiently serve large numbers of wireless clients. It supports 4x4 MU-MIMO on the 2.4 GHz and 6 GHz radios and dual 4x4 radio operation on the 5 GHz band.

The access point supports up to four spatial streams per serving radio. Depending on the selected radio configuration, the platform can operate in tri-radio or quad-radio mode to balance wireless capacity, spectrum availability, and deployment requirements.

Wi-Fi 7 Technologies

• IEEE 802.11be / Wi-Fi 7
• 4x4 + 4x4 MU-MIMO on the 5 GHz radios
• 4x4 MU-MIMO on 2.4 GHz and 6 GHz
• Up to 24 Gbps PHY in quad-radio configuration
• Up to 18 Gbps PHY in 2.4/5/6 GHz tri-radio configuration
• Up to 23 Gbps PHY in 5/5/6 GHz tri-radio configuration
• 4096-QAM
• Multi-Link Operation (MLO)
• OFDMA uplink and downlink
• Preamble puncturing
• Target Wake Time (TWT)
• BSS Coloring
• Multi-Radio Coordination (MRC)
• WPA3 security support

Software-Configurable Beam Patterns

One of the key capabilities of the Cisco CW9179F is its software-configurable antenna architecture. The integrated directional antenna system allows deployment teams to select different beam patterns according to venue layout and coverage requirements.

Dual 10G Multigigabit Ethernet

The Cisco CW9179F provides two Multigigabit RJ-45 Ethernet interfaces supporting 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps Ethernet connectivity. The dual high-speed uplinks provide the wired capacity required by high-throughput Wi-Fi 7 deployments.

The Ethernet interfaces can connect the access point to high-speed enterprise switching infrastructure, aggregation networks, and other network architectures requiring substantial uplink bandwidth.

Integrated GNSS, IoT and BLE Capabilities

The CW9179F integrates multiple technologies beyond conventional Wi-Fi connectivity. Built-in GNSS/GPS functionality, Bluetooth Low Energy, IoT capabilities, and a dedicated scanning radio help support modern enterprise wireless and location-aware deployments.

• Integrated Bluetooth Low Energy
• Integrated IoT functionality
• Integrated GNSS/GPS
• Dedicated wireless scanning radio
• Integrated antenna system for wireless and auxiliary functions

Indoor and Outdoor Deployment Flexibility

The Cisco Wireless 9179F is designed for demanding large-venue deployments and can be deployed in suitable indoor or outdoor environments. Its ruggedized physical design and wide operating temperature range support installations where conventional indoor access points may not be suitable.

Enterprise Wireless Management

The CW9179F operates with Cisco IOS XE software and can be managed through Cisco enterprise wireless infrastructure. It supports Cisco Catalyst 9800 physical and virtual wireless controllers and Cisco Catalyst 9000 Embedded Wireless Controller deployments in SDA environments.

• Cisco IOS XE 17.18.1 or later
• Cisco Catalyst 9800 physical and virtual controllers
• Cisco Catalyst 9000 Embedded Wireless Controller in SDA mode
• Enterprise-grade wireless security and management
• WPA3 support

Power and Installation

The access point supports Cisco UPOE and PoE+ power options for flexible enterprise installation. Cisco 802.3af power is supported for staging purposes with radios disabled. A Cisco CW-INJ-8 power injector can also be used where required.

• 802.3bt Cisco UPOE: Up to 47W
• 802.3at PoE+: Up to 25.5W
• 802.3af: Staging only, with radios disabled
• Optional injector: Cisco CW-INJ-8

Ideal Applications

The CW9179F is particularly suited to environments where large numbers of users, smartphones, IoT devices, enterprise endpoints, and high-bandwidth applications operate simultaneously. Its combination of Wi-Fi 7 capacity, dual 10G uplinks, configurable beam patterns, and integrated location and IoT capabilities makes it suitable for large-scale wireless infrastructure.
