Cisco FPR2130-NGFW-K9 Firepower 2130 Next-Generation Firewall – 5.4Gbps, 12× RJ-45, 4× 10G SFP+
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The FPR2130-NGFW-K9
-

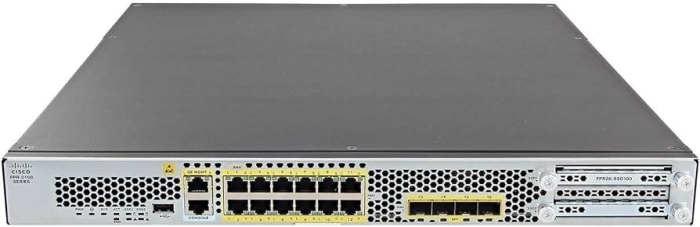

Cisco FPR2130-NGFW-K9 Firepower 2130 Next-Generation Firewall, 1RU rack-mount appliance.
-
5.4 Gbps Firewall + AVC and 5.4 Gbps IPS throughput with Cisco Secure Firewall Threat Defense (FTD).
-
12 × Gigabit RJ-45 + 4 × 10G SFP+ interfaces with 1 × Network Module Slot.
-
Supports up to 2 million concurrent AVC sessions, 30,000 new connections/sec, and 7,500 VPN peers.
-
16 GB memory, 8 GB flash, 1.9 Gbps IPsec VPN, dimensions 4.4 × 42.9 × 50.2 cm.
Cisco FPR2130-NGFW-K9 Firepower 2130 NGFW Security Appliance
Enterprise-class Cisco Firepower 2130 Next-Generation Firewall with advanced threat protection, application visibility and control, intrusion prevention, VPN security and flexible 10G connectivity in a compact 1RU rack-mount platform.
Cisco Firepower 2130 NGFW Overview
The Cisco FPR2130-NGFW-K9 is a Cisco Firepower 2130 Next-Generation Firewall appliance designed for enterprise networks, data centers, internet-edge deployments and high-performance network security environments.
The appliance combines firewall security, Application Visibility and Control (AVC), intrusion prevention, VPN connectivity and centralized security management capabilities in a compact 1RU rack-mount chassis.
Cisco specifies up to 5.4 Gbps Firewall + AVC throughput, 5.4 Gbps Firewall + AVC + IPS throughput and 5.4 Gbps IPS throughput for the Firepower 2130.
The FPR2130 provides 12 fixed 10/100/1000BASE-T RJ-45 interfaces and 4 fixed 1/10-Gbps SFP+ interfaces. It also includes one network-module bay for additional supported interface expansion.
Key Features
Network Interfaces & Connectivity
12 × 10/100/1000BASE-T RJ-45
The Cisco Firepower 2130 includes twelve fixed 10/100/1000BASE-T RJ-45 Ethernet ports. These interfaces can be used for LAN, WAN, DMZ, server and security-zone connectivity.
4 × 1/10 Gigabit SFP+
Four integrated SFP+ interfaces provide high-speed fiber connectivity and support compatible Cisco transceivers for 1 Gigabit and 10 Gigabit Ethernet deployments.
Network Module Bay
The FPR2130 includes one network-module bay. Supported network modules can expand the appliance's interface capacity for specialized enterprise and data-center deployments.
Firewall & Security Performance
The Firepower 2130 is designed to maintain high network throughput while advanced security inspection capabilities are enabled. Cisco's documented performance figures include the following:
| Performance Metric | FPR2130 |
|---|---|
| Firewall + AVC Throughput | 5.4 Gbps |
| Firewall + AVC + IPS | 5.4 Gbps |
| IPS Throughput | 5.4 Gbps |
| IPsec VPN Throughput | 1.9 Gbps |
| TLS Throughput | 760 Mbps |
| Maximum Concurrent AVC Sessions | Up to 2 Million |
| Maximum New Connections/sec with AVC | 30,000 |
| Maximum VPN Peers | 7,500 |
Cisco Secure Firewall Threat Defense
The FPR2130-NGFW-K9 is designed for deployments using Cisco Secure Firewall Threat Defense (FTD). FTD provides a unified security platform combining firewall functionality, application visibility and control, intrusion prevention and secure connectivity.
- Application Visibility and Control (AVC)
- Advanced firewall policy enforcement
- Intrusion prevention capabilities
- IPsec VPN connectivity
- Security event monitoring
- Centralized configuration and management
- Threat intelligence and security inspection
The appliance can be managed locally with Cisco Firepower Device Manager or centrally using Cisco management solutions, depending on the selected deployment architecture and licensing.
VPN & Secure Connectivity
Cisco Firepower 2130 supports up to 1.9 Gbps IPsec VPN throughput and up to 7,500 VPN peers. This provides secure connectivity between headquarters, branch offices, data centers and remote networks.
- Site-to-site IPsec VPN
- Secure remote network connectivity
- Encrypted enterprise communications
- Up to 7,500 VPN peers
- Up to 1.9 Gbps IPsec VPN throughput
Storage & Malware Storage Expansion
Cisco Firepower 2130 includes two SSD slots. The appliance ships with a 200 GB SSD in slot 1, while slot 2 is reserved for the Malware Storage Pack (MSP).
- 1 × 200 GB SSD installed
- 1 × additional SSD slot reserved for MSP
- Supports Cisco FPR2K-SSD200 storage
- MSP can store threat detection results
- Supports storage requirements associated with AMP features
- RAID is not supported
Power & Cooling
The Firepower 2130 is designed for enterprise rack deployments with redundant power and hot-swappable cooling capabilities.
- Two power-supply slots
- Ships with one 400W AC power supply
- Optional redundant AC power supply
- Optional DC power supply configuration
- 1+1 power redundancy with dual supplies
- Hot-swappable fan tray
- Four fans in the removable fan tray
Management & Security Administration
Cisco Firepower 2130 supports local and centralized security management options. Administrators can configure, monitor and manage security policies according to the selected Cisco deployment architecture.
- Cisco Firepower Device Manager for local management
- Centralized Cisco management options
- Security policy configuration
- Event monitoring and reporting
- Application visibility and control
- Threat intelligence integration
Enterprise Deployment Applications
Enterprise Edge Security
Deploy the Firepower 2130 at the network edge to enforce security policies between internal networks, internet connections and external services.
Data Center Security
Suitable for protecting data-center applications, server networks and segmented infrastructure with high-speed Ethernet connectivity.
Branch & Campus Security
Supports secure enterprise connectivity between branch, campus and central infrastructure through firewall and VPN capabilities.
DMZ & Network Segmentation
Multiple copper and 10G fiber interfaces support LAN, WAN, DMZ and segmented security-zone architectures.
Compact 1RU Rack-Mount Design
The Cisco FPR2130 is built in a compact 1RU chassis measuring approximately 4.4 × 42.9 × 50.2 cm. It is designed for installation in standard 19-inch enterprise network racks.
The platform uses front-to-rear airflow and is designed for enterprise server rooms, network operation centers and data-center environments.
Key Benefits
- Enterprise Cisco Firepower 2130 NGFW security appliance
- 5.4 Gbps Firewall + AVC throughput
- 5.4 Gbps Firewall + AVC + IPS throughput
- 5.4 Gbps IPS throughput
- 1.9 Gbps IPsec VPN throughput
- Up to 2 million concurrent AVC sessions
- Up to 30,000 new AVC connections per second
- Up to 7,500 VPN peers
- 12 × 10/100/1000BASE-T RJ-45 ports
- 4 × 1/10G SFP+ ports
- One network-module bay for expansion
- 64 GB system memory
- 200 GB SSD storage
- 1RU rack-mount form factor
- Cisco Secure Firewall Threat Defense support
| Product Name | Cisco FPR2130-NGFW-K9 Firepower 2130 Next-Generation Firewall – 5.4Gbps, 12× RJ-45, 4× 10G SFP+ |
|---|---|
| Weight | 2.300000 |
| Memory | 16 GB | 8 GB Flash memory |
| Interface | 12 × RJ-45 + 4 × 10G SFP+ + 1 × Network Module Slot |
| Ethernet | 10/100/1000 Mbps Base-T Gigabit Ethernet + 1G/10G SFP+ |
| I/O Port | 12 × RJ-45 Gigabit Ethernet + 4 × SFP+ + 1 × Management Port + RJ-45 Console + USB + 1 × Network Module Slot |
| Operating System | Cisco Secure Firewall Threat Defense (FTD) |
| Cpu | Cisco Dual Multicore CPU Architecture |
| Network/Network Standard | 10/100/1000BASE-T, IEEE 802.3at PoE+ |
| Dimensions | 4.37 × 26.87 × 43.69 cm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
