Cisco Meraki C9200L-24P-4G-M | 9200L-M 24-Port Gigabit PoE+ Switch, 370W
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Meraki C9200L-24P-4G-M
The Cisco Catalyst 9200L-M delivers enterprise-class performance through the seamless integration of Meraki cloud management with powerful Catalyst hardware. Designed to meet the growing demands of modern business applications, it ensures reliable connectivity, high-speed access, and simplified operations.
PRODUCT OVERVIEW

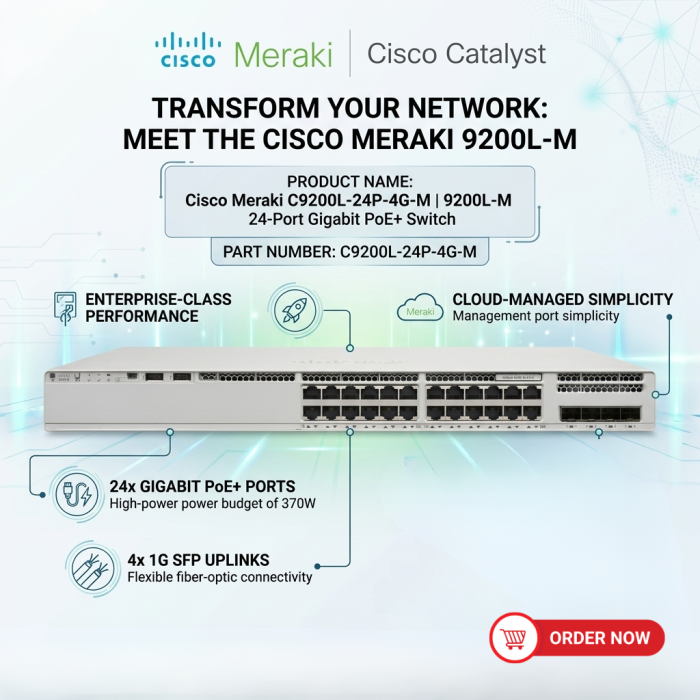

Cisco Meraki C9200L-24P-4G-M | 9200L-M 24-Port Gigabit PoE+ Switch
The Catalyst 9200L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed wifi access points, the Catalyst 9200L-M provides multigigabit ports, 80GB stacking with either four fixed 1G/10G or two fixed 25G uplinks. The Catalyst 9200L-M delivers resiliency with fast stack convergence. The Catalyst 9200L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9200L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
Meraki C9200L-24P-4G-M Product Highlights
- 24 x gigabit ethernet PoE/PoE+ interfaces
- 370 watt PoE budget with PoE+ support (740W available with optional secondary power supply)
- 56 Gbps of switching capacity
- Layer-3
- Four SFP 1G fixed uplinks
- PoE+ (30W per port) & IEEE 802.3at
- Hotswappable power supply (optional secondary power supply sold separately)
- Optional stacking kit allowing 8 switches in a stack with 80Gbps of stacking bandwidth (C9200L-STAK-KIT-M required for each C9200L being physically stacked)
- Adaptive Policy (Advanced License required)
| Product Name | Cisco Meraki C9200L-24P-4G-M | 9200L-M 24-Port Gigabit PoE+ Switch, 370W |
|---|---|
| Weight | 4.300000 |
| Memory | 2 GB DRAM and 4 GB Flash memory. |
| Ethernet | 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 Data Ports (Non-PoE) |
| I/O Port | 4 × 1G SFP Uplink Ports, RJ-45 Console Port, USB Type-A, USB Mini-Type B Console, Dedicated Management Port |
| Operating System | Cisco IOS XE (Meraki Managed Edition) |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, Layer 2 & Layer 3 Switching |
| Dimensions | 44.5 cm x 28.8 cm x 4.4 cm |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
