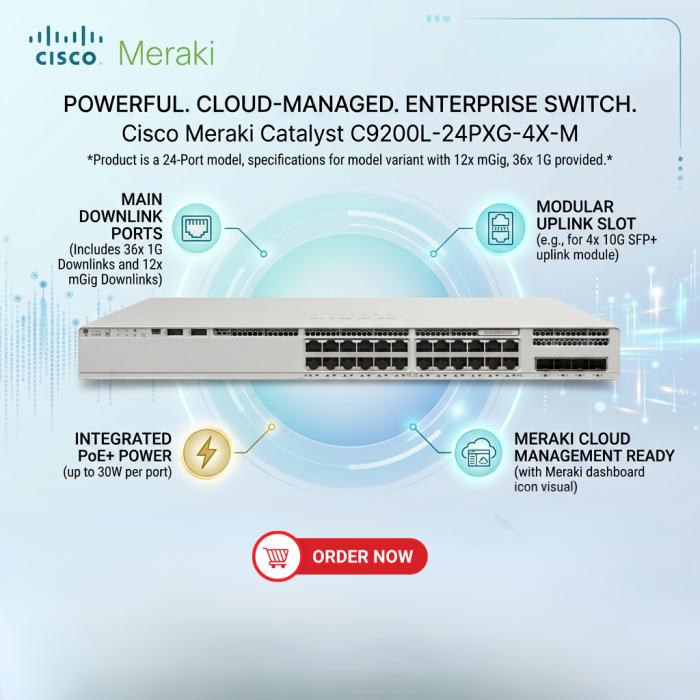

Cisco Meraki C9200L-24PXG-4X-M 9200L 48-port 12xmGig, 36x1G Meraki Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Meraki C9200L-24PXG-4X-M
Netyorker Equipment - Professional-grade networking equipment designed for enterprise, data center, and service provider deployments. Cisco Meraki C9200L-24PXG-4X-MCatalyst 9200L 24-Port PoE+ Switch with 10G Uplinks – Hardware Only, No License (New) offers reliable performance and robust features for mission-critical network infrastructure.
PRODUCT OVERVIEW
Cisco Meraki C9200L-24PXG-4X-M 9200L 48-port 12xmGig, 36x1G Meraki Switch
The Catalyst 9200L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed wifi access points, the Catalyst 9200L-M provides multigigabit ports, 80GB stacking with either four fixed 1G/10G or two fixed 25G uplinks. The Catalyst 9200L-M delivers resiliency with fast stack convergence. The Catalyst 9200L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9200L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
Meraki C9200L-24PXG-4X-M Product Highlights
- 8 x 10G ethernet PoE/PoE+ interfaces
- 16 x gigabit ethernet PoE/PoE+ interfaces
- Multi-gigabit (mGig) ports support 100M/1/2.5/5/10 of bandwidth over copper cabling
- 370 watt PoE budget with PoE+ support (740W available with optional secondary power supply)
- 272 Gbps of switching capacity
- Layer-3
- Four SFP+(10G/1G) fixed uplinks
- PoE+ (30W per port) & IEEE 802.3at
- Hotswappable power supply (optional secondary power supply sold separately)
- Optional stacking kit allowing 8 switches in a stack with 80Gbps of stacking bandwidth (C9200L-STAK-KIT-M required for each C9200L being physically stacked)
- Adaptive Policy (Advanced License required)
| Product Name | Cisco Meraki C9200L-24PXG-4X-M 9200L 48-port 12xmGig, 36x1G Meraki Switch |
|---|---|
| Weight | 4.300000 |
| Memory | 2 GB DRAM and 4 GB Flash memory. |
| Ethernet | 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 Data Ports (Non-PoE) |
| I/O Port | 4 × 1G SFP Uplink Ports, RJ-45 Console Port, USB Type-A, USB Mini-Type B Console, Dedicated Management Port |
| Operating System | Cisco IOS XE (Meraki Managed Edition) |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, Layer 2 & Layer 3 Switching |
| Dimensions | 44.5 cm x 28.8 cm x 4.4 cm |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
