Cisco Meraki C9200L-24T-4X-M - 24-port 1GbE Data - Cloud Managed Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Meraki C9200L-24T-4X-M
Netyorker Equipment - Professional-grade networking equipment designed for enterprise, data center, and service provider deployments. Cisco Meraki C9200L-24T-4X-M Network Switch – Hardware Only, No License (New) offers reliable performance and robust features for mission-critical network infrastructure.Enterprise networking solution delivering industry-leading performance, compatibility, and support for modern network architectures.
PRODUCT OVERVIEW
Cisco Meraki C9200L-24T-4X-M - 24-port 1GbE Data - Cloud Managed Switch
The Cisco Catalyst 9200L-M delivers enterprise-class performance through the seamless integration of Meraki cloud management with powerful Catalyst hardware. Designed to meet the growing demands of modern business applications, it ensures reliable connectivity, high-speed access, and simplified operations.Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
The Catalyst 9200L-M meets the demands of enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. It supports high-bandwidth applications and high-speed Wi-Fi access points with multigigabit ports and 80GB stacking. It offers either four fixed 1G/10G or two fixed 25G uplinks. The switch delivers resiliency through fast stack convergence. It uses Adaptive Policy with an over-the-wire tag to segment traffic into security groups, providing scalable security. Integrated with the Meraki dashboard, the Catalyst 9200L-M offers a simple yet powerful solution for demanding wired access applications.

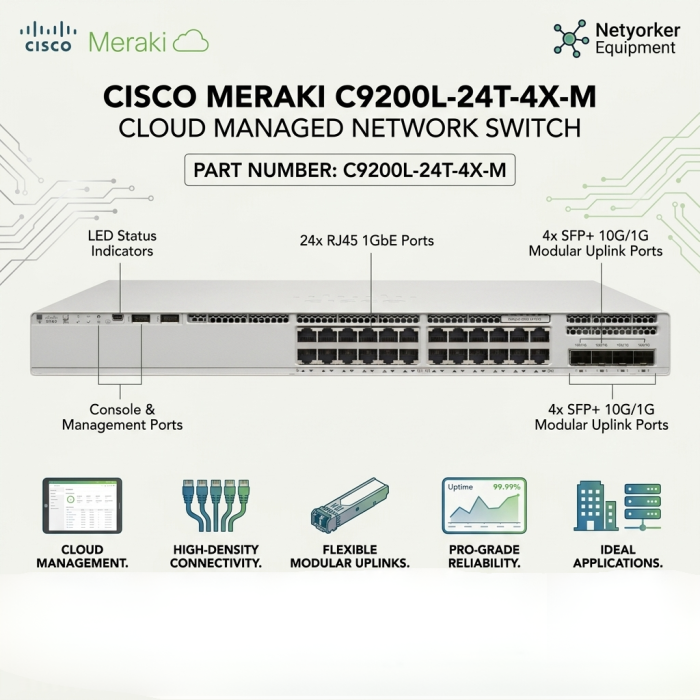

Meraki C9200L-24T-4X-M Product Highlights
- 24 x gigabit ethernet interfaces
- 128 Gbps of switching capacity
- Layer-3
- Four SFP+(10G/1G) fixed uplinks
- Hotswappable power supply (optional secondary power supply sold separately)
- Optional stacking kit allowing 8 switches in a stack with 80Gbps of stacking bandwidth (C9200L-STAK-KIT-M required for each C9200L being physically stacked)
| Product Name | Cisco Meraki C9200L-24T-4X-M - 24-port 1GbE Data - Cloud Managed Switch |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 128 Gbps |
| Memory | 2 GB DRAM and 4 GB Flash memory. |
| Interface | 24 1G ports data |
| Ethernet | 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 Data Ports (Non-PoE) |
| I/O Port | 4 × 1G/10G SFP+ Uplink Ports, RJ-45 Console Port, USB Type-A, USB Mini-Type B Console, Dedicated Management Port |
| Operating System | Cisco IOS XE (Meraki Managed Edition) |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
