Cisco Meraki C9200L-48P-4X-M Managed 48-Port Gigabit PoE+ Switch with 4x 10G SFP+ Uplinks
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Meraki C9200L-48P-4X-M
The Cisco Catalyst C9200L-48P-4X-M is an excellent solution for organizations seeking a secure, cloud-managed Gigabit PoE+ switch with enterprise-class performance, advanced Layer 2/Layer 3 capabilities, and high-speed 10G SFP+ uplinks for scalable and future-ready network infrastructure.
PRODUCT OVERVIEW

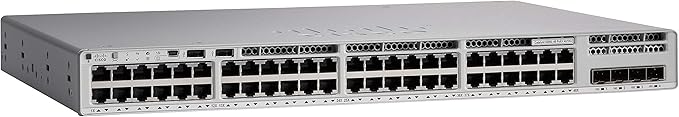

Cisco Meraki C9200L-48P-4X-M Managed 48-Port Gigabit PoE+ Switch with 4x 10G SFP+ Uplinks
The Cisco Catalyst C9200L-48P-4X-M is a high-performance, cloud-managed enterprise switch designed to provide secure, scalable, and reliable network connectivity for modern business environments. Featuring 48 Gigabit Ethernet PoE+ ports and 4 fixed 10G SFP+ uplink ports, this switch is ideal for powering network devices while delivering high-speed fiber connectivity for enterprise backbones and data aggregation. The hardware configuration matches the 48P-4X platform, with the "-M" model offering Cisco Meraki cloud management.
Managed through the Cisco Meraki Dashboard and powered by Cisco IOS XE, the C9200L-48P-4X-M simplifies network deployment, monitoring, and troubleshooting with centralized cloud-based management. Administrators can securely configure, monitor, and manage their entire network from virtually anywhere using an intuitive web interface, providing real-time visibility, remote diagnostics, firmware management, and advanced network analytics.
Built on Cisco's UADP 2.0 Mini ASIC architecture, the switch delivers enterprise-grade Layer 2 and Layer 3 switching capabilities with advanced VLAN support, Quality of Service (QoS), Access Control Lists (ACLs), multicast support, and intelligent traffic management. These features ensure optimized performance for business-critical applications including voice, video conferencing, cloud services, and large-scale data transfers.
The 48 Gigabit PoE+ ports supply both power and data over a single Ethernet cable, making the switch an excellent choice for deploying IP phones, wireless access points, IP surveillance cameras, IoT devices, and other PoE-enabled equipment. With a 370W PoE budget, organizations can efficiently power multiple connected devices while reducing installation costs and cable complexity.
The 4 dedicated 10G SFP+ uplink ports provide high-bandwidth fiber connectivity for connecting aggregation switches, servers, storage systems, and enterprise core networks. Combined with 2 GB DRAM, 4 GB Flash memory, and support for industry-standard networking protocols, the C9200L-48P-4X-M offers the performance, reliability, and scalability required by enterprise campuses, branch offices, healthcare facilities, educational institutions, retail stores, and commercial environments.
Key Features
- 48 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+ ports
- 4 × 1G/10G SFP+ fiber uplink ports
- Cisco Meraki cloud-managed platform
- Cisco IOS XE operating system
- Cisco UADP 2.0 Mini ASIC architecture
- Advanced Layer 2 and Layer 3 switching
- 370W PoE+ power budget
- 2 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, multicast, and enterprise-grade security
- High-speed 10G fiber uplink connectivity
- Centralized cloud monitoring and remote management
- Ideal for wireless networks, IP surveillance, VoIP deployments, enterprise campuses, and branch offices
Technical Specifications
- Model: C9200L-48P-4X-M
- Ethernet Ports: 48 × Gigabit Ethernet RJ-45 PoE+
- Uplink Ports: 4 × 1G/10G SFP+
- PoE Support: Yes (PoE+)
- PoE Budget: 370W
- CPU: Cisco UADP 2.0 Mini ASIC
- Memory: 2 GB DRAM
- Flash Memory: 4 GB
- Operating System: Cisco IOS XE (Meraki Managed)
- Management: Cisco Meraki Dashboard
- Switching: Layer 2 & Layer 3
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q VLAN
- Weight: Approximately 4.35 kg
| Product Name | Cisco Meraki C9200L-48P-4X-M Managed 48-Port Gigabit PoE+ Switch with 4x 10G SFP+ Uplinks |
|---|---|
| Weight | 4.300000 |
| Memory | 2 GB DRAM and 4 GB Flash memory. |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 Data Ports (Non-PoE) |
| I/O Port | 4 × 1G SFP Uplink Ports, RJ-45 Console Port, USB Type-A, USB Mini-Type B Console, Dedicated Management Port |
| Operating System | Cisco IOS XE (Meraki Managed Edition) |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, Layer 2 & Layer 3 Switching |
| Dimensions | 44.5 cm x 28.8 cm x 4.4 cm |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
