Cisco Meraki C9300L-48P-4X-M 48-Port Gigabit PoE+ Managed Switch with 4 x 10G SFP+ Uplinks, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-48P-4X-M
-
48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ RJ-45 ports
-
4 × 10G SFP+ high-speed uplink ports
-
IEEE 802.3af/at PoE+ support
-
Up to 30W PoE power per port
-
208 Gbps switching capacity
-
Up to 154.76 Mpps forwarding rate
-
Cisco IOS XE operating system
-
Network Advantage software license
-
Advanced Layer 2 and Layer 3 capabilities
-
Cisco StackWise-320 stacking technology

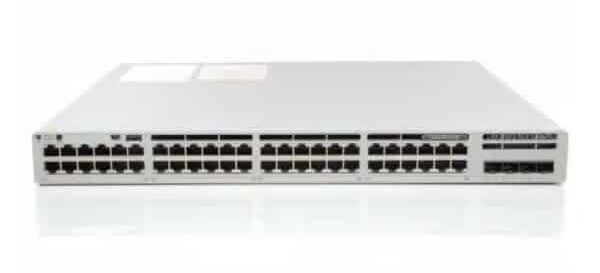

Cisco Catalyst C9300L-48P-4X-M
48-Port Gigabit PoE+ Managed Switch with 4 x 10G SFP+ Uplinks
High-Density Enterprise PoE+ Switching
The Cisco Catalyst C9300L-48P-4X-M is a high-density enterprise managed switch designed to deliver secure, reliable, and scalable network connectivity. It features 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ RJ-45 ports, allowing compatible devices to receive both network connectivity and power through a single Ethernet cable.
Four integrated 10G SFP+ uplink ports provide high-bandwidth connectivity to aggregation, distribution, and core network infrastructure. With Cisco IOS XE, Network Advantage licensing, advanced Layer 2 and Layer 3 capabilities, and StackWise-320 technology, the C9300L-48P-4X-M is well suited for demanding enterprise access-layer deployments.
48-Port PoE+ Power Delivery
The 48 PoE+ ports provide data and power to compatible network endpoints including wireless access points, IP phones, surveillance cameras, and IoT devices. PoE+ helps simplify installations by reducing the need for separate power connections at supported endpoints.
High-Density Access Layer
The 48-port configuration provides high-density connectivity for offices, campuses, schools, hospitals, government facilities, and corporate environments requiring multiple connected and powered devices.
4 x 10G SFP+ High-Speed Uplinks
Four integrated 10 Gigabit SFP+ uplink ports provide high-speed connectivity to aggregation switches, distribution layers, and core network infrastructure. These high-bandwidth interfaces help accommodate increasing traffic requirements and provide flexible fiber connectivity for modern enterprise networks.
High-Performance Switching
The C9300L-48P-4X-M provides up to 208 Gbps switching capacity and up to 154.76 Mpps forwarding performance, supporting efficient handling of enterprise network traffic across connected endpoints and high-speed uplinks.
Cisco IOS XE and Network Advantage
The switch operates on Cisco IOS XE, providing a modern software platform for enterprise switching, routing, security, automation, and network management. The Network Advantage license supports advanced Layer 2 and Layer 3 networking capabilities.
Advanced Layer 3 Networking
Advanced Layer 3 capabilities support routing between VLANs and network segments, helping organizations improve network segmentation, traffic management, scalability, and integration with larger enterprise network architectures.
Enterprise Network Security
Cisco security capabilities help protect users, endpoints, applications, and network infrastructure against unauthorized access and common network threats.
Cisco StackWise-320
Cisco StackWise-320 technology allows compatible Catalyst 9300L switches to operate together as a single logical system. This simplifies configuration, management, and network expansion for enterprise access-layer deployments.
Intelligent Network Management
Network administrators can configure, monitor, troubleshoot, and automate the switch using Cisco enterprise management and programmability tools.
VLAN, QoS and Traffic Management
The C9300L-48P-4X-M supports enterprise traffic management capabilities including VLAN segmentation and Quality of Service (QoS). These features help administrators separate network traffic, prioritize business-critical applications, and efficiently manage voice, video, wireless, and data services.
Ideal Applications
Key Specifications
48 x 10/100/1000 Mbps RJ-45 PoE+
4 x 10G SFP+
Up to 208 Gbps
Up to 154.76 Mpps
Cisco IOS XE
Network Advantage
High-Density PoE+ Switching with 10G Uplinks
The Cisco Catalyst C9300L-48P-4X-M combines 48 Gigabit Ethernet PoE+ ports, four 10G SFP+ uplinks, advanced Layer 3 capabilities, Cisco IOS XE, Network Advantage licensing, enterprise security, and StackWise-320 technology. It provides a reliable and scalable access-layer solution for organizations requiring high-density Gigabit connectivity, integrated PoE+ power, and high-speed uplinks for modern enterprise networks.
| Product Name | Cisco Meraki C9300L-48P-4X-M 48-Port Gigabit PoE+ Managed Switch with 4 x 10G SFP+ Uplinks, Network Advantage |
|---|---|
| Weight | 8.250000 |
| Switching Capacity | 208 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 48 × 10/100/1000 Mbps RJ-45 PoE+ |
| Ethernet | 10/100/1000 Gigabit Ethernet |
| I/O Port | 4 × 10G SFP+ Uplink, RJ-45 Console, USB Console, USB |
| Operating System | Cisco IOS XE |
| Cpu | 8-Core |
| Network/Network Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3ae, 802.1Q, 802.1X |
| Dimensions | 4.4 × 44.5 × 40.9 cm |
| Operating Temperature | 0°C to 45°C |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
Product Datasheet
