Product Overview

The Cisco Meraki MR36-HW is a cloud-managed Wi-Fi 6 wireless access point designed for modern enterprise, education, hospitality, healthcare, retail and office environments. It combines 2.4 GHz and 5 GHz 802.11ax client access radios with advanced security, spectrum analysis, location analytics and Bluetooth Low Energy capabilities.

The MR36 provides a combined dual-radio aggregate frame rate of up to 1.5 Gbps, with up to 1,201 Mbps on the 5 GHz band and 286 Mbps on the 2.4 GHz band.

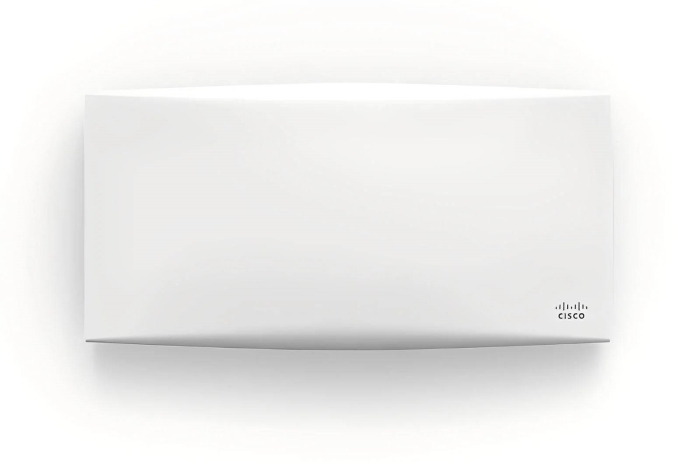

Product Images

Wi-Fi 6 Performance

The MR36 uses 802.11ax technology to provide improved wireless efficiency and capacity in environments with many connected devices. Its 2x2:2 radios use two spatial streams and support modern Wi-Fi technologies including OFDMA, MU-MIMO, beamforming, BSS Coloring and Target Wake Time.

• IEEE 802.11ax / Wi-Fi 6
• 2x2:2 MIMO on 2.4 GHz
• 2x2:2 MIMO on 5 GHz
• OFDMA support
• MU-MIMO support
• Beamforming
• BSS Coloring
• Target Wake Time support
• Up to 1024-QAM

Dual-Band Wireless Connectivity

The MR36 provides simultaneous 2.4 GHz and 5 GHz wireless connectivity. The 5 GHz radio supports 802.11a/n/ac/ax, while the 2.4 GHz radio supports 802.11b/g/n/ax.

• 2.4 GHz 802.11b/g/n/ax
• 5 GHz 802.11a/n/ac/ax
• 2.4 GHz maximum data rate: 286 Mbps
• 5 GHz maximum data rate: 1,201 Mbps
• 20 / 40 / 80 MHz channel support
• Concurrent dual-band operation

Advanced Wireless Security

The MR36 includes enterprise wireless security capabilities and real-time wireless intrusion detection and prevention features. The integrated security functionality helps organizations monitor wireless environments and protect connected clients.

• Integrated Layer 7 firewall
• Real-time WIDS/WIPS
• Automatic rogue access point containment
• WPA2-Enterprise
• WPA3-Personal
• WPA3-Enterprise
• WPA3 Enhanced Open / OWE
• 802.1X authentication
• EAP-TLS and EAP-TTLS
• AES encryption

Gigabit Ethernet Connectivity

A 10/100/1000BASE-T RJ-45 Ethernet interface provides the wired network connection for the access point. The MR36 can be powered through the same Ethernet connection using compatible PoE infrastructure.

• 1 × 10/100/1000BASE-T RJ-45
• Gigabit Ethernet connectivity
• 802.3af Power over Ethernet
• 37–57V PoE input range
• 12V DC alternative input

Bluetooth Low Energy

The integrated 2.4 GHz Bluetooth Low Energy radio supports Bluetooth beaconing and scanning. This provides additional capabilities for location-aware applications and IoT deployments.

• Integrated Bluetooth Low Energy radio
• BLE beacon support
• BLE scanning
• IoT and location analytics applications

Cisco Meraki Cloud Management

The MR36 is managed through the Cisco Meraki cloud platform, allowing administrators to configure, monitor and troubleshoot wireless networks through a centralized management interface.

• Centralized Meraki Dashboard management
• Cloud-based configuration
• Remote monitoring
• Wireless analytics
• RF monitoring and optimization
• Remote troubleshooting
• Firmware management

Physical Installation

The MR36 is designed for flexible indoor deployment and can be mounted on ceilings, walls or desktops. Standard mounting hardware is included, with support for common ceiling tile rails and junction-box installations.

• Ceiling mounting
• Wall mounting
• Desktop deployment
• Standard mounting hardware included
• Security screw options
• Kensington lock hard point

Deployment Applications

• Enterprise offices
• Schools and educational institutions
• Healthcare environments
• Retail locations
• Hotels and hospitality
• Branch offices
• High-density wireless environments
• IoT and location-aware deployments

Why Choose Cisco Meraki MR36-HW?

The Cisco Meraki MR36-HW combines Wi-Fi 6 efficiency, dual-band 2x2:2 MIMO, integrated wireless security, BLE capabilities and centralized cloud management in a compact access point. With Gigabit Ethernet and 802.3af PoE support, it is designed for reliable indoor wireless deployments across enterprise, education, healthcare, retail and hospitality environments.
