Product Overview

The Cisco Meraki MS125-48FP-HW is a 48-port Gigabit cloud-managed Layer 2 switch designed for modern branch and campus networks. It combines 48 × 10/100/1000BASE-T RJ-45 ports with 4 × 10G SFP+ uplinks, providing high-speed connectivity between access devices and the network core.

The full-power 740W PoE budget allows the switch to deliver power and network connectivity to compatible PoE and PoE+ devices such as wireless access points, IP phones, surveillance cameras and other network endpoints.

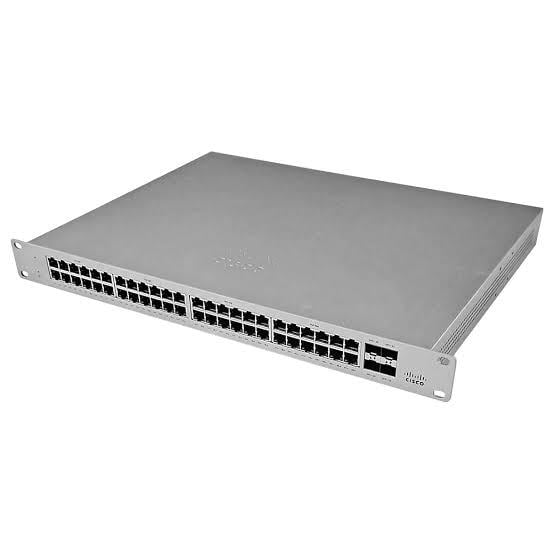

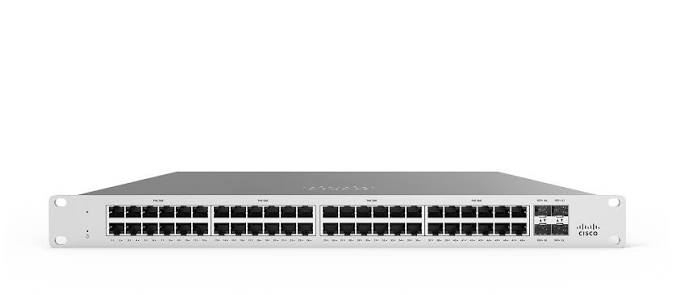

Product Images

48-Port Gigabit Connectivity

The MS125-48FP-HW provides 48 Gigabit Ethernet RJ-45 access ports supporting 10/100/1000 Mbps connectivity. The ports use auto-negotiation and auto-MDIX to simplify network deployment.

• 48 × 10/100/1000BASE-T RJ-45 ports
• Auto-negotiation support
• Auto-MDIX crossover detection
• PoE+ support across the access ports
• Suitable for high-density endpoint deployments

10G SFP+ Uplinks

Four integrated 10G SFP+ interfaces provide high-speed uplink connectivity for aggregation, distribution and network-core connections. These interfaces provide substantially higher uplink bandwidth than traditional 1G SFP interfaces.

• 4 × 10G SFP+ uplink ports
• High-speed fiber connectivity
• Suitable for aggregation and backbone connections
• Supports scalable branch and campus network designs

740W PoE+ Power Budget

The MS125-48FP-HW is the high-power model in the MS125 family, providing a total 740W PoE budget. This makes it suitable for deployments with a high number of powered network endpoints.

• 740W total PoE/PoE+ switch budget
• Supports powered network endpoints
• Ideal for wireless access points and IP phones
• Suitable for IP surveillance and IoT deployments
• Built-in power supply

Cisco Meraki Cloud Management

Cisco Meraki switches are managed through the Meraki Dashboard, providing centralized visibility and configuration for distributed network environments. Administrators can monitor connected devices, configure switching policies and manage network infrastructure through a cloud-based management interface.

• Centralized Cisco Meraki Dashboard management
• Remote network administration
• Automatic firmware upgrade capabilities
• Remote packet capture tools
• SNMP and Syslog integration
• IPv4/IPv6 ACL support
• 802.1Q VLAN tagging
• DHCP Snooping
• 802.1X authentication

Network Features

• Layer 2 access switching
• 10G uplink connectivity
• 802.1Q VLAN tagging
• IPv4 and IPv6 ACL support
• 802.1X authentication
• DHCP Snooping
• SNMP and Syslog integration
• Quality of Service capabilities
• Remote packet capture through Meraki Dashboard
• Automatic firmware upgrade support

Deployment Applications

The MS125-48FP-HW can be deployed as an access switch in branch offices, enterprise networks, campus environments and other high-density locations requiring Gigabit Ethernet connectivity and substantial PoE capacity.

• Enterprise branch networks
• Campus network access
• Wireless access point deployments
• IP phone deployments
• IP surveillance systems
• IoT and smart-building devices
• High-density Gigabit Ethernet environments

Hardware & Power

The switch uses an integrated power supply and is designed for 1U rack installation. Cisco Meraki specifies a 100–240 VAC input range at 47–63 Hz. The MS125-48FP has a maximum power load of approximately 845.4W under the documented maximum operating condition.

Why Choose MS125-48FP-HW?

With 48 Gigabit PoE+ access ports, four 10G SFP+ uplinks and a 740W PoE budget, the Cisco Meraki MS125-48FP-HW is designed for network environments that require a high port count, substantial device power capacity and centralized cloud management.
