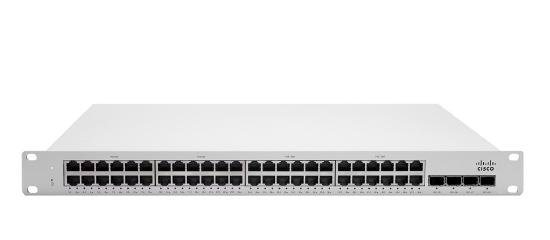

Cisco Meraki MS350-48FP-HW 48-Port Gigabit PoE+ Layer 3 Managed Switch with 4x 10G SFP+ Uplinks, 740W PoE Budget
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco MS350-48FP-HW
-
PoE Budget: 740W
-
PoE Standard: 802.3af / 802.3at PoE+
-
Maximum PoE per port: Up to 30W
-
Uplinks: 4 × 10GbE SFP+
-
Stacking Ports: 2
-
Stacking Bandwidth: 160 Gbps
-
Layer 3 Routing: Yes
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 127.98 Mpps
-
Management: Cisco Meraki Dashboard
Cisco Meraki MS350-48FP-HW 48-Port Gigabit PoE+ Layer 3 Cloud Managed Switch
Enterprise-grade Cisco Meraki cloud-managed switch featuring 48 Gigabit PoE+ access ports, 4 x 10GbE SFP+ uplinks, 740W PoE budget, Layer 3 switching, 160 Gbps physical stacking bandwidth and centralized cloud-based network management.
Cisco Meraki MS350-48FP-HW Overview
The Cisco Meraki MS350-48FP-HW is a high-performance, cloud-managed Layer 3 access switch designed for enterprise networks, campus environments, branch offices, data centers and professional network infrastructure deployments.
The switch provides 48 x 10/100/1000BASE-T RJ45 Gigabit Ethernet ports with IEEE 802.3af and IEEE 802.3at PoE+ support. This enables compatible wireless access points, IP phones, security cameras and other powered Ethernet devices to receive both network connectivity and electrical power over a single Ethernet cable.
For high-speed uplink connectivity, the MS350-48FP-HW includes 4 x 10GbE SFP+ interfaces. These interfaces can be used to connect the switch to aggregation, distribution or core network infrastructure while providing high-speed data transfer between network layers.
The MS350 series also provides physical stacking capabilities with up to 160 Gbps stacking bandwidth, allowing supported switches to be combined into a unified switching architecture.
Cisco Meraki cloud management provides centralized visibility, configuration, monitoring and troubleshooting through the Meraki Dashboard, making the MS350-48FP-HW suitable for organizations managing local as well as distributed network environments.
Key Features of MS350-48FP-HW
Port Configuration & Connectivity
The Cisco Meraki MS350-48FP-HW combines high-density Gigabit access ports with high-speed 10GbE uplinks. This configuration allows organizations to connect a large number of wired and PoE-powered endpoints while maintaining high-speed connections toward upstream network infrastructure.
| Port Type | Quantity | Details |
|---|---|---|
| Gigabit Ethernet | 48 | 10/100/1000BASE-T RJ45 |
| 10GbE SFP+ | 4 | 10 Gigabit Ethernet uplinks |
| Hardware Stacking | 2 | Dedicated physical stacking interfaces |
| Management | 1 | Dedicated management interface |
PoE+ Power Delivery
With a 740W total PoE budget, the Cisco Meraki MS350-48FP-HW is designed for network environments where a large number of endpoints require Power over Ethernet. PoE technology allows supported devices to receive power and data through a single Ethernet connection, helping simplify network installations.
Supported PoE Applications
- Enterprise wireless LAN access points
- IP telephones and VoIP endpoints
- IP security and surveillance cameras
- Network-connected sensors
- Compatible PoE-powered network devices
- Other IEEE-compliant PoE and PoE+ endpoints
| PoE Specification | Details |
|---|---|
| PoE Standard | IEEE 802.3af |
| PoE+ Standard | IEEE 802.3at |
| Total PoE Budget | 740W |
| Maximum Per Port | Up to 30W |
High-Speed Network Performance
The MS350-48FP-HW provides a 176 Gbps switching capacity and forwarding performance of up to 127.98 Mpps. This combination of high port density, Gigabit access connectivity and 10GbE uplinks is designed for demanding enterprise access-layer environments.
- 176 Gbps switching capacity
- 127.98 Mpps forwarding rate
- 4 x 10GbE SFP+ uplinks
- 160 Gbps physical stacking bandwidth
- 32K MAC address table
- Up to 9600-byte jumbo frames
160 Gbps Physical Stacking
The Cisco Meraki MS350-48FP-HW supports physical switch stacking with up to 160 Gbps stacking bandwidth. Stacking can help organizations build scalable access-layer deployments by allowing supported switches to operate as part of a unified switching architecture.
Physical stacking is useful in enterprise and campus networks where additional switch capacity may be required while maintaining centralized management and simplified network administration.
- Dedicated hardware stacking interfaces
- Up to 160 Gbps stacking bandwidth
- Scalable access-layer architecture
- Centralized management through Meraki Dashboard
Layer 3 Networking
The Cisco Meraki MS350-48FP-HW provides Layer 3 networking capabilities for enterprise environments requiring more than basic Layer 2 switching. Its routing functionality allows the switch to participate in larger network architectures and support segmented network environments.
- Layer 3 switching
- Static routing
- OSPF support
- DHCP server functionality
- DHCP relay functionality
- VLAN support
- VRRP / warm spare support
Cisco Meraki Cloud Management
The MS350-48FP-HW is managed through the Cisco Meraki Dashboard, providing centralized network administration through a cloud-based management platform. Administrators can configure switch settings, monitor network activity, review connected devices and troubleshoot infrastructure remotely.
Management Benefits
- Centralized switch configuration
- Remote network monitoring
- Cloud-based administration
- Network visibility
- Remote troubleshooting
- Configuration management
- Centralized firmware management
- Deployment support for distributed locations
Applications
Designed for enterprise access-layer environments requiring Gigabit connectivity, PoE+, Layer 3 networking and centralized cloud management.
Supports high-density wired access, 10GbE uplinks and physical stacking for scalable campus network infrastructure.
Cloud-based management allows network administrators to manage distributed branch network infrastructure from a centralized platform.
The 740W PoE budget supports compatible enterprise wireless access points and other powered network infrastructure.
PoE connectivity can simplify deployment of compatible IP surveillance cameras and network security devices.
Provides Gigabit network connectivity and PoE power for compatible IP phones and VoIP endpoints.
Rack-Mount Installation
The 1U rack-mount design allows the Cisco Meraki MS350-48FP-HW to be installed in standard professional network racks and server cabinets. Its high port density allows organizations to consolidate numerous network connections into a compact rack footprint.
The combination of 48 Gigabit access ports, 4 x 10GbE SFP+ uplinks and 160 Gbps physical stacking bandwidth makes the MS350-48FP-HW suitable for access-layer deployments that require both scalability and high-speed uplink connectivity.
Why Choose the MS350-48FP-HW?
The Cisco Meraki MS350-48FP-HW combines high-density Gigabit Ethernet, PoE+ power delivery, 10GbE uplinks, Layer 3 networking and physical stacking in a professional 1U platform. Its cloud-managed architecture provides centralized visibility and administration for enterprise, campus and distributed network environments.
- 48 Gigabit PoE+ access ports
- 740W total PoE budget
- 4 x 10GbE SFP+ uplinks
- 176 Gbps switching capacity
- 127.98 Mpps forwarding rate
- 160 Gbps stacking bandwidth
- Layer 3 routing capabilities
- Cisco Meraki Dashboard management
- 1U rack-mount form factor
| Product Name | Cisco Meraki MS350-48FP-HW 48-Port Gigabit PoE+ Layer 3 Managed Switch with 4x 10G SFP+ Uplinks, 740W PoE Budget |
|---|---|
| Weight | 5.200000 |
| Switching Capacity | 176 Gbps |
| Interface | 48 × 10/100/1000 Mbps Gigabit Ethernet + 4 × 10GbE SFP+ |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet |
| I/O Port | 48 × 10/100/1000 Full PoE + 4 × 10G SFP+ Uplink |
| Operating System | Cisco Meraki MX Firmware |
| Cpu | Cisco Multicore Processor |
| Network/Network Standard | Ethernet |
| Dimensions | 483 × 440 × 44mm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
