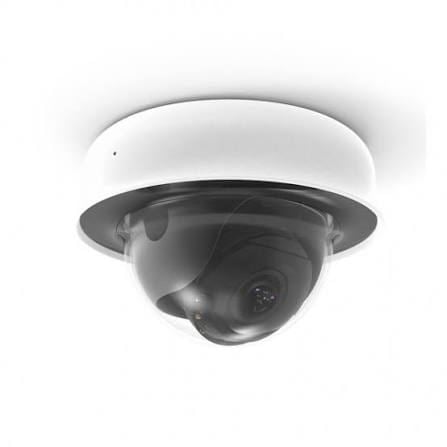

Cisco Meraki MV22-HW Indoor Varifocal Dome Security Camera 4MP 256GB PoE
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The MV22-HW
-
4MP progressive CMOS image sensor
-
1080p HD video recording up to 20 fps
-
256GB high-endurance SSD storage
-
3–9mm varifocal lens
-
Up to 3× optical zoom
Indoor Varifocal Dome Security Camera with 256GB Storage
The Cisco Meraki MV22-HW is an indoor cloud-managed varifocal dome camera featuring a 4MP CMOS image sensor, 3–9mm lens, 256GB high-endurance SSD, 1080p recording, IR illumination and integrated Meraki Dashboard management.
Key Features
4MP CMOS Sensor
Uses a 1/3-inch 4MP progressive CMOS image sensor with 2688 × 1520 native sensor resolution.
256GB SSD Storage
Built-in 256GB high-endurance solid-state storage provides local video storage without requiring a separate NVR.
Varifocal Lens
The 3–9mm varifocal lens provides up to 3× optical zoom and flexible framing for indoor installations.
1080p Recording
Records 1920 × 1080 HD video using H.264 encoding at up to 20 frames per second.
IR Night Vision
Integrated infrared illumination provides visibility up to 30 metres in low-light and nighttime conditions.
Cloud Managed
Camera configuration, monitoring and video management are integrated with the Cisco Meraki Dashboard.
Camera & Video
- Image Sensor: 1/3-inch 4MP Progressive CMOS
- Sensor Resolution: 2688 × 1520
- Recording Resolution: 1920 × 1080
- Video Encoding: H.264
- Frame Rate: Up to 20 fps
- Lens: 3–9mm Varifocal
- Optical Zoom: Up to 3×
- Horizontal Field of View: 36°–112°
- Vertical Field of View: 20°–57°
- Diagonal Field of View: 42°–138°
- HDR: Supported
- Audio: Built-in microphone
Night Vision & Low-Light Performance
Networking & Connectivity
- Ethernet: 1 × 10/100/1000 Base-T RJ-45
- PoE: IEEE 802.3af
- Wi-Fi: 802.11a/b/g/n/ac
- Wireless Bands: 2.4GHz and 5GHz
- Bluetooth: 2.4GHz BLE
- Wireless Security: WPA, WPA2-PSK and WPA2-Enterprise
- Authentication: 802.1X EAP-TTLS
Cloud Management & Security
Cisco Meraki MV22-HW is designed for cloud-managed video surveillance. Administrators can manage cameras through the Meraki Dashboard, providing centralized visibility, configuration and video access.
The camera supports full-disk AES-256 encryption, management encryption, two-factor authentication and enterprise wireless security.
Physical Design
- Compact indoor dome form factor
- 149mm diameter × 97mm height
- 706g camera weight without mounting plate
- 842g weight with mounting plate
- IK08 vandal resistance
- Integrated status LED
- Reset button
- Female RJ-45 Ethernet connector
- Wall mounting hardware included
Applications
Offices
Suitable for monitoring offices, meeting areas and common spaces.
Retail
Varifocal optics provide flexible coverage for indoor retail environments.
Commercial Buildings
Cloud management simplifies centralized camera administration.
Corridors & Entrances
Adjustable focal length helps optimize framing for entry points and corridors.
Indoor Security
IR illumination and onboard storage support continuous security monitoring.
Business Surveillance
Integrated analytics and cloud-based management support enterprise deployments.
What's in the Box
- MV22-HW Camera
- Quick Start & Installation Guide
- Wall Mounting Kit
- Junction Box Adapter Plate
| Product Name | Cisco Meraki MV22-HW Indoor Varifocal Dome Security Camera 4MP 256GB PoE |
|---|---|
| Weight | 1.200000 |
| Image Sensor | 1"-Type |
| Max Recording Modes | 1080p HD, H.264, up to 20 fps |
| Max Video Output | 1080p HD (1920 × 1080) |
| Shutter Type | Electronic |
| Video I/O | 1 × 10/100/1000 Base-T Ethernet (RJ-45) |
| Audio I/O | Built-in Microphone |
| Power I/O | 802.3af PoE |
| Other I/O | RJ-45 Ethernet, Reset Button |
| Dimensions | 14.9 × 9.7 cm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
