Cisco Meraki MV32-HW 8.4MP Indoor 360° Fisheye Security Camera 256GB PoE

SKU

MV32-HW

Be the first to review this product

Limited Stock - Running Out Quickly

Notify me when the price drops

Call For The Best Price

Contact our sales team today for exclusive pricing and product availability.

Call Now: +971-4-3360300

Call: +971-4-3360300 | Email: [email protected]

Key Features Of The MV32-HW

8.4MP progressive CMOS image sensor
4.2MP effective recording resolution
Up to 2058 × 2058 video recording
360° fisheye camera
180° horizontal and 180° vertical field of view
1.19mm fixed fisheye lens
256GB high-endurance SSD
H.264 video encoding
Up to 15 fps

Skip to the end of the images gallery

Skip to the beginning of the images gallery

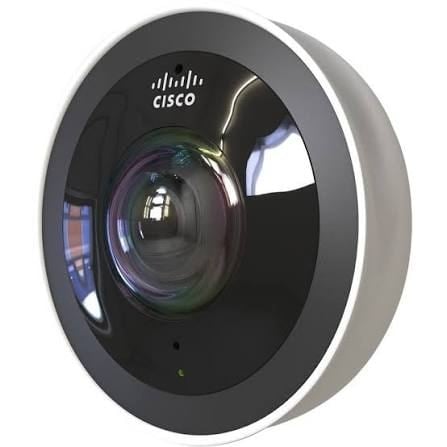

Cisco Meraki MV32-HW

8.4MP Indoor 360° Fisheye Smart Security Camera with 256GB SSD

Cisco Meraki MV32-HW is an indoor 360° fisheye smart camera featuring an 8.4MP progressive CMOS sensor, 256GB high-endurance solid-state storage, 180° horizontal and vertical field of view, integrated audio and cloud-based Meraki Dashboard management.

Cisco Meraki MV32-HW provides immersive 360° video coverage using a compact fisheye camera design. Its 1.19mm fixed fisheye lens captures a 180° horizontal and 180° vertical field of view, allowing organizations to monitor an entire indoor area from a single camera.

Key Features

360° Fisheye Coverage

The MV32-HW provides 180° horizontal and 180° vertical coverage for immersive monitoring of indoor environments.

8.4MP Image Sensor

Features a 1/2.5-inch 8.4MP progressive CMOS sensor with 4.2MP effective recording capability.

256GB SSD Storage

Integrated 256GB high-endurance solid-state storage enables onboard video recording.

4.2MP Recording

Records up to 2058 × 2058 video using H.264 encoding at up to 15 frames per second.

Digital PTZ

Users can digitally pan, tilt and zoom within the recorded 360° scene through the Meraki Dashboard.

Cloud Managed

Camera management, monitoring and video access are integrated with the Cisco Meraki Dashboard.

Camera & Video

Image Sensor: 1/2.5-inch 8.4MP Progressive CMOS
Effective Resolution: 4.2MP
Maximum Recording: 2058 × 2058
Video Encoding: H.264
Maximum Frame Rate: Up to 15fps
Lens: 1.19mm Fixed Fisheye
Horizontal Field of View: 180°
Vertical Field of View: 180°
Digital PTZ: Supported
Audio: Built-in Microphone

360° Fisheye Technology

Unlike conventional PTZ cameras, the MV32-HW continuously captures the surrounding scene. Users can then digitally pan, tilt and zoom into different areas of the recorded 360° image through the Meraki Dashboard.

Storage & Recording

256GB SSD

High-endurance solid-state storage is integrated directly into the camera.

Cloud Augmented Storage

Locally stored video can be complemented by cloud-based metadata and optional cloud archive capabilities.

Flexible Retention

Recording and retention settings can be configured for continuous and motion-based surveillance requirements.

Networking & Wireless

Ethernet: 1 × 10/100/1000 Base-T RJ-45
PoE: IEEE 802.3af
Wi-Fi: 802.11a/b/g/n/ac
Wireless Bands: 2.4GHz and 5GHz
MIMO: 1×1 MU-MIMO
Channel Width: 20, 40 and 80MHz
Wireless Security: WPA, WPA2-PSK and WPA2-Enterprise
Authentication: 802.1X EAP-TTLS

Cloud Management & Analytics

The MV32-HW is managed through the Cisco Meraki Dashboard, providing centralized camera configuration, live viewing, historical video access and video-wall management.

The camera includes onboard processing and machine-learning capabilities for intelligent object detection and analytics.

Full-disk AES-256 encryption, management encryption and two-factor authentication help protect camera data and access.

Applications

Retail Stores

360° coverage helps monitor large retail spaces from a single ceiling-mounted camera.

Offices

Suitable for monitoring open offices, common areas and other indoor business environments.

Commercial Buildings

Centralized cloud management simplifies deployment across multiple locations.

Warehouses

Wide-area fisheye coverage can reduce the number of cameras required for selected indoor areas.

Public Areas

Suitable for monitoring lobbies, reception areas and other indoor spaces.

Business Surveillance

Integrated storage, analytics and cloud management support enterprise surveillance deployments.

What's in the Box

MV32-HW Camera Hardware
Quick Start & Installation Guide
Wall/Ceiling Mounting Hardware

Important: Cisco Meraki MV cameras require an applicable Meraki MV license to operate. The MV32-HW hardware includes 256GB onboard storage; licensing is purchased separately.

More Information
Product Name	Cisco Meraki MV32-HW 8.4MP Indoor 360° Fisheye Security Camera 256GB PoE
Weight	1.200000
Image Sensor	1"-Type
Max Recording Modes	4.2MP / 2058 × 2058, H.264, up to 15 fps
Max Video Output	2058 × 2058
Shutter Type	Electronic
Optical Zoom	24x Optical
Internal Recording	Yes — 256GB SSD
Video I/O	1 × RJ-45 Gigabit Ethernet
Audio I/O	Built-in Microphone
Power I/O	802.3af PoE
Other I/O	RJ-45 Ethernet, Reset Button
Dimensions	14.9 × 9.7 cm
Manufacturer	Cisco
Color	Silver
Country of Origin	United States
