Cisco Meraki MX450-HW Security & SD-WAN Appliance, 10 Gbps Firewall, 10G SFP+, 24 LAN Ports
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco MX450-HW
-
Enterprise-grade Security & SD-WAN
-
10 Gbps maximum NAT firewall throughput
-
7 Gbps advanced security services throughput
-
6.5 Gbps site-to-site VPN throughput
-
Up to 5,000 site-to-site VPN tunnels
-
Recommended for networks with up to 10,000 devices
-
Dual 10G SFP+ dedicated WAN interfaces
-
8 × 10G SFP+ LAN interfaces
-
8 × 1G SFP LAN interfaces
-
8 × 1G RJ45 LAN interfaces
-
Cloud-managed through Cisco Meraki Dashboard
-
Zero-touch deployment

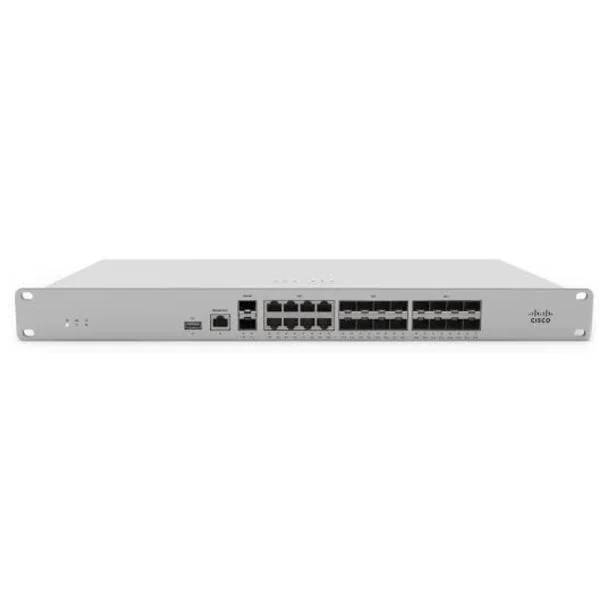

Cisco Meraki MX450-HW Security & SD-WAN Appliance
High-performance cloud-managed security appliance designed for large campus environments, enterprise networks and large VPN topologies, delivering up to 10 Gbps firewall throughput with extensive 1G and 10G connectivity.
Product Overview
The Cisco Meraki MX450-HW is an enterprise Security and SD-WAN appliance designed for large campus deployments, distributed enterprise networks and large VPN concentration environments. It combines advanced firewall services, SD-WAN capabilities, VPN connectivity, traffic management and centralized cloud administration in a 1U rack-mount platform.
The MX450 provides two dedicated 10G SFP+ WAN interfaces and high-density LAN connectivity consisting of eight 10G SFP+, eight 1G SFP and eight 1G RJ45 ports. This combination allows organizations to connect high-speed uplinks, aggregation networks and conventional Gigabit Ethernet devices through a single enterprise security platform.
High-Performance Security
Provides up to 10 Gbps maximum NAT firewall throughput for high-performance enterprise network security.
Supports up to 7 Gbps advanced security services throughput for demanding enterprise environments.
High-performance VPN processing supports large distributed network and VPN concentrator deployments.
Designed to support large VPN topologies with up to 5,000 site-to-site VPN tunnels under Cisco's specified test conditions.
Advanced SD-WAN & Networking
- Cloud-managed Cisco Meraki SD-WAN platform
- Automated site-to-site Auto VPN
- Client VPN support
- Multiple WAN IP and NAT support
- VLAN and DHCP services
- Static and dynamic routing
- Traffic shaping and application visibility
- WAN monitoring and connectivity analytics
- Centralized management through Meraki Dashboard
- Zero-touch remote deployment
Enterprise Connectivity
Two dedicated SFP+ 10 Gigabit Ethernet ports provide high-speed WAN uplink connectivity.
Eight 10 Gigabit SFP+ interfaces provide high-speed LAN and aggregation connectivity.
Eight Gigabit SFP interfaces support fiber-based enterprise network connections.
Eight Gigabit RJ45 interfaces provide connectivity for conventional Ethernet devices.
Security & Firewall Features
- Next-generation firewall capabilities
- Layer 3–7 firewall services
- Intrusion detection and prevention capabilities
- Advanced security services
- 1:1 NAT
- DMZ support
- Identity-based security policies
- VLAN and ACL-based policy control
- User and device quarantine
- Application-aware traffic management
- Centralized event and security monitoring
Cisco Meraki Dashboard Management
The MX450 is managed through the Cisco Meraki Dashboard, providing centralized visibility and configuration without requiring traditional on-site staging. Administrators can monitor network performance, security events, VPN connectivity, clients, applications and interfaces from a centralized cloud platform.
- Web-based centralized management
- Zero-touch deployment
- Automatic firmware updates
- Network and client monitoring
- Historical usage statistics
- VPN tunnel monitoring
- Event logs and troubleshooting tools
- Role-based administration
- Two-factor authentication support
- API-based management capabilities
Enterprise Deployment Applications
- Large campus network security
- Enterprise WAN edge
- SD-WAN deployments
- Large VPN concentration environments
- Data center edge security
- Distributed enterprise networks
- High-density network aggregation
- Secure branch-to-campus connectivity
- Multi-site corporate networks
- High-performance firewall deployments
With dual 10G WAN connectivity, eight 10G SFP+ LAN interfaces, eight 1G SFP interfaces and eight 1G RJ45 interfaces, the MX450 provides a flexible connectivity platform for large campus and enterprise networks.
Power & Hardware Reliability
The MX450 uses redundant modular power supplies and field-replaceable system fans. Its 1U rack-mount design supports enterprise data center and campus deployments where serviceability and network availability are important.
Licensing
Important: The MX450-HW is the hardware SKU. Cisco Meraki licensing and support are ordered separately. Available license options include Enterprise, Advanced Security and Secure SD-WAN Plus licensing in different subscription periods.
Why Choose MX450-HW?
- High-performance 10 Gbps firewall platform
- Designed for networks supporting up to 10,000 devices
- Dual 10G SFP+ dedicated WAN connectivity
- 24 high-density LAN interfaces
- Advanced SD-WAN and VPN capabilities
- Centralized Cisco Meraki cloud management
- 1U rack-mount enterprise form factor
- Redundant modular power architecture
Cisco Meraki MX450-HW
Enterprise Security, SD-WAN, VPN and high-density network connectivity in a powerful 1U rack-mount appliance.
| Product Name | Cisco Meraki MX450-HW Security & SD-WAN Appliance, 10 Gbps Firewall, 10G SFP+, 24 LAN Ports |
|---|---|
| Weight | 2.500000 |
| Memory | Flash_memory 128 GB SSD |
| Interface | 10G SFP+, 1G SFP, 1G RJ-45 |
| Ethernet | 10G / 1G Ethernet |
| I/O Port | 2 × 10GbE SFP+ WAN, 2 × 2.5GbE RJ-45 WAN, 4 × 1GbE RJ-45 LAN, 2 × 10GbE SFP+ LAN, RJ-45 Management, USB 3.0 |
| Operating System | Cisco Meraki MX Firmware |
| Cpu | Cisco Meraki MX Firmware / Integrated Security Appliance Architecture |
| Network/Network Standard | Ethernet |
| Dimensions | 483 × 440 × 44mm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
