Cisco N9K-C93108TC-FX3P 48-Port Multigigabit PoE Data Center Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst N9K-C93108TC-FX3P
-
48 × 100M/1/2.5/5/10GBASE-T multigigabit copper ports
-
6 × 40/100G QSFP28 uplink ports
-
2.16 Tbps switching bandwidth
-
1.2 Billion packets per second (Bpps) forwarding performance
-
PoE support on the 48 downlink ports
-
1RU fixed-port data center switch
-
Cisco Nexus 9000 Series / N9300-FX3 platform
-
Designed for spine-leaf and data center deployments
-
Up to 16 Cisco Nexus 2000 Fabric Extenders supported on this model
-
Two management ports: 1 × 10/100/1000BASE-T + 1 × SFP

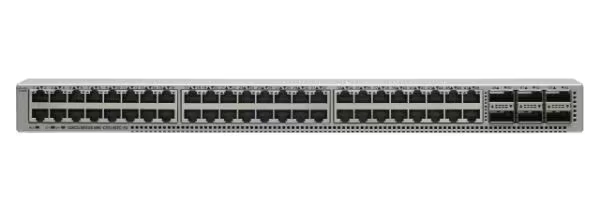

Cisco Nexus N9K-C93108TC-FX3P 48-Port 10G Multigigabit PoE Data Center Switch
High-density 1RU data center switch featuring 48 × 100M/1/2.5/5/10GBASE-T multigigabit ports and 6 × 40/100G QSFP28 uplink ports with Power over Ethernet support for demanding data center, enterprise and high-performance networking deployments.
Product Overview
The Cisco Nexus N9K-C93108TC-FX3P is a compact 1RU fixed-port data center switch designed for high-density multigigabit copper connectivity, high-speed uplinks and Power over Ethernet deployments.
It provides 48 × 100M/1/2.5/5/10GBASE-T multigigabit downlink ports for servers, access points, IP phones, cameras and other network devices. Six 40/100G QSFP28 uplink ports provide high-speed connectivity toward spine, aggregation and core network infrastructure.
With 2.16 Tbps switching bandwidth and 1.2 billion packets per second forwarding performance, the switch is designed for demanding workloads requiring high throughput, scalable connectivity and predictable data center performance.
Key Features
High-Density Port Architecture
100M/1/2.5/5/10G Multigigabit Ethernet
The 48 copper downlink interfaces provide flexible multigigabit connectivity for servers, access points, IP phones, security devices and other network equipment.
- 100 Mbps Ethernet
- 1 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- High-density copper connectivity
40/100G High-Speed Uplinks
Six QSFP28 interfaces provide high-bandwidth connections toward spine, aggregation and core network infrastructure.
- 40 Gigabit Ethernet
- 100 Gigabit Ethernet
- QSFP28 interface
- High-speed spine connectivity
- Leaf-to-spine interconnection
- Data center backbone applications
Performance & Scalability
The N9K-C93108TC-FX3P is engineered for high-density networking environments where multigigabit access, high-speed uplinks and PoE capabilities are required.
Multigigabit Ethernet Connectivity
The N9K-C93108TC-FX3P supports a broad range of copper Ethernet speeds across its 48 downlink ports, including 100M, 1G, 2.5G, 5G and 10GBASE-T.
This multigigabit capability allows organizations to connect modern Wi-Fi access points, servers and other high-speed devices without immediately replacing existing copper infrastructure.
PoE, PoE+ & UPoE Capability
The N9K-C93108TC-FX3P supports Power over Ethernet on its copper downlink ports. Depending on the installed power supplies and operating mode, the platform can provide PoE, PoE+ and higher-power UPoE connectivity.
Actual PoE availability depends on installed power supplies and whether the switch is operating in redundant or non-redundant power mode.
Leaf-and-Spine Data Center Architecture
The N9K-C93108TC-FX3P can be deployed as a high-density access or leaf switch in modern data center architectures. Its multigigabit copper ports provide connectivity to servers, access points and network devices, while its QSFP28 ports provide high-speed connections toward spine infrastructure.
This architecture enables scalable east-west traffic flows and high-speed interconnection between data center access, leaf and spine layers.
Cisco Nexus Fabric Extender Support
The N9K-C93108TC-FX3P supports up to 16 Cisco Nexus 2000 Series Fabric Extenders, enabling centralized management and scalable server-access expansion in supported deployments.
Cisco NX-OS & ACI Support
The N9K-C93108TC-FX3P is part of the Cisco Nexus 9000 family and supports Cisco data center networking environments based on Cisco NX-OS.
The platform also supports deployment in Cisco Application Centric Infrastructure (ACI) environments where centralized policy, automation and data center orchestration are required.
Management & Connectivity
Dedicated Ethernet management connectivity.
Additional SFP-based management interface.
Dedicated serial console interface for administration.
USB connectivity for supported management and maintenance tasks.

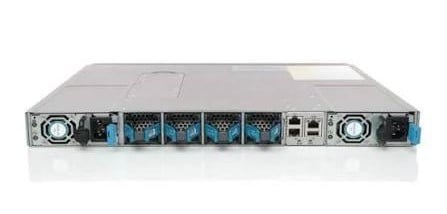

Power & Cooling
The N9K-C93108TC-FX3P supports multiple power-supply configurations designed for high-power PoE deployments, redundancy and different airflow requirements.
- Up to 2 power supplies
- 1100W AC power supply options
- 1900W AC power supply option
- 715W DC power supply option
- Port-side intake airflow
- Port-side exhaust airflow
- 4 user-replaceable fan modules
PoE Power Configuration
| Power Supply Configuration | PoE Power | 15W PoE | 30W PoE+ | 60W UPoE |
|---|---|---|---|---|
| 2 × 1900W Non-Redundant | 1920W | 48 | 48 | 32 |
| 2 × 1900W Redundant | 1300W | 48 | 43 | 21 |
| 2 × 1100W Non-Redundant | 1600W | 48 | 48 | 26 |
| 2 × 1100W Redundant | 500W | 33 | 16 | 8 |
Recommended Applications
Data Center Access
High-density multigigabit copper connectivity for servers and network devices.
Leaf-and-Spine Networks
40G/100G QSFP28 uplinks provide high-speed connections toward spine infrastructure.
Wi-Fi Infrastructure
Multigigabit Ethernet and PoE capability for high-performance wireless access points.
IP Telephony
PoE connectivity for IP phones and other powered network endpoints.
Security & Surveillance
Suitable for PoE-powered cameras and security network infrastructure.
Enterprise Data Centers
Flexible 100M through 10G copper access with high-speed 40G/100G uplinks.
Why Choose Cisco N9K-C93108TC-FX3P?
The Cisco Nexus N9K-C93108TC-FX3P combines 48-port multigigabit copper connectivity, 40/100G QSFP28 uplinks and PoE capability in a compact 1RU data center switching platform.
With 2.16 Tbps switching bandwidth, 1.2 Bpps forwarding performance, multigigabit BASE-T support, high-speed QSFP28 uplinks and flexible PoE configurations, it provides a scalable foundation for modern enterprise and data center networks.
| Product Name | Cisco N9K-C93108TC-FX3P 48-Port Multigigabit PoE Data Center Switch |
|---|---|
| Weight | 7.800000 |
| Switching Capacity | 2.16 Tbps |
| Memory | 16 GB | 128 GB SSD |
| Interface | 48 × 100M/1/2.5/5/10GBASE-T + 6 × 40/100G QSFP28 |
| Ethernet | 100M/1/2.5/5/10GBASE-T Multigigabit Ethernet + 40/100G QSFP28 |
| I/O Port | 48 × Multigigabit RJ-45 PoE + 6 × 40/100G QSFP28 + 1 × RJ-45 Management + 1 × SFP Management + 1 × RS-232 Console + 1 × USB |
| Operating System | Cisco NX-OS |
| Cpu | 4-Core CPU |
| Network/Network Standard | IEEE 802.3 Ethernet; 10GBASE-T / 40G / 100G Ethernet |
| Dimensions | 4.4 × 44.5 × 40.9 cm |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
