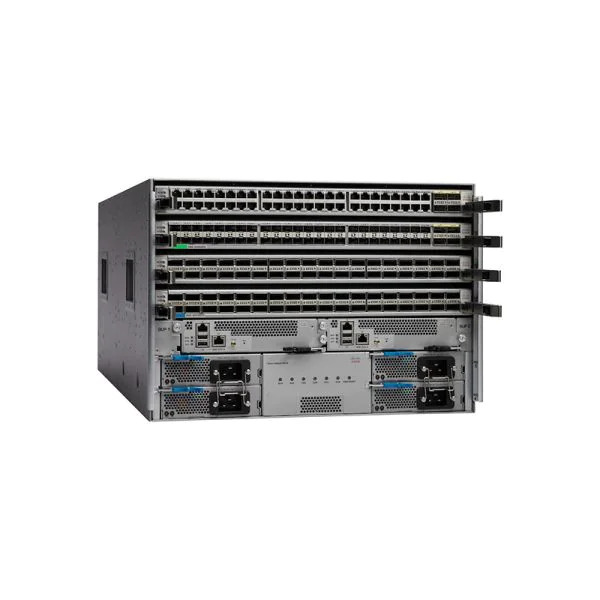

Cisco Nexus N9K-C9504 4-Slot 7RU Modular Data Center Switch Chassis
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst N9K-C9504
-
4-slot modular chassis supporting up to four line cards
-
7RU rack-mount form factor
-
Up to 51.2 Tbps nonblocking performance
-
Supports up to 512 × 10G, 512 × 25G, 256 × 50G, 144 × 40/100G and 64 × 400G ports, depending on line-card configuration
-
Supports redundant and hot-swappable supervisors, system controllers, power supplies and fan trays
-
Supports up to 6 fabric modules
Cisco Nexus N9K-C9504 4-Slot Modular Data Center Switch Chassis
The Cisco Nexus N9K-C9504 is a high-density, modular data center switch chassis designed for scalable core, aggregation, spine, gateway, and end-of-row deployments. The 4-slot chassis supports multiple line cards, fabric modules, supervisors, system controllers, redundant power supplies, and hot-swappable fan trays.
Product Overview
The Cisco Nexus N9K-C9504 is a modular 4-slot chassis within the Cisco Nexus 9500 Series data center switching platform. Unlike fixed-port switches, the N9K-C9504 provides a flexible chassis architecture where organizations can select compatible line cards and fabric modules according to their required port speeds, density, buffering, and data center architecture.
The chassis can accommodate up to four line cards, making it suitable for high-capacity data center aggregation, spine, core, gateway, and end-of-row deployments. Cisco supports multiple generations of line cards and fabric modules, allowing organizations to build systems supporting 1G, 10G, 25G, 40G, 50G, 100G, 200G, and 400G Ethernet connectivity.
Modular Data Center Architecture
The N9K-C9504 is engineered for environments where network requirements can change over time. Its modular architecture allows network administrators to select the appropriate line cards for server access, aggregation, spine connectivity, or high-speed interconnection requirements.
The chassis supports up to four line cards and up to six fabric modules of the same supported type. It can also accommodate up to two supervisors, two system controllers, four power supplies, and three fan trays, providing a highly scalable hardware platform for demanding enterprise and data center networks.
Supports up to four compatible Cisco Nexus 9500 line cards.
Supports up to six fabric modules of the compatible type.
Supports up to two supervisor modules of the same type.
Supports up to two system controller modules.
Supports up to four power supplies for flexible redundancy.
Supports up to three compatible fan trays.
High-Density Port and Line Card Flexibility
Because the N9K-C9504 uses interchangeable line cards, the final port configuration depends on the selected modules. Cisco's N9500 platform supports line cards capable of providing high-density Ethernet interfaces from 1 Gigabit through 400 Gigabit Ethernet.
Depending on the installed line cards, a Cisco N9500 system can be configured for very high port density, including configurations supporting up to 256 × 400G, 524 × 200G, 1024 × 100G, 2048 × 50G, or high-density lower-speed Ethernet connectivity.
Spine, Core and Aggregation Deployment
The Cisco Nexus 9500 platform is designed for large-scale data center architectures and can operate as a spine node in ```
| Product Name | Cisco Nexus N9K-C9504 4-Slot 7RU Modular Data Center Switch Chassis |
|---|---|
| Weight | 38.200000 |
| Switching Capacity | 115.2 Tbps |
| Memory | Dependent on installed Supervisor Module |
| Interface | 28 × 40/100G QSFP28 + 8 × 40/100/400G QSFP-DD |
| Ethernet | 1G / 10G / 25G / 40G / 50G / 100G / 200G / 400G, depending on installed line cards |
| I/O Port | Management and console interfaces are provided by the installed Supervisor Module; chassis supports modular line cards |
| Operating System | Cisco NX-OS |
| Cpu | 4-Core CPU |
| Network/Network Standard | IEEE 802.3 Ethernet; VXLAN EVPN, MPLS and Segment Routing supported according to installed modules/software |
| Dimensions | 31.1 × 44.5 × 84.2 cm (H × W × D) |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
