Cisco SFP-10G-LR= 10GBASE-LR SFP+ Transceiver Module, 1310nm, 10km
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The SFP-10G-LR=
-
Cisco 10GBASE-LR SFP+ Transceiver
-
Model: SFP-10G-LR=
-
Data Rate: 10 Gbps
-
Wavelength: 1310 nm
-
Fiber Type: Single-Mode Fiber (SMF)
-
Standard: 10GBASE-LR
-
Maximum Distance: 10 km
-
Connector: Duplex LC/PC

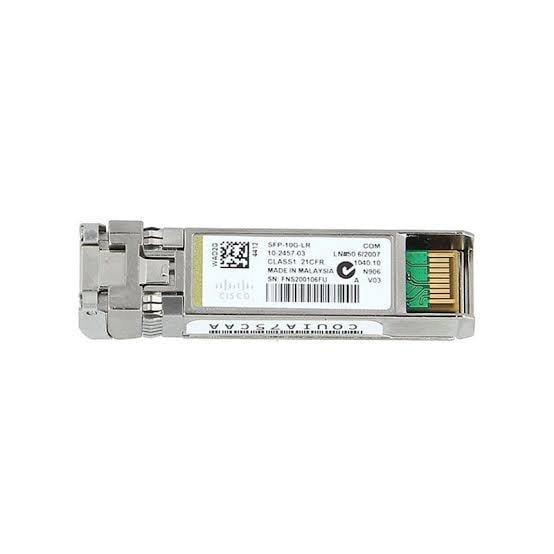

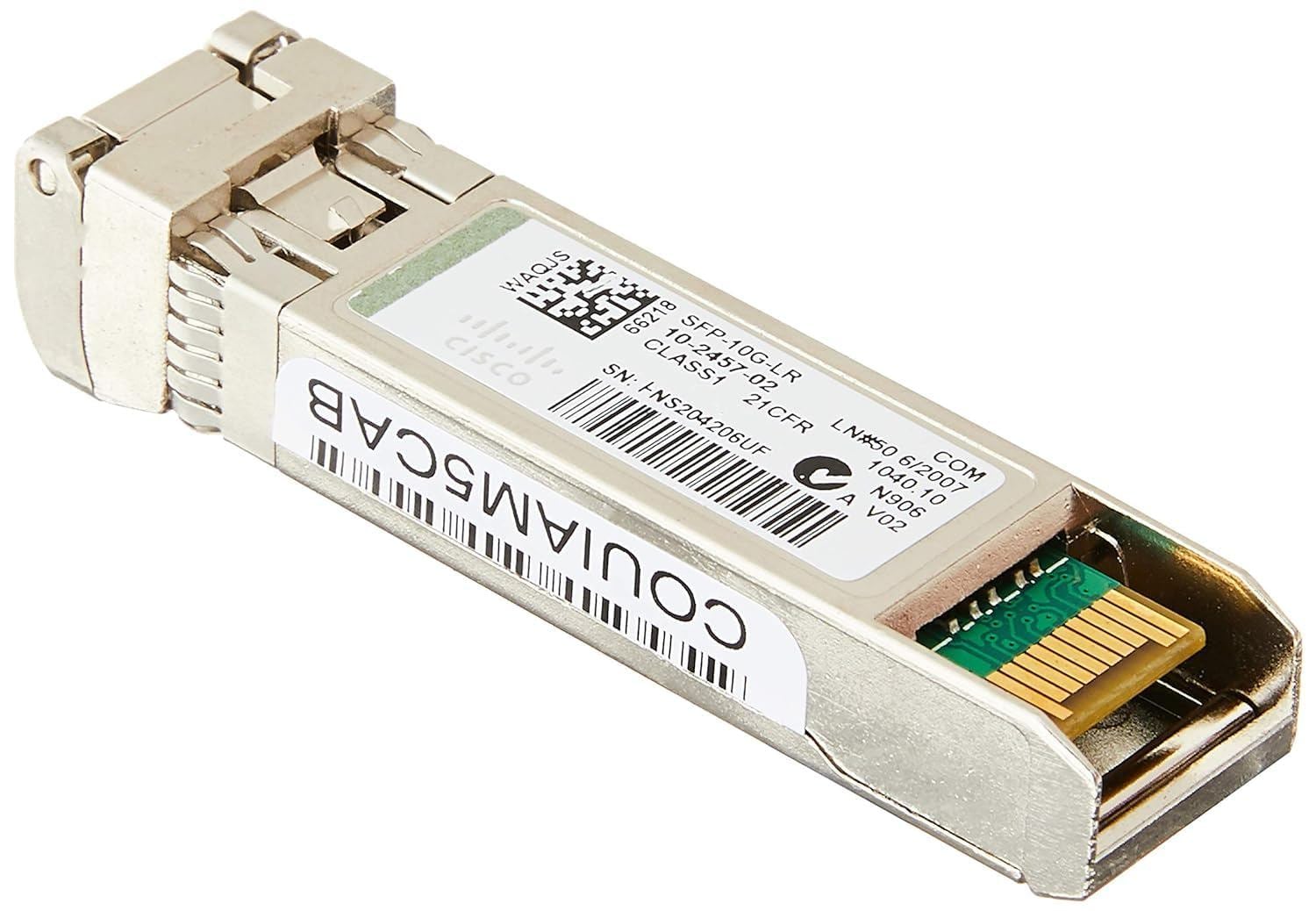

Cisco SFP-10G-LR= 10GBASE-LR SFP+ Transceiver Module
10 Gigabit Ethernet SFP+ optical transceiver designed for long-range single-mode fiber connectivity up to 10 km.
Product Overview
The Cisco SFP-10G-LR= is a 10GBASE-LR SFP+ transceiver module designed to provide high-speed 10 Gigabit Ethernet connectivity over single-mode fiber. It operates at a nominal optical wavelength of 1310 nm and is designed for long-range network links.
With support for link distances of up to 10 km over standard G.652 single-mode fiber, the SFP-10G-LR= is suitable for enterprise networks, data centers, campus backbones, metropolitan-area links and other applications requiring reliable long-distance 10 Gigabit optical connectivity.
Key Features
Optical Connectivity
The Cisco SFP-10G-LR= is optimized for long-range 10 Gigabit Ethernet transmission over single-mode fiber. It operates within the 1310 nm optical window and supports a wavelength range of approximately 1260 to 1355 nm.
- Optical Wavelength: 1310 nm
- Wavelength Range: 1260–1355 nm
- Fiber Type: Single-Mode Fiber (SMF)
- Fiber Standard: G.652
- Maximum Reach: 10 km
- Connector: Duplex LC/PC
Network Applications
- Enterprise network backbone connectivity
- Data center interconnects
- Campus network uplinks
- Long-distance switch-to-switch connections
- Router-to-switch optical links
- Server and network aggregation links
- Metropolitan-area network connectivity
- 10 Gigabit Ethernet infrastructure expansion
Single-Mode Fiber Compatibility
The SFP-10G-LR= is designed for single-mode fiber installations and supports long-distance 10 Gigabit Ethernet transmission. When deployed with compatible G.652 single-mode fiber, the module can support link distances of up to 10 km.
- Fiber Type: Single-Mode Fiber
- Fiber Standard: G.652
- Maximum Link Distance: 10 km
- Optical Wavelength: 1310 nm
- Connector Type: Duplex LC/PC
Installation & Deployment
The Cisco SFP-10G-LR= installs directly into a compatible Cisco SFP+ interface. After installation, a compatible duplex single-mode fiber cable with LC connectors can be connected to establish the optical network link.
Before deployment, verify that the host Cisco networking platform supports the SFP-10G-LR= transceiver and that the connected fiber infrastructure meets the required optical specifications.
Benefits
- 10 Gbps high-speed Ethernet connectivity
- Long-distance optical transmission up to 10 km
- 1310 nm single-mode fiber technology
- Compact and hot-swappable SFP+ form factor
- Duplex LC/PC optical interface
- Suitable for enterprise and data center networks
- Designed for compatible Cisco networking equipment
- Supports Digital Optical Monitoring
Important Compatibility Note
| Product Name | Cisco SFP-10G-LR= 10GBASE-LR SFP+ Transceiver Module, 1310nm, 10km |
|---|---|
| Weight | 2.500000 |
| Interface | SFP+ |
| Power Source | SFP+ Port |
| Working Environment: | Commercial |
| Power Consumption | 1 W |
| Unit Weight (KG): | ≤ 0.075 kg |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
