Cisco SFP-10G-SR= 10GBASE-SR SFP+ Transceiver Module for Multimode Fiber
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The SFP-10G-SR=
-
Cisco 10GBASE-SR SFP+ Transceiver
-
Model: SFP-10G-SR=
-
10 Gigabit Ethernet
-
850 nm wavelength
-
Multimode Fiber (MMF)
-
Dual LC/PC connector
-
Maximum distance up to 300 m on OM3 and 400 m on OM4
-
Compatible with Cisco SFP+ interfaces
-
Power consumption: 1W
-
Commercial temperature range

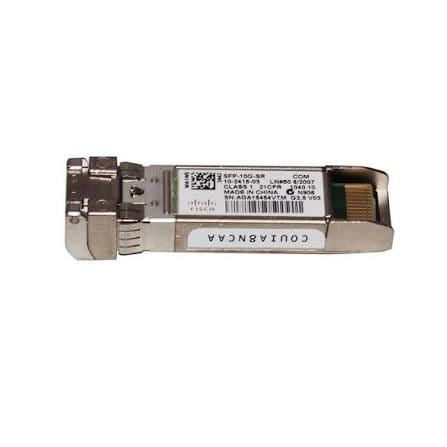

Cisco SFP-10G-SR= 10GBASE-SR SFP+ Transceiver Module
High-performance 10 Gigabit Ethernet SFP+ transceiver designed for short-range multimode fiber networking applications.
Product Overview
The Cisco SFP-10G-SR= is a Cisco 10GBASE-SR SFP+ transceiver module designed to provide 10 Gigabit Ethernet connectivity over multimode fiber (MMF). It operates at an 850 nm wavelength and uses a duplex LC/PC fiber-optic connector.
The transceiver is suitable for high-speed network connections between switches, routers, servers and other compatible Cisco networking equipment. It provides short-range optical connectivity for data center, enterprise and campus network environments.
Key Features
Optical Connectivity
The SFP-10G-SR= is optimized for 850 nm multimode fiber connectivity. Cisco specifies different maximum cable distances depending on the fiber type and modal bandwidth.
- FDDI-grade MMF: up to 26 m
- OM1 MMF: up to 33 m
- OM2 MMF: up to 82 m
- OM3 MMF: up to 300 m
- OM4 MMF: up to 400 m
Network Applications
- 10 Gigabit Ethernet switch-to-switch connections
- Data center network connectivity
- Enterprise LAN backbone links
- Server-to-switch fiber connections
- Campus network uplinks
- Short-range high-speed fiber links
- Network aggregation and distribution
Fiber Compatibility
The Cisco SFP-10G-SR= is intended for multimode fiber installations. Link distance depends on the fiber category and modal bandwidth.
- OM1: Up to 33 m
- OM2: Up to 82 m
- OM3: Up to 300 m
- OM4: Up to 400 m

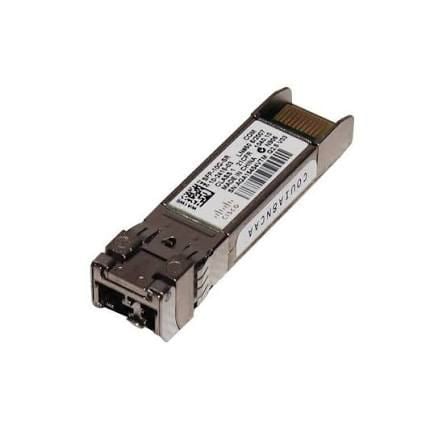

Installation
The SFP-10G-SR= installs into a compatible Cisco SFP+ port. A duplex multimode fiber cable with LC connectors is used to establish the optical link. Ensure that the connected network equipment and fiber cabling support 10GBASE-SR operation.
Why Choose Cisco SFP-10G-SR=?
- Genuine Cisco 10GBASE-SR SFP+ transceiver
- 10 Gbps high-speed Ethernet connectivity
- 850 nm multimode fiber optics
- Compact SFP+ form factor
- Duplex LC/PC fiber interface
- Up to 300 m over OM3 fiber
- Up to 400 m over OM4 fiber
- Suitable for data center and enterprise networks
Important Note
| Product Name | Cisco SFP-10G-SR= 10GBASE-SR SFP+ Transceiver Module for Multimode Fiber |
|---|---|
| Weight | 2.500000 |
| Interface | SFP+ |
| Power Source | Network Equipment / SFP+ Port |
| Working Environment: | Commercial |
| Power Consumption | 1 W |
| Unit Weight (KG): | ≤ 0.075 kg |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
