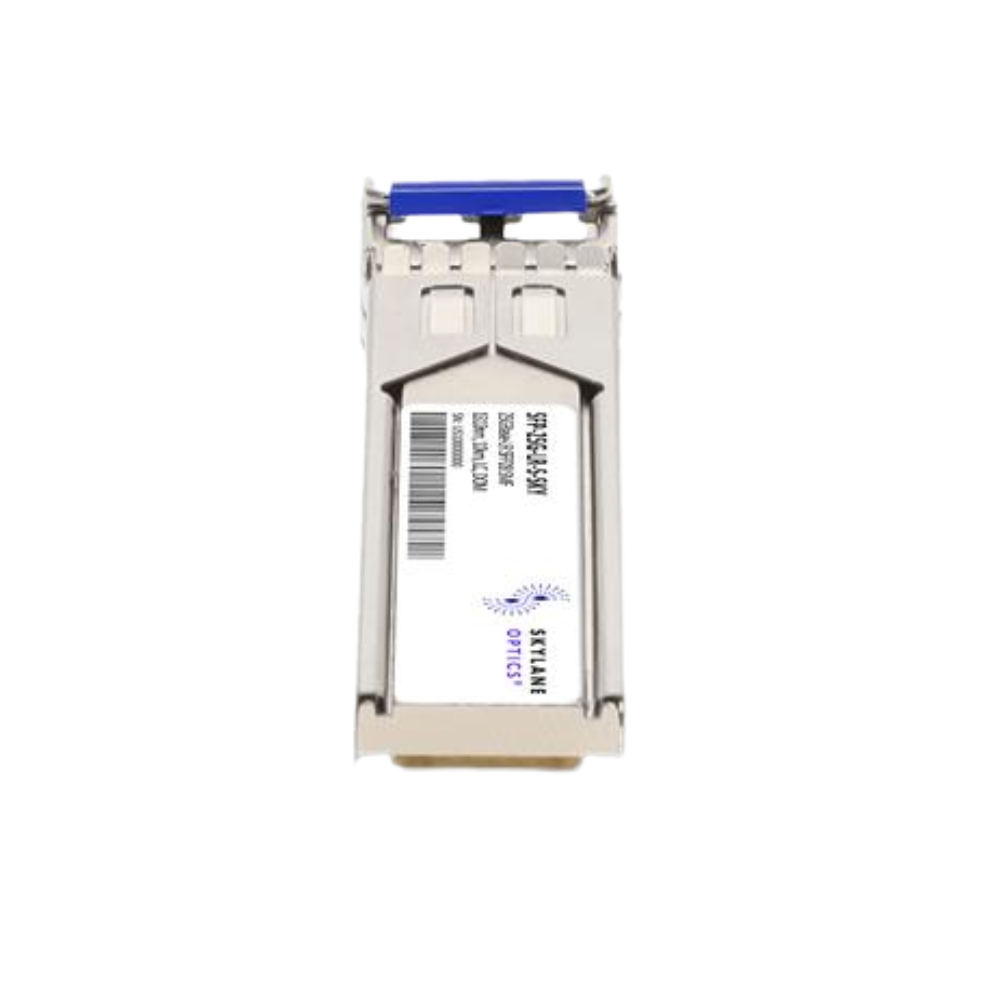

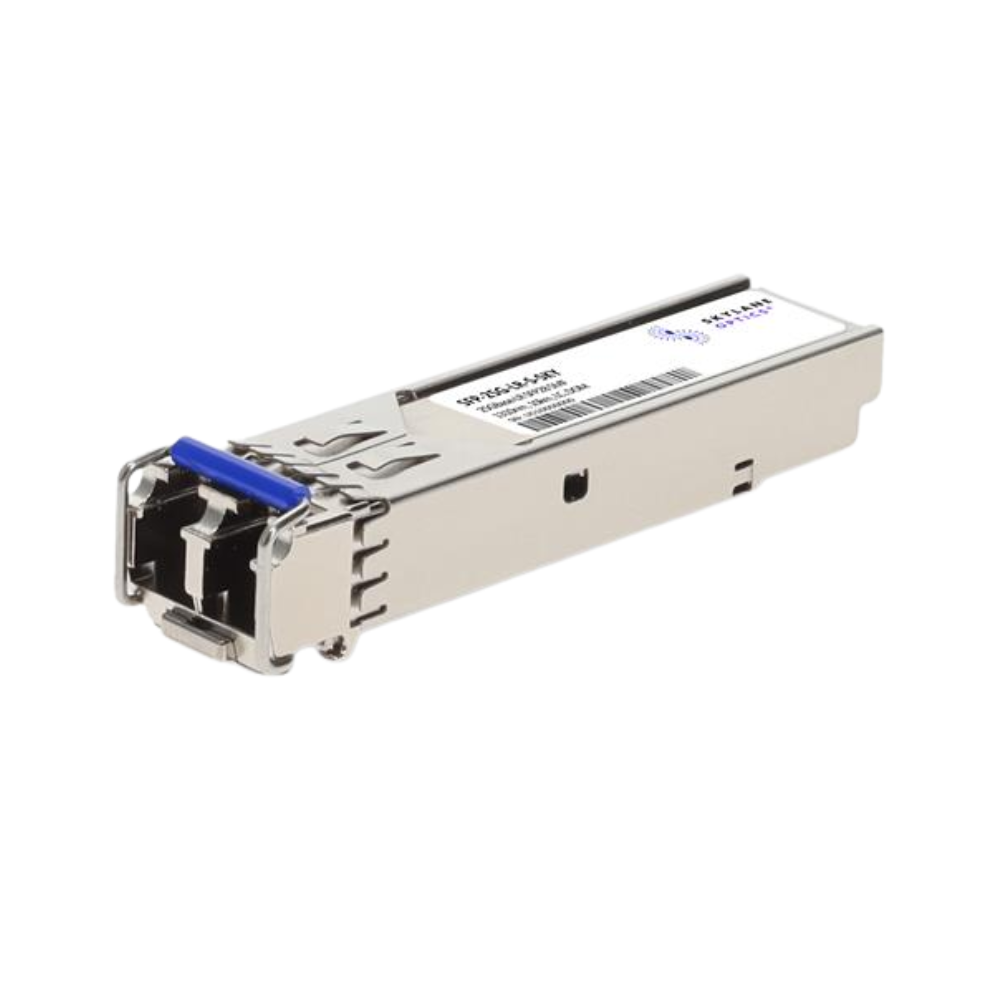

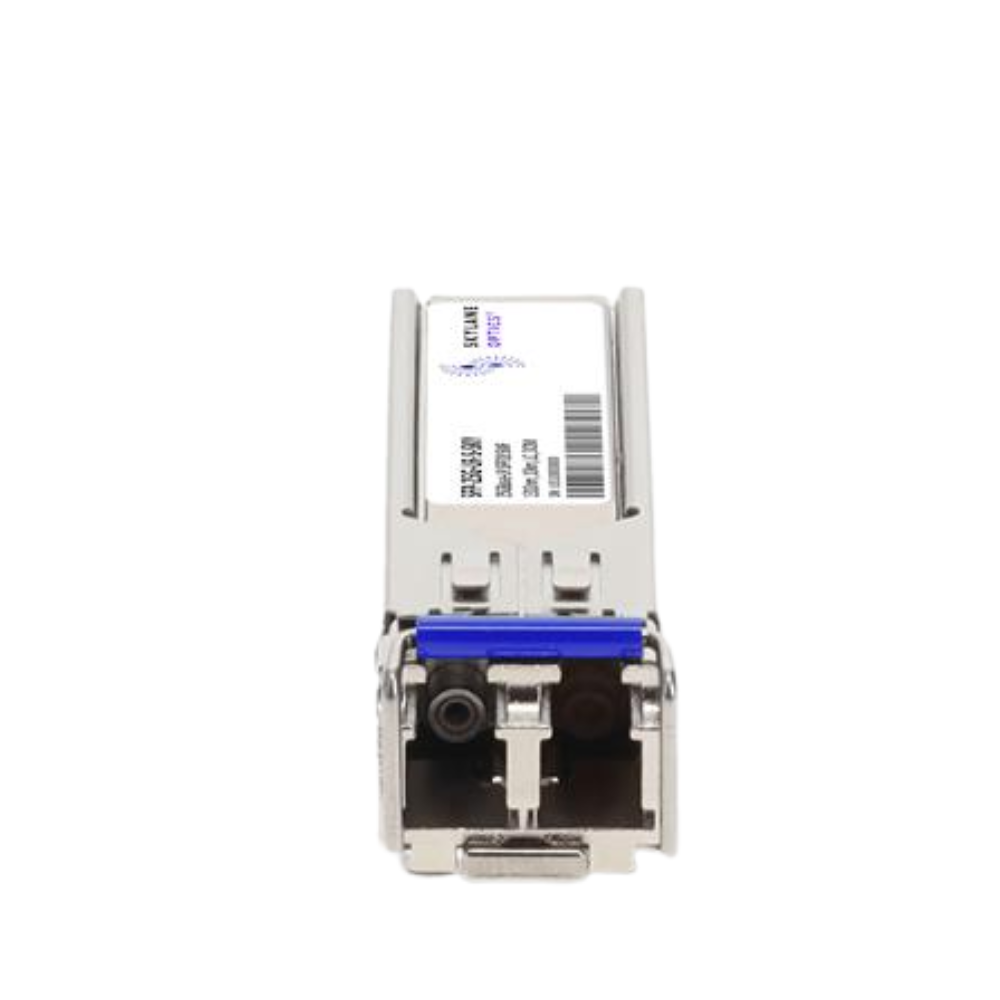

Cisco SFP-25G-LR-S= 10/25GBASE-LR SFP28 Transceiver, 1310nm, Duplex LC, Single-Mode Fiber
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The SFP-25G-LR-S=
This Cisco® SFP-25G-LR-S compatible SFP28 transceiver provides 25GBase-LR throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Cisco®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically.
Cisco SFP-25G-LR-S= 10/25GBASE-LR SFP28 Transceiver
High-performance Cisco SFP28 optical transceiver supporting 10Gbps and 25Gbps Ethernet connectivity over single-mode fiber, with a maximum transmission distance of up to 10 km and a 1310nm wavelength.
The Cisco SFP-25G-LR-S= is a dual-rate 10/25GBASE-LR SFP28 optical transceiver designed for high-speed Ethernet networking applications. It provides reliable long-distance connectivity over single-mode fiber and supports links of up to 10 km.
With a nominal operating wavelength of 1310nm and a duplex LC optical interface, this transceiver is suitable for enterprise networks, data centers, aggregation networks and other high-speed infrastructure deployments.
Key Features
Applications
- 25 Gigabit Ethernet network connections
- 10 Gigabit Ethernet network connections
- Enterprise network infrastructure
- Data center connectivity
- Switch-to-switch connections
- Server-to-switch connectivity
- Network aggregation and uplink applications
- Long-distance single-mode fiber links
- High-speed campus networking
Fiber Connectivity
The Cisco SFP-25G-LR-S= is designed for use with single-mode fiber infrastructure. Its 1310nm optical wavelength and LR configuration allow it to support links of up to 10 km when deployed with suitable fiber and compatible networking equipment.
10G and 25G Networking
This Cisco SFP28 transceiver provides flexibility for network environments that require either 10Gbps or 25Gbps connectivity. It can be deployed for high-speed switch uplinks, aggregation links and other compatible optical Ethernet applications.
Why Choose Cisco SFP-25G-LR-S=?
- Supports both 10Gbps and 25Gbps Ethernet operation.
- Long-reach optical connectivity up to 10 km.
- Uses 1310nm optical wavelength.
- Designed for single-mode fiber infrastructure.
- Compact SFP28 form factor.
- Duplex LC optical connector.
- Suitable for enterprise and data center networking.
- Ideal for high-speed network uplink and aggregation applications.
Compatibility & Deployment
Before installation, verify that the target Cisco networking platform supports the SFP-25G-LR-S= transceiver and the required 10Gbps or 25Gbps operating mode. At 25Gbps, compatible host equipment and required FEC settings should be verified according to the platform configuration.
| Product Name | Cisco SFP-25G-LR-S= 10/25GBASE-LR SFP28 Transceiver, 1310nm, Duplex LC, Single-Mode Fiber |
|---|---|
| Weight | 0.800000 |
| Maximum Power Load: | 1.3 W |
| Indicator Type: | LED |
| Interface | SFP28 |
| Power Source | Network/SFP Host Port |
| Working Environment: | Enterprise / Data Center Networking |
| Power Consumption | Approx. 1.3 W |
| Unit Weight (KG): | Approx. 0.1 kg |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
