Crown Audio DCI2X2400N-U-EKFX Two-Channel 2400W Power Amplifier

PRODUCT OVERVIEW

Crown Audio DCI2X2400N-U-EKFX Two-Channel 2400W Power Amplifier

The Crown Audio DriveCore Install 2|2400N is a 2400W, 2-channel, BLU Link network amplifier with advanced features and flexibility that's required by system integrators for challenging 21st century installed sound applications.

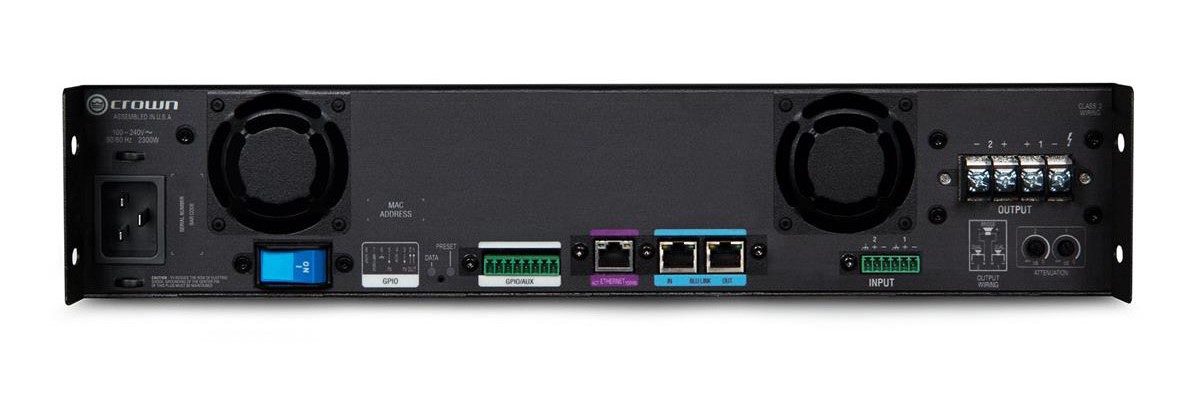

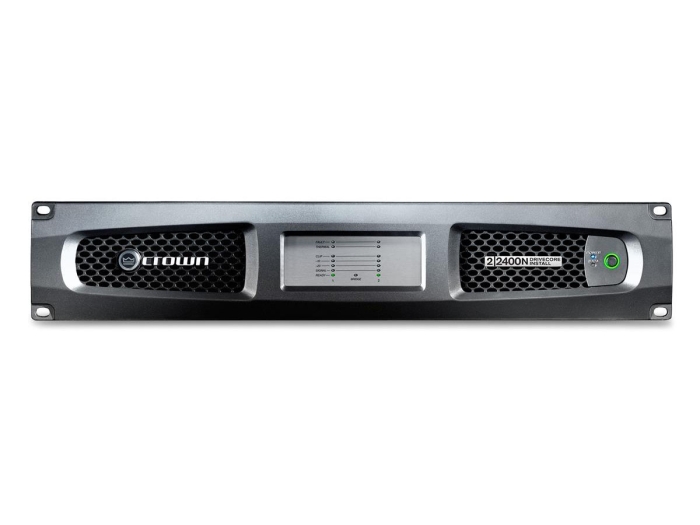

The 2/2400N can produce up to 2400W of output per channel at 2, 4, 8 or 16 ohms or 70 or 100 volts rms. It is compatible with Harman's BLU Link digital audio transport and accepts digital inputs via its rear-panel RJ-45 connectors. This digital control allows for networked monitoring, recallable presets, and the setup of secondary inputs that engage if the primary inputs fail. The 2|2400N also has built-in DSP capabilities including limiting, input/output EQs, delay, and a matrix mixer.Its two channels can be bridged for powering higher power applications such as a subwoofer. The 2|2400N also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 2 channels additionally features independent attenuators, ranging from 0 to -80 dB.The front panel of the 2|2400N provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 2|2400N is rack-mountable and requires 2 RU of space. A 20A IEC power cord is included.

DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications.Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Key Features

• 2400W per channel at 4Ω — Maximum continuous output for large-venue main speaker and subwoofer applications.
• HiQnet network control — Remote monitoring, fault reporting, and level control via Harman AV platforms.
• 70V/100V constant-voltage output — Both channels support distributed speaker systems.
• Crown DriveCore technology — Integrated IC manages thermal demands of high-power permanent installation.
• Onboard DSP — Per-channel limiting, EQ, crossover, and delay without external processing.
• Bridge mono capability — Channels bridgeable for maximum single-channel output on high-power loads.
• 2U rack-mount chassis — Highest-output 2-channel installation amplifier in a standard 2U form factor.
• 2Ω load capability — Drives demanding low-impedance speaker loads stable at 2 ohms per channel.
• Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
