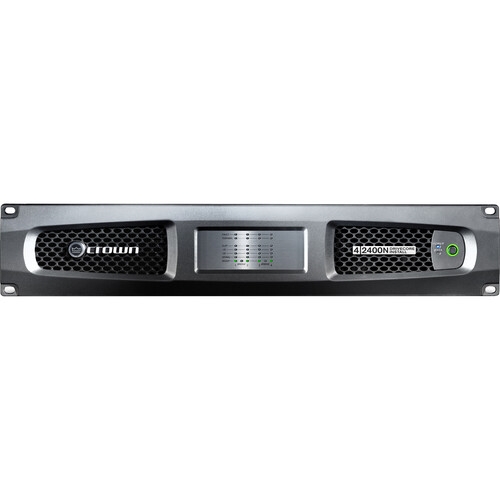

Crown Audio DCI4X2400N-U-EKFX Four-Channel 2400W Power Amplifier
QUICK OVERVIEW
The DriveCore™ Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
PRODUCT OVERVIEW
Crown Audio DCI4X2400N-U-EKFX Four-Channel 2400W Power Amplifier
Crown’s DCi 4|2400N is a high-performance 4-channel, 2,400-watt power amp that’s packed to the gills with state-of-the-art features. The company's super-efficient DriveCore technology is at the heart of the DCi 4|2400N, maximizing both its reliability and its sound quality. There’s a sizeable cache of I/O on tap, including Harman’s proprietary BLU-Link, with flexible networking support for AVB, CobraNet, and Dante via BSS Audio Soundweb London processors. Control, configure, and monitor via a standard TCP/IQ network using Harman's HiQnet Audio Architect software; customize your system with this amplifier's onboard DSP, which includes LevelMAX limiters, EQ, delay, a matrix mixer, and speaker line monitoring. Beyond that, the DCi 4|2400N can drive speaker loads up to 100Vrms without a transformer and is EN 54-16-compliant for life safety applications. Crown's DCi DriveCore 4|2400N is a great choice for any medium-sized installation such as cinema, houses of worship, bars, lounges, and more.
DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications.Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
Features
- ANALOG & DIGITAL INPUTS – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.
- NETWORK MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
- PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
- DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Mixer
- Speaker Line Monitoring
| Product Name | Crown Audio DCI4X2400N-U-EKFX Four-Channel 2400W Power Amplifier |
|---|---|
| Weight | 13.500000 |
| Frequency Response | 20 Hz to 20 kHz ±0.25 dB |
| Dimensions | 48.3 x 8.9 x 48.3 cm |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
