Crown Audio DCI4X300DA-U-EKFX Dante-AES67 With Four Channel DSP Amplifier

PRODUCT OVERVIEW

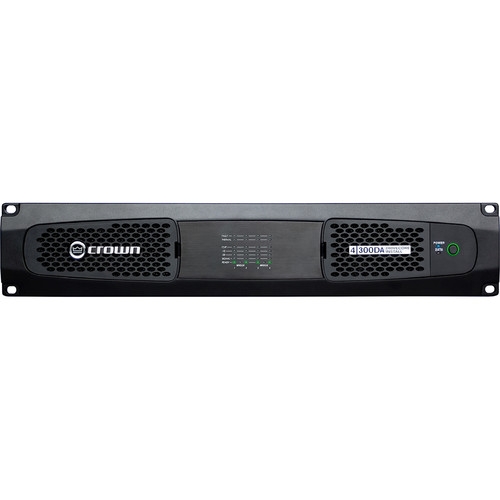

Crown Audio DCI4X300DA-U-EKFX Dante-AES67 With Four Channel DSP Amplifier

Crown's proprietary and patented DriveCore technology Amplifiers are the next generation of PWM technology using high-quality, Class-D amplifier topologies Minimum Guaranteed Power Ratings: DCi amplifiers deliver the rated power in the specifications for long periods of time Direct Drive "Constant Voltage" capabilities on a channel by channel basis for 70 or 100Vrms amplification without the use of a step-up frequency limiting transformer for higher audio quality HiQnet Audio Architect supported amplifier Advanced PFC universal power supply provides efficiency, and is designed to deliver maximum power no matter where the amplifier is located; Universal AC input accepts 100 to 240 VAC, 50/60 Hz (±10%) DriveCore includes five patents that are also included in Crown’s flagship touring amplifier I-Tech HD4, providing versatility and durability TCP/IP based protocol in HiQnet for network monitoring and control Highly effective cooling system focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise Integrated Dante / AES67 networked audio simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier

DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications.

The Crown DCi 4/300DA DriveCore Install DA Series is a 4-channel power amplifier with Dante / AES67 networked audio and integrated DSP. The amplifier is capable of producing 300W of output per channel and works with 2-, 4-, 8-, and 16-Ohm speakers or with 70/100Vrms systems. Channels can be bridged for powering higher power applications such as a subwoofer.

The amp's advanced capabilities and support for Dante Domain Manager makes it well suited for installations that are standardized on Dante for networked audio transport. The Dante / AES67 ports provide primary and secondary connections for redundancy and will accept 48 and 96 kHz digital audio. Analog audio can be sent via Dante / AES67 pre/post processing (at 48 kHz). Network configuration, monitoring, and control are provided with HiQnet protocols over standard TCP/IP network connections. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers. Additionally, a programmable General Purpose Input/Output (GPIO) port can be configured to control volume, recall presets, report errors to a third-party control system, and more.

The integrated DSP provides a comprehensive set of tools and features including LevelMAX limiting for inputs and outputs with thermal limiting, input compression, input & output delay (up to 2 seconds), input & output EQ, crossover settings, and a signal generator. The Crown DCi 4/300DA DriveCore Install DA Series 4-Channel Amplifier ships with four input connectors and a power cord.
