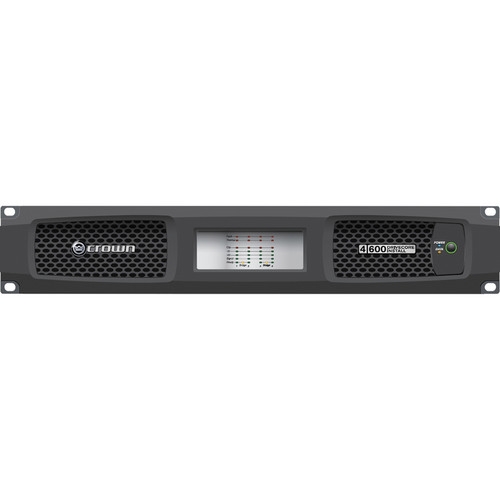

Crown Audio DCI4X600-U-EKFX DriveCore Install Analog Series 4-Channel Amplifier
The DriveCore™ Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications.
PRODUCT OVERVIEW
The DCI 4/600 DriveCore Install Analog Series from Crown Audio is a 4-channel amplifier capable of producing 600 watts of output per channel and works with 2, 4, 8, and 16 Ohms or 70 or 100 Vrms.

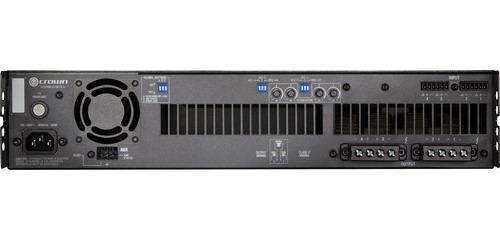

Channels can be bridged for powering higher power applications such as a subwoofer. The 4/600 also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 4 channels additionally features independent attenuators with an attenuation range from 0 to -80 dB.

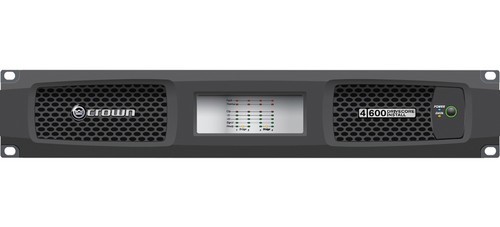

The front panel of the 4/600 provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 4/600 is 2U rackmountable and ships with 4 male connectors for wiring and an IEC power cord.
| Product Name | Crown Audio DCI4X600-U-EKFX DriveCore Install Analog Series 4-Channel Amplifier |
|---|---|
| Weight | 11.56 Kg |
| Impedance | 10 Kilohms (Balanced) 5 Kilohms (Unbalanced) |
| Max. Power Consumption | AC Input Power 100 to 240 VAC, 50 / 60 Hz AC Power Connector IEC 15 A |
| Dimensions | 19.0 x 3.5 x 14.3" / 48.3 x 8.9 x 36.2 cm |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
