Crown Audio DCI8X300-U-EKFX Eight-channel, 300W Analog Power Amplifier

PRODUCT OVERVIEW

Crown Audio DCI8X300-U-EKFX Eight-channel, 300W Analog Power Amplifier

The new DriveCore™ Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore™ technology.

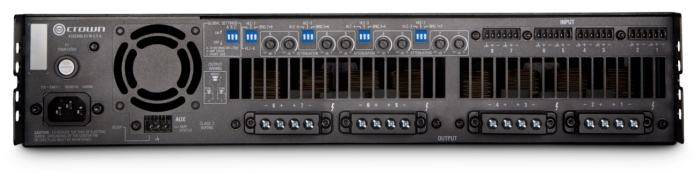

The Crown Audio DCi 8|300 DriveCore Install Analog Series is an 8-channel amplifier capable of producing 300 watts of output per channel and works with 2, 4, 8, and 16 Ohms or 70 or 100 Vrms. Channels can be bridged for powering higher-power applications such as a subwoofer. The DCi 8|300 also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 8 channels additionally features independent attenuators with an attenuation range from 0 to -95 dB.

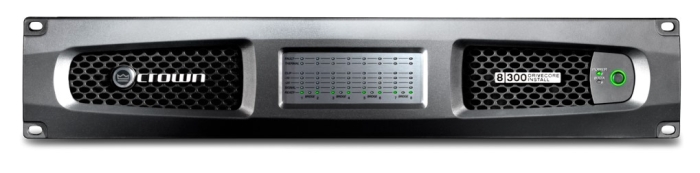

The front panel of the DCi 8|300 provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The DCi 8|300 is 2 RU rackmountable and ships an IEC power cord.

Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Based on Crown's proprietary and patented DriveCore technology, this amplifier features the next generation of PWM technology using Class-D amplifier topologies Minimum Guaranteed Power Ratings: Delivers at least the rated power in the specifications over a long period of time

Direct Drive "constant voltage" capabilities on a channel-by-channel basis for 70 or 100 Vrms amplification without the use of a step-up frequency limiting transformer for higher audio quality Powersave: Includes an auto-standby mode where after 30 minutes of no audio input, the amplifier powers down and consumes less than 1W—this feature can be enabled and disabled via the back-panel DIP switches Advanced PFC universal power supply provides efficiency and is designed to deliver maximum power no matter where the amplifier is located—universal AC input accepts 100 to 240 VAC, 50/60 Hz (±10%) Aux Port: Provides additional flexibility for amplifiers to be integrated in control systems for remote on/off and amplifier fault monitoring Cooling System: Focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise DriveCore features five patents that are also included in Crown's flagship I-Tech touring amplifier
