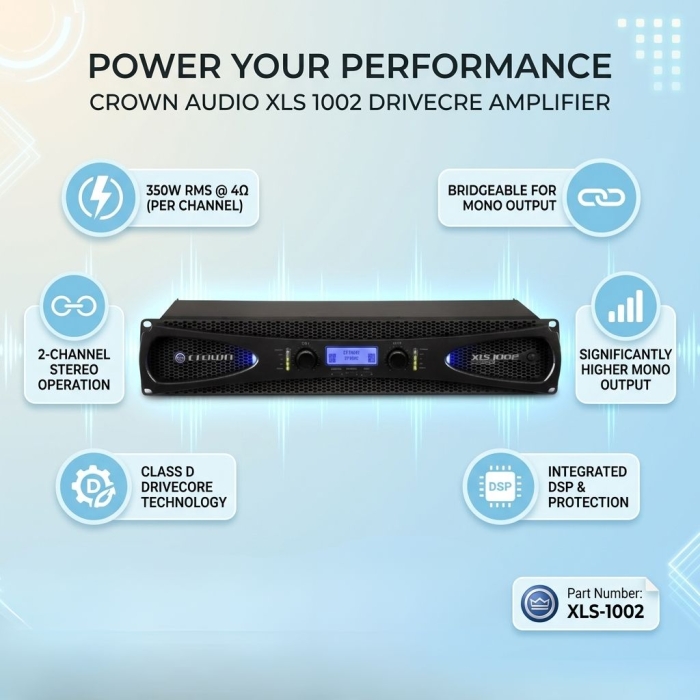

Crown Audio XLS 1002 DriveCore 2-Channel Class D Power Amplifier 350W @ 4Ω Pro Audio Amplifier
Key Features:
-
Ultra-efficient Class-D DriveCore™ amplification delivering high power output in a lightweight chassis
-
350W per channel at 4Ω with bridgeable operation for significantly higher mono output
-
Built-in DSP with crossover, band-pass filtering, and system tuning control per channel
-
PeakX™ limiters and PureBand™ crossover system for speaker protection and clean signal performance
-
Flexible connectivity (XLR, 1/4", RCA inputs; speakON/binding post outputs) with LCD interface and security lock functions
PRODUCT OVERVIEW

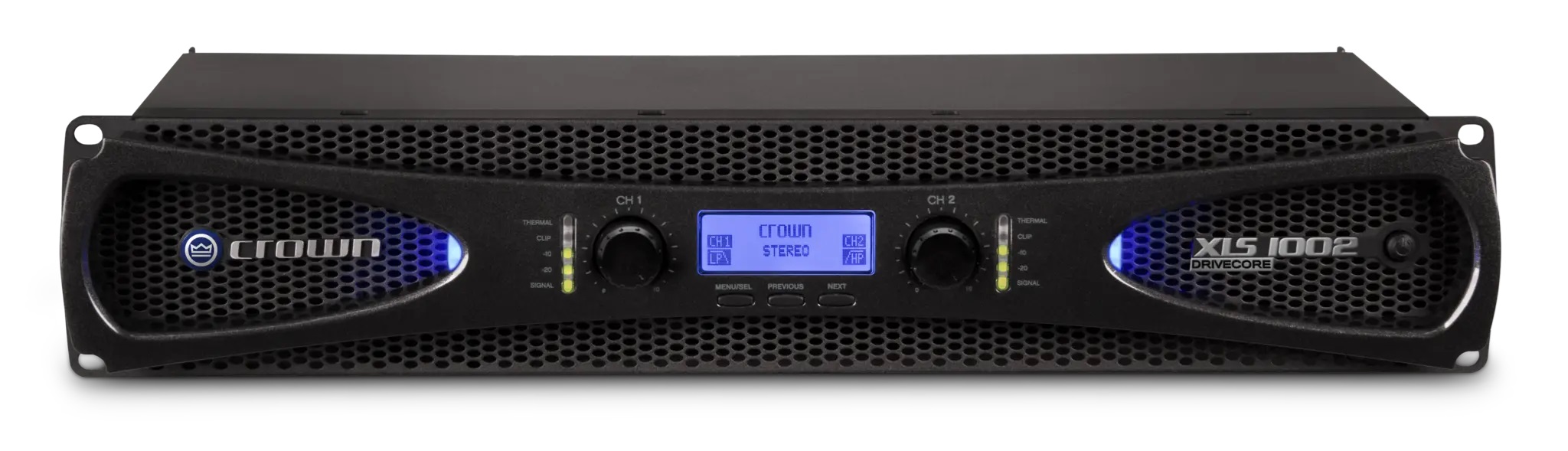

Crown XLS 1002
The Crown XLS 1002 is a professional two-channel power amplifier built on Crown’s DriveCore Class D platform. It is designed for high efficiency, low heat generation, and reliable long-term operation. The unit combines compact rackmount design with strong output capability for portable and fixed sound systems.
Power Output and Performance
This amplifier delivers around 350 watts per channel at 4 ohms, with additional flexibility for different impedance loads. It also supports bridged mode for significantly higher output when required. The sound profile is engineered to remain clean and stable even under demanding conditions.
DSP and Signal Processing
The XLS 1002 includes built-in DSP features such as crossover filtering, band-pass control, and Peakx limiters. These tools help protect connected speakers while maintaining consistent audio quality. The processing options allow precise tuning for different system configurations.

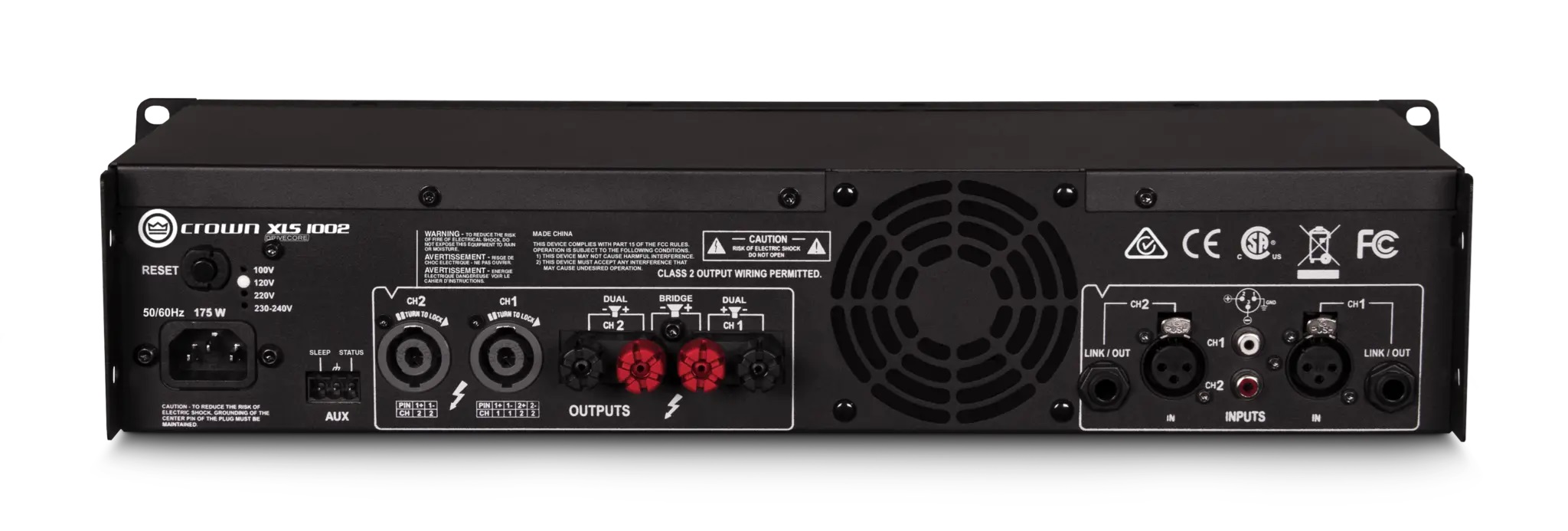

Connectivity and Control
It offers multiple input options including XLR, 1/4-inch, and RCA, making it compatible with both professional and consumer audio setups. Adjustable input sensitivity and a clear LCD interface provide practical control over system behavior. Additional functions like security lock and sleep mode enhance usability in professional environments.
Build Quality and Applications
Designed for durability, the amplifier uses efficient cooling and lightweight construction for easy rack integration. It is widely used in live sound, DJ setups, installed PA systems, and subwoofer amplification. Its combination of efficiency and protection features makes it suitable for continuous operation in varied environments.
| Product Name | Crown Audio XLS 1002 DriveCore 2-Channel Class D Power Amplifier 350W @ 4Ω Pro Audio Amplifier |
|---|---|
| Weight | 3.900000 |
| Frequency Response | +0dB, -1dB |
| Signal-to-Noise Ratio | > 97dB (at .775Vrms sensitivity, 6dB lower) |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
