Crown IT5000HD Two-Channel 2500W Version Amplifier
QUICK OVERVIEW
Inside and out, the I-Tech HD is one of the most technologically advanced professional touring amplifiers on the market today. Building on the decades of innovation, invention, and insight Crown is known for, the I-Tech HD features five new patents – three on the power supply alone – giving you an amp that goes well beyond the expected.
PRODUCT OVERVIEW

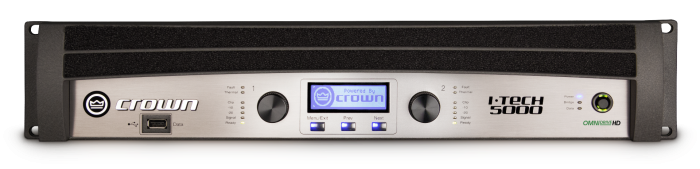

Crown IT5000HD Two-Channel 2500W Version Amplifier
Power your stage with the technologically advanced Crown I-Tech series I-T5000 HD power amplifier. The I-T5000 HD is a professional-level touring amplifier designed for the rigors of the road. This amp is so groundbreaking that its technology features five new patents, three of which are on the power supply. Crown's new BSS OMNIDRIVEHD processing engine is at the heart of the I-Tech HD amps. With four times the processing power, the Crown I-T5000HD features Linear Phase FIR filters and LevelMAX limiters for precise and crystal-clear sound.
A wide selection of inputs gives you the power and flexibility to get your signal where you need. Dual analog XLR inputs are perfect for taking a feed from an analog mixer and an AES/EBU input for digital mixer signals. Standard speakON and binding post output jacks are ready to connect to your favorite speakers.Whether you're at a permanent-installation facility or on tour, the Crown I-T5000 HD power amp has the functionality you need. The built-in EtherCon Ethernet connector lets you take control of an entire network of amps and tweak them to your hearts content.Once you have your Crown I-T5000 HD power amp set up and presets dialed in, you can copy them to a USB drive, via the front-panel USB port, and transfer them to other I-Tech series amps. This saves you the time and hassle of having to set up each new amp to your perfect settings.
Features
Innovation
• BSS OMNIDRIVEHD™ DSP processing with IIR filters and linear phase FIR filters
• Covered by five patents
• Fan has true tachometer feedback for fan fault protection and precise control over thermal performance, so the amp runs longer and harder than the competition
• Includes SLM (Sweep Load Monitoring) with system-level diagnostics
Performance
• Ultra smooth processing by onboard high-definition BSS OMNIDRIVEHD DSP with 24-bit, 192kHz Cirrus Logic SHARC A/D and D/A converters
• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
• True Ethernet backbone – fast, reliable and scalable
• High common-mode rejection eliminates hum and RFI on input cables
• 6th-generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
Versatility
• Global Power Supply; universal AC input accepts100-240VAC, 50/60Hz (±15%)
• Front-panel USB connector transfers presets to/from a USB drive to the amp’s DSP
• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
• The only product available with analog, AES/EBU, CobraNet®, HiQnet™and Ethernet connectivity
• User -definable front panel security feature
• The only tour sound amplifier that provides inputs routable to any output (analog, AES, or CobraNet)
Power
• Professional-grade connectors for all inputs and outputs
• Full power-supply voltage is always available, allowing instantaneous power on demand
• Quality-graded components let you safely drive the amplifier harder
• More total capacitance provides tremendous energy reserves for power bursts
• 200Vrms peak output voltage provides clean transient peaks
| Product Name | Crown IT5000HD Two-Channel 2500W Version Amplifier |
|---|---|
| Weight | 12.700586 |
| Frequency Response | ± 0.25dB |
| Dimensions | W-84 x H-483 x D-431mm |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
