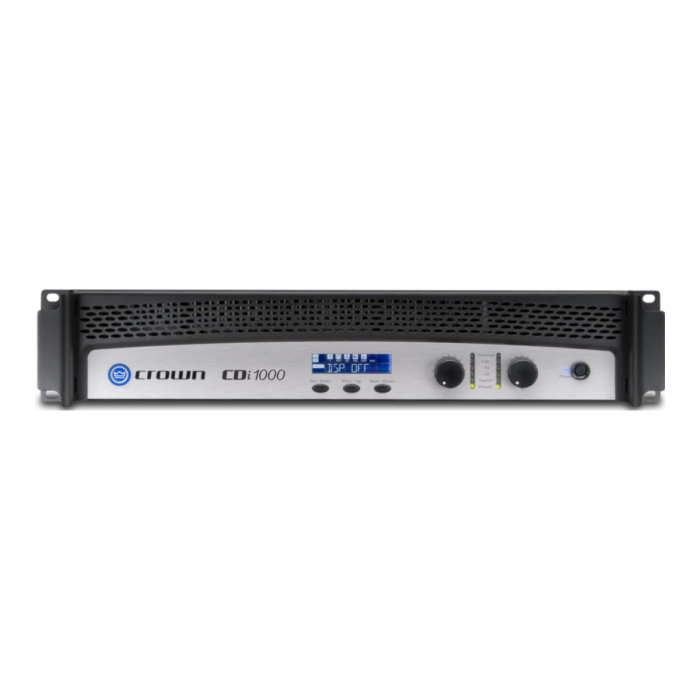

Crown NCDI1000E60 Two-channel, 500W Power Amplifier
Key Features of the Crown NCDI1000E60
-
➤ 500W per channel at 4Ω for powerful performance.
-
➤ Supports 2Ω–8Ω and 70V/140V systems.
-
➤ Built-in DSP with EQ, crossover, and limiter functions.
-
➤ Lightweight 2-RU design with universal power supply.
-
➤ Advanced protection circuits ensure reliable operation.
PRODUCT OVERVIEW
The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight, and offer unmatched value in their class.
Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs. Switch-mode universal power supply. Intuitive front-panel LCD screen for quick, easy configuration. Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting. Up to 20 user defined DSP presets are available.
The 2 RU rack-mountable Crown Audio CDi 1000 is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 1000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 500W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.
Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 1000 also has integrated DSP presets for adjustable crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information. The removable Euroblock inputs and barrier strip outputs accommodate a variety of system setups.
Rugged and lightweight steel construction, occupies 2 RU in any standard equipment rack Operates in dual or bridge-mono modes Wide range of speaker impedances and outputs, including 2/4/8 Ohms and 70V or 140V Excellent sound reproduction with low distortion Advanced protection circuitry protects against overheating, overloads, and shorts Integrated DSP presets for crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer Switch-mode universal power supply Backlit LCD shows relevant information
| Product Name | Crown NCDI1000E60 Two-channel, 500W Power Amplifier |
|---|---|
| Weight | 9.979032 |
| Frequency Response | + 0 dB, -1 dB |
| Dimensions | 3.5" x 19" x 12.25" |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
