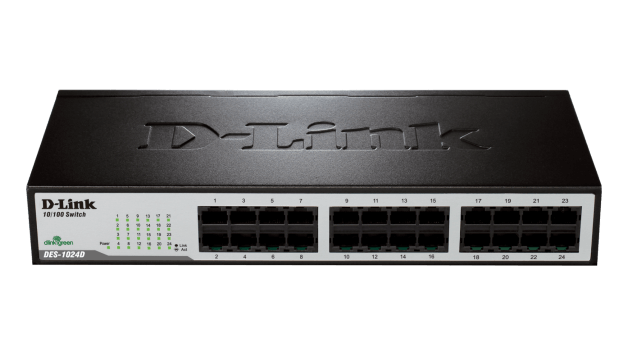

D-Link DES-1024D 24-Port Fast Ethernet Unmanaged Desktop/Rackmount Network Switch

Actual Stock Can Be Confirmed After Placing the Order.
SKU
DES-1024D
AED 226 AED 215
Price Match Request
WhatsApp Facebook
Pay 4 interest-free payments of AED 421.00.Learn more
  • Main type of ports
    • 100BASE-TX Fast Ethernet
  • Number of ports
    • 16 to 28 ports
  • Switching capacity
    • 4.8 Gbps
  • Form Factor
    • Desktop
    • Rackmountable
  • Housing
    • Metal
  • Fanless
  • MAC address
    • 8K
  • Number of QoS queues per port
    • 4
  • D-Link Green
  • 802.3az Energy-Efficient Ethernet support

Ports

  • 24-10/100Mbps RJ-45 Auto-sensing ports

Standards

  • IEEE 802.3 Ethernet
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS Support (2 Queues)

Network Interface

  • RJ-45: 100ohm, UTP/STP cable
  • 10/100Base – EIA/TIA Categories 3 or 5 cable

Switching Method

  • Store – and – forward

Switch Fabric

  • 4.8Gbps

MAC Address Table

  • 8,000 entries

Filtering/ Forwarding/LearningRates

  •  Full line rate/full wire speed

Physical Specifications

  • Dimensions (W x H x D):11.02 x 7.09 x 1.73 in.(280 x 180 x 44 mm)
  • Weight: 4.19 lbs. (1.9 kg.)
  • Metal Housing
  • Side Air Vents with Fanless Air-Cooling Design

LEDs

  • 100Mbps – one per port
  • 10Mbps – one per port
  • Power
  • Link/Act (activity)

Temperature

  • Operating: 32°-104°F (0-40°C)
  • Storage: 14°-158°F (-10°-70°C)

Humidity, non-condensing

  • Operating: 5% to 90% RH
  • Storage: 5% to 90% RH

Power Requirements Universal

  • AC input: 100 to 240 VAC, 50 to 60 Hz, Internal Universal Power Supply

EMC/ Safety Compliances Emissions

  • CE Mark Class A
  • FCC Class A
  • VCCI-A
  • Safety
  • UL

Warranty

  • Limited Lifetime

Ordering Information

DES-1024D

  • Unmanaged Layer 2 Switch with (24) 10/100BASE-T Ports
More Information
Product Name D-Link DES-1024D 24-Port Fast Ethernet Unmanaged Desktop/Rackmount Network Switch
