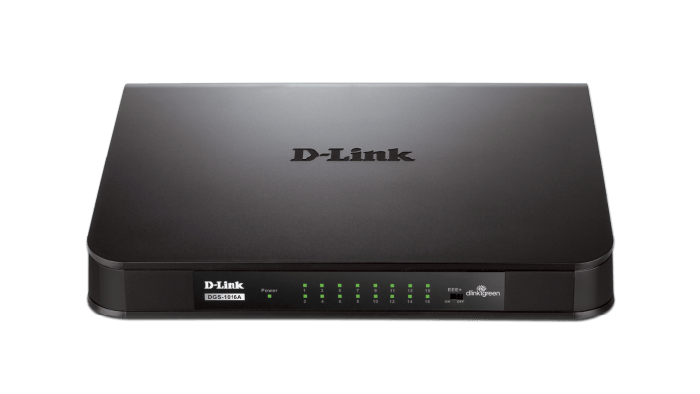

D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch

Actual Stock Can Be Confirmed After Placing the Order.
SKU
DGS-1016A
AED 372 AED 354
Price Match Request
WhatsApp Facebook
Pay 4 interest-free payments of AED 421.00.Learn more
  • Ports
    • 16 ports
  • IEEE 802.3x Flow Control
  • Full Duplex Operation
  • Plug-and-Play
  • Jumbo Frame Support
  • Green Technology Energy Savings
    • Eco-friendly technology, reduced power consumption
  • Perfect for Small to Medium Businesses
  • IEEE 802.3ab 1000Base-T Compliant
  • Jumbo Frame
    • 9,216 Bytes
  • MAC Address Table Size
    • MAC Address Table Size 8K
  • Limited Lifetime Warranty

Number of Ports

  • Sixteen 10/100/1000 Gigabit ports

Switching Capacity

  • 32Gbps

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)

Data Transfer Rates

Ethernet:

  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)

Fast Ethernet:

  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Gigabit Ethernet:

  • 2000 Mbps (full duplex)

Network Cables

10BASE-T:

  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T

  • UTP CAT 5/5e (100m max)
  • EIA/TIA-568 100-ohm STP (100 m max)

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports

LED Indicators

  • Per port: Link/Activity/Speed
  • Per device: Power

Transmission Method

  • Store-and-forward

MAC Address Table

  • 8k

MAC Address Learning

  • Automatic update

MAC Address Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

  • 2Mbits

Jumbo Frames

  • 9216 Bytes

D-Link Green

  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving
  • RoHS Compliance

Power Inputs

  • Switching 12V/1A level V power adapter

Power Consumption

  • Power On (Standby): AC input: 3.12 Watts
  • Power Max.: AC input: 7.89 Watts

Heat Dissipation

  • Power On (Standby): AC input: 10.65 BTU/h
  • Power Max.: AC input: 26.92 BTU/h

MTBF

  • 527,308 hours

Operating Temperature

  • 32 to 104 °F (0 to 40 °C)

Storage Temperature

  • 14 to 158 °F (-10 to 70 °C)

Operating Humidity

  • 10% to 90% non-condensing

Storage Humidity

  • 5% to 90% non-condensing

Dimensions

  • 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm)

Weight

  • 1.28 lbs. (580g)

Certifications

  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • uCL
  • CB
  • VCCI Class A
  • C-Tick Class A

Order Information

  • 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm)
More Information
Product Name D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch
