MAC Address Table Size

• 8K

Switch Fabric

• 32Gbps Forwarding Capacity

Transmission Method

• Store-and-Forward

Diagnostic LEDs

• Per Unit: Power
• Per Port: Activity/Link, Speed

Packet Buffer Memory

• On ship: 512KBytes Buffer Memory per Device

Power Consumption

• Power On (Stand by): 3.8 Watts
• Max: 11.7 Watts

QoS

• 802.1p (4 Queues)

Acoustics

• 0 db

MTBF

• 828,109 Hours

Interface Options

RJ-45

• 10BASE-T, 100BASE-TX & 1000BASE-T

Network Protocol and Standards

IEEE

• 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p Priority Queuing

Electrical & Emissions

Emissions

• FCC Class A
• CE Class A
• ICES-003 Class A
• VCCI Class A
• C-Tick Class A

Power Supply

• 100-240VAC, 50/60 Hz Internal Universal Power

Environmental

• RoHS Compliant

Safety and Environmental

Safety

• cUL
• CB

Temperature

• Operating: 32° to 104°F (0° to 40°C)
• Storage: 14° to 131°F (-10° to 55°C)

Humidity

• Operating: 5% to 95% RH (Non-Condensing)

Physical Specifications

Dimensions (W x D x H)

• 11in x 7.1in x 1.75in (281.9mm x 180.3mm x 44.5mm)

Weight

• 2.97 lbs (1.35kg)

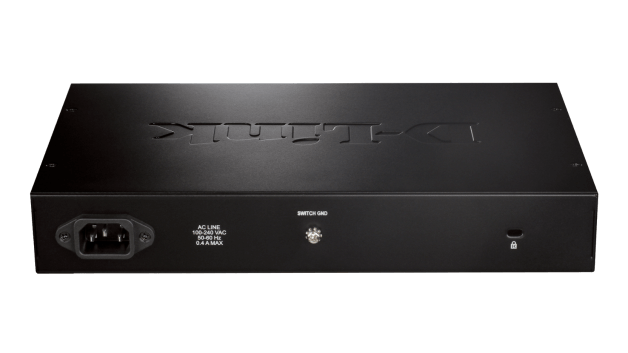

DGS-1016D

• 16-Port Gigabit Switch, Desktop/Rackmount, D-Link Green
