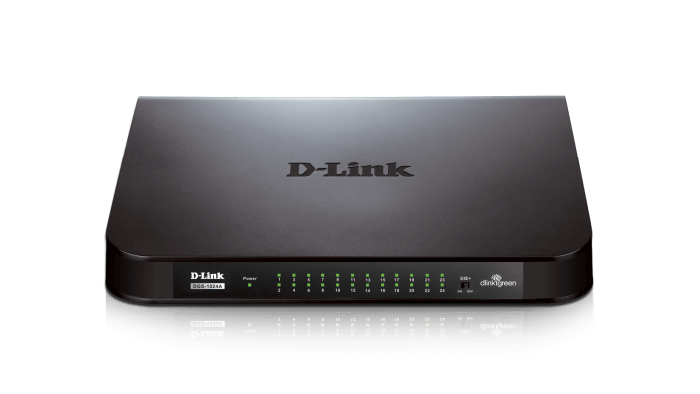

D-Link DGS-1024A 24-Port Unmanaged Gigabit Switch
The 24-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Number of Ports
- Twenty-four 10/100/1000 Gigabit ports
Switching Capacity
- 48Gbps
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy Efficient Ethernet (EEE)
Data Transfer Rates
Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Gigabit Ethernet:
- 2000 Mbps (full duplex)
Network Cables
10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max)
- EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T
- UTP CAT 5/5e (100m max)
- EIA/TIA-568 100-ohm STP (100 m max)
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Transmission Method
- Store-and-forward
MAC Address Table
- 16k
MAC Address Learning
- Automatic update
MAC Address Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
- 3.5Mbits
Jumbo Frames
- 9216 Bytes
D-Link Green
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Link status detection power saving
- Cable length detection power saving
- RoHS Compliance
Power Inputs
- Switching 12V/1.5A level V power adapter
Power Consumption
- Power On (Standby): AC input: 6.86 Watts
- Power Max.: AC input: 14.17 Watts
Heat Dissipation
- Power On (Standby): AC input: 23.41 BTU/h
- Power Max.: AC input: 48.35 BTU/h
MTBF
- 401,516 hours
Operating Temperature
- 32 to 104 °F (0 to 40 °C)
Storage Temperature
- 14 to 158 °F (-10 to 70 °C)
Operating Humidity
- 10% to 90% non-condensing
Storage Humidity
- 5% to 90% non-condensing
Dimensions
- 10.1 x 7.0 x 1.8 inches (257 x 178 x 46 mm)
Weight
- 1.68 lbs. (760g)
Certifications
- FCC Class A
- ICES-003 Class A
- CE Class A
- uCL
- CB
- VCCI Class A
- C-Tick Class A
Warranty
- Limited Lifetime
Order Information
10.1 x 7.0 x 1.8 inches (257 x 178 x 46 mm)
| Product Name | D-Link DGS-1024A 24-Port Unmanaged Gigabit Switch |
|---|
