PRODUCT OVERVIEW

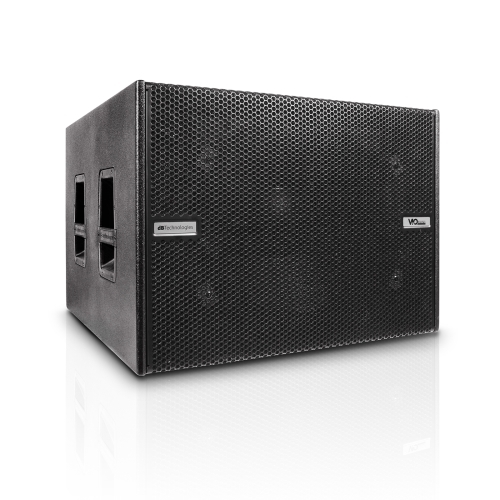

The VIO S118R subwoofer equipped with a 18" bass reflex woofer is designed to complement the VIO line array systems in the low frequencies.

The system’s acoustic engine is driven by a Digipro G4® 1600W Class D amplifier, equipped with PFC (Power Factor Correction) and SMPS which make the cabinet highly resistant to line voltage fluctuations. Digipro G4 preamplifier features a slot module, equipped with a RDNet expansion card as default, allowing system monitoring and control via Aurora Net. Furthermore, the system is ready for Audinate Dante™ Expansion Card allowing integration in a digital audio network.

The amplifier also allows users to run a real-time test on electronics and transducers, both remotely via Aurora Net, or directly on the amplifier module. VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary. The on-board cardioid preset processes the backward sub in inverted stack cardioid configurations, to achieve the best possible cancellation on the rear side automatically.

With a Digipro G4® 1600W Class D amplifier driving its acoustic engine, the VI-S118R bass reflex subwoofer completes the impressive low-end VIO line array system. Digipro G4® is equipped the Power Factor Correction (PFC) and SMPS for higher resistance to line voltage fluctuations, as well a slot module with an RDNet expansion card to monitor and control the system via Aurora Net. This slot is also capable of digital audio network integration via Audinate Dante™ Expansion Card (sold separately).

Run real-time tests on electronics and transducers directly on the amp module or remotely with Aurora Net. VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary. Achieve the best possible cancellation on the rear side automatically with the on-board cardioid preset that processes the backward sub in inverted stack cardioid configurations for advanced settings.

Features:

• ACTIVE 1X18” BASS REFLEX SUBWOOFER
• 139 dB MAX SPL
• LATEST GENERATION DIGIPRO G4 AMP TECHNOLOGY
• 1600 W RMS SMPS AMPLIFIER WITH PFC
• SYSTEM AUTO-TEST FOR QUICK DIAGNOSTICS
• DESIGNED FOR MAXIMUM EFFICIENCY IN THE LOWER END
• ON BOARD DELAY FOR QUICK TIME ALIGNMENT OPERATIONS
• ON BOARD CARDIOID ARRAY CONFIGURATION PRESET
• MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS (RDNET CARD INSTALLED)
