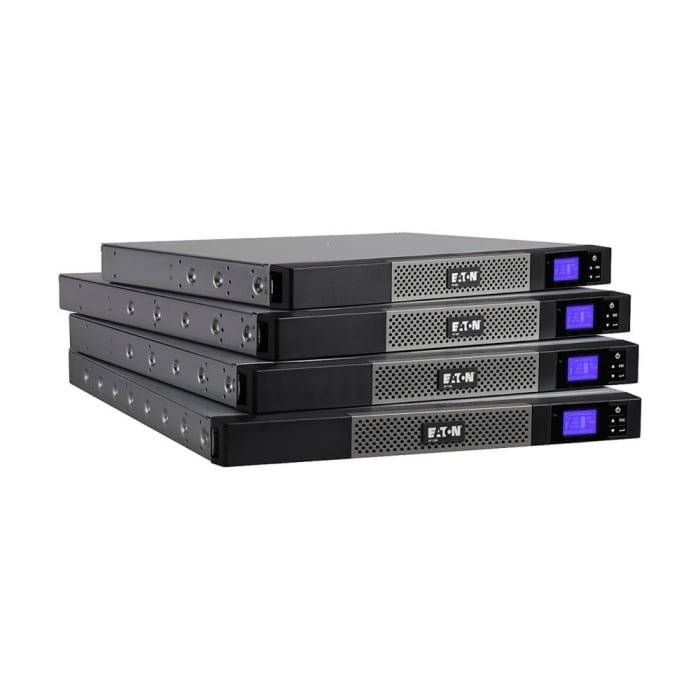

Eaton 5P 650iR 650VA/420W Line-Interactive High Frequency Rack UPS

Actual Stock Can Be Confirmed After Placing the Order.
Price Match Request

Please call at +971-4-3360300, Email Us for Special Pricing!

Pay 4 interest-free payments of AED 421.00.Learn more

We provide installation services within UAE. Please contact +971-4-3060300 or Email us to book site survey.

Introducing the Eaton 5P UPS. Energy efficient, virtualisation-ready with an advanced graphical LCD. In today’s complex IT environments, it’s vital you have access to key UPS status information, and can optimise energy efficiency and performance to reduce your costs. The Eaton 5P and 5PX set new standards in server, storage and networking power protection, offering a unique combination of features that make the most of today’s technology and help you to stay ahead.

Eaton 5P and 5PX UPS key benefits,

• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (inseven languages). Enhanced configuration capabilities arealso available with easy-to-use navigation keys.
• Meters energy consumption and provides kWh values through the LCD and our power management software
• Up to 98% energy efficiency with the 5P and up to 99% with the 5PX, significantly reducing cooling and utility costs The 5P and 5PX give optimum real-time visibility into power consumption to support better decision-making, improve system uptime and enhance overall business performance

Features that set the Eaton 5P are,

• Pure sinewave output: When operating in battery mode the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
• Unmatched energy density with up to 1.1KW in 1U and 2.7kW in 2U.
• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices
• Serial, USB and relay connectivity, plus an extra slot for an optional communication card
• Intelligent Power® Software Suite compatible with all major OS including virtualisation software such as VMware and Hyper-V is included with each UPS
• Eaton ABM® battery management technology for longer battery life
• Batteries can be hot-swapped without ever having to shut down connected equipment. With an optional, hotswap maintenance bypass module, you can even replace the entire UPS.
• 3-year warranty on electronics, 2 years on batteries.

More Information
Product Name Eaton 5P 650iR 650VA/420W Line-Interactive High Frequency Rack UPS
Output Power 0.65kVA/ 650VA
Output Voltage 240 Volts
Input Frequency 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Input Voltage Range 160V-294V (adjustable to 150V-294V)
Interface Ports DB-9 RS-232, LCD, USB
Control Panel 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini terminal block for remote ON/OFF and Remote Power Off
Battery Type -
Recharge Time -
Audible Alarm Less than 40 dBA
Cord Length -
Approvals CE, CB report, TÜV, IEC/EN 62040-2, IEC/EN 62040-3 (performance), IEC/EN 62040-1, UL 1778
Dimensions 43.2 x 438 x 364
Shipping Dimensions -
Weight 3.90 Kg
Shipping Weight -
Manufacturer Eaton
Color Silver
